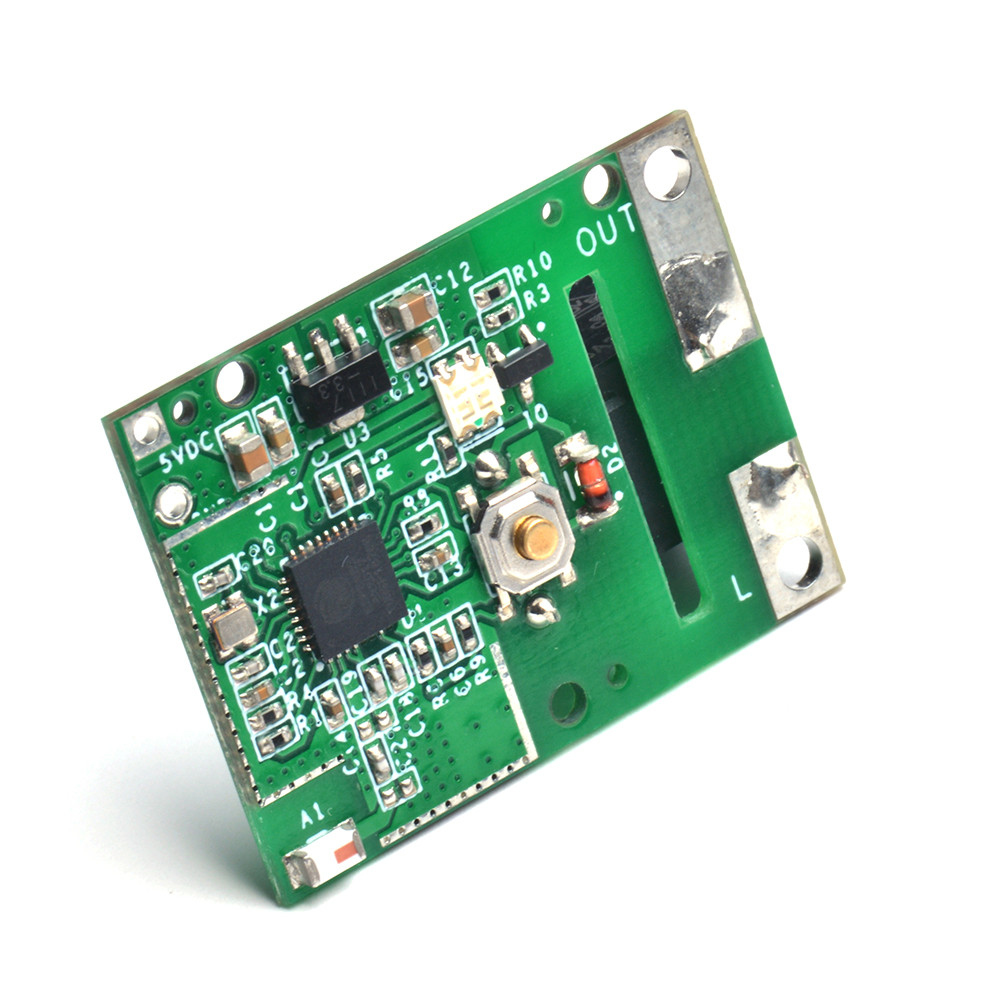

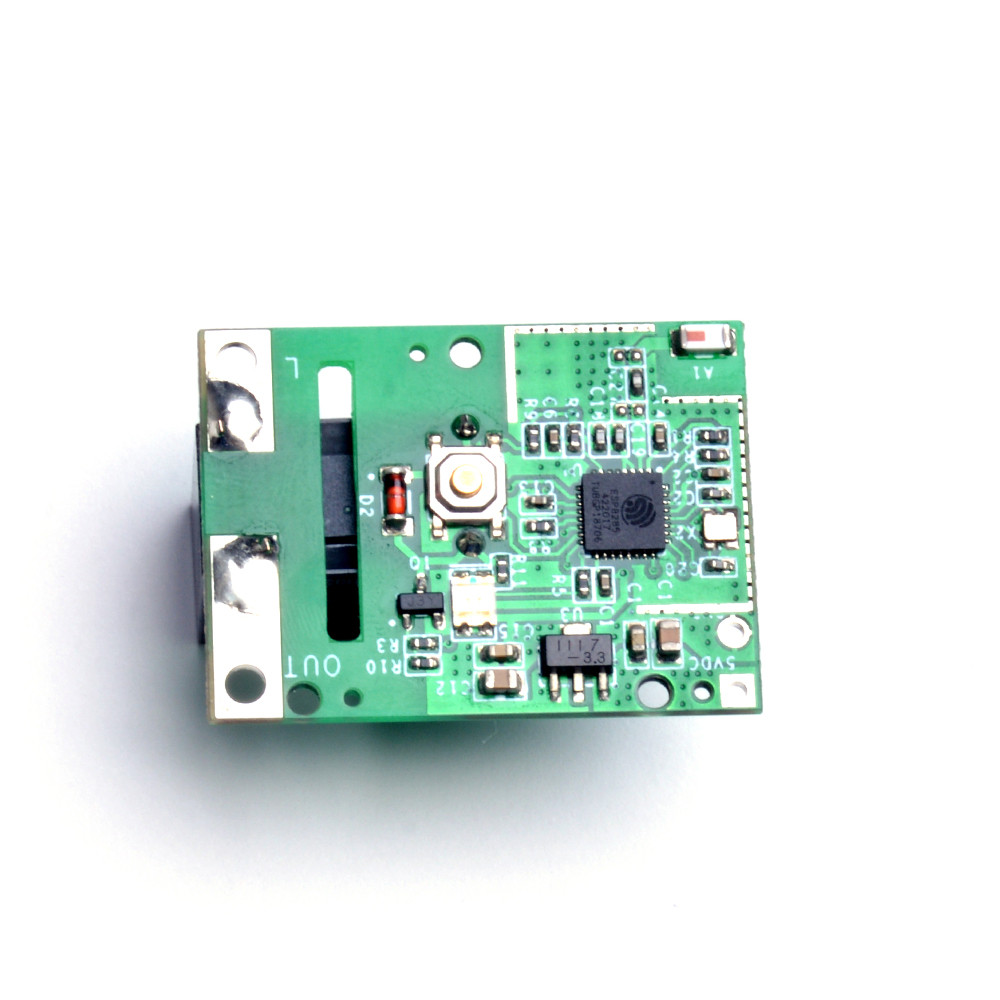

Sonoff RE5V1C - a 5V WiFi smart switch relay module with momentary switch feature

Sonoff RE5V1C is 5V WiFi relay module, with momentary switch (also called as inching by Sonoff). Just like a standard SONOFF switch, you can use it to work with eWelink app, Amazon Alexa, Google Home, IFTTT..etc. Ideal solution for remote control of motorized gates, garage doors, or other electric devices/circuits.

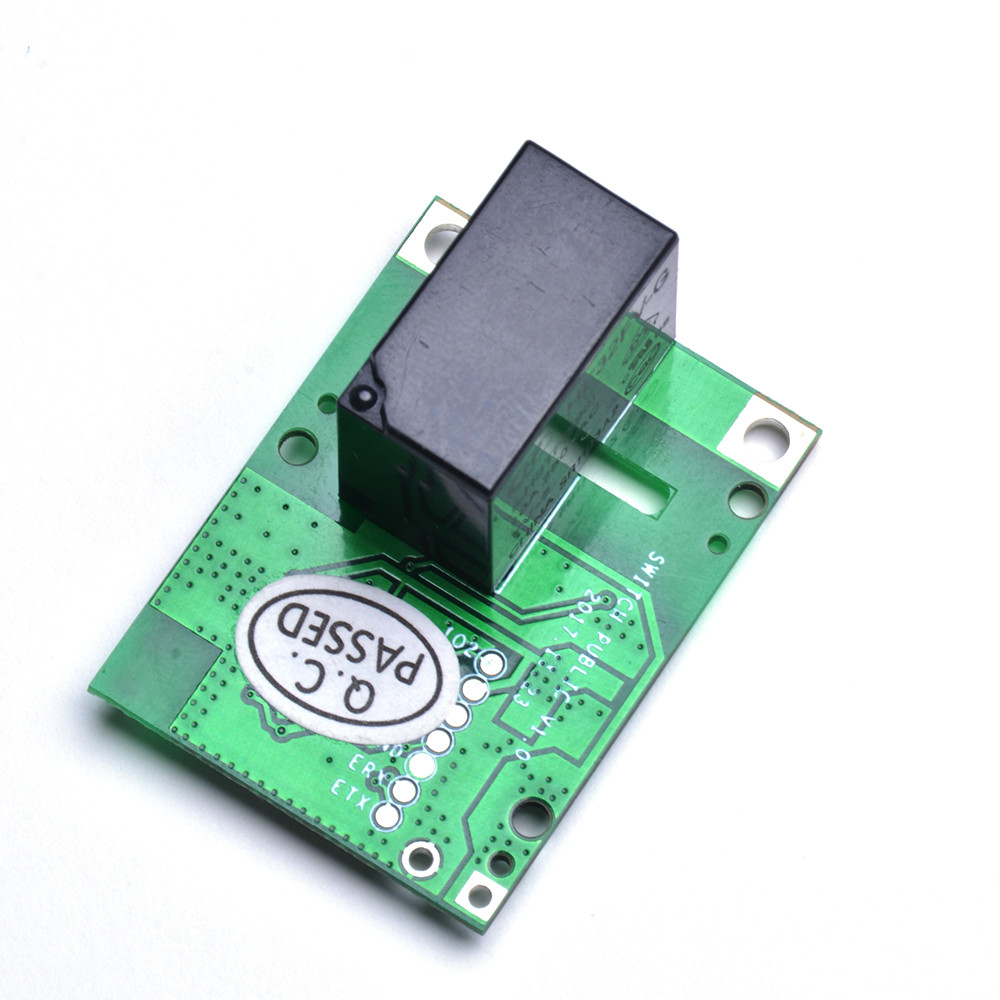

 The RE5V1C WiFi smart relay is different from other Sonoff relays (and SmartWise 5V-32V relays). To connect wires you have to solder them into the relay.

The 5V DC input, nano size and dry-contact output makes it different from traditional SONOFF product, this product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately.

The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:

• Remote turn on/off
• Timing Schedules
• Device Sharing
• Group Management
• Works with Amazon Echo, Echo Dot, Amazon Tap
• Works with Google Home, Google Nest
• Works with IFTTT

There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.

When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device.

Specification

• Power Supply: 5V DC
• Dry contact output
• Max Current: 10A
• Humidity: 5%-90%RH, Non-condensing
• Operating Temperature: 0ºC-40ºC(32°F-104°F)
• Nano size: 34.5*25*19mm

Features:

• Nano Size
• Dry Contact Output
• Low Power Supply - 5VDC low voltage input
• LAN Control – Turn on/off the device even when WiFi has no Internet access
• App Support – Free iOS and Android mobile App eWeLink
• Remote ON/OFF–Turn electrical devices on/off from anywhere
• Sync Status–Real-time device status provided to App
• Timing–Set scheduled/countdown timers to turn on/off at specified time, supports max 8 enabled scheduled/countdown/loop timers.
• Share Control– Control your smart home together with your family
• Scene–Turn on/off a gang of devices with one tap
• Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
• Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

Works With Amazon Alexa

This product works with Amazon Alexa. You can ask Alexa to control the device with the following voice commands. Please note that only US/UK English and German voice commands are supported now.

Try out these phrases ( {deviceName} should be the name of your device):

Alexa, turn on {deviceName}

Alexa, turn off {deviceName}

Alexa, turn {deviceName} off

Alexa, turn {deviceName} on

Alexa, schalte Gerätename ein

Alexa, schalte Gerätename aus
