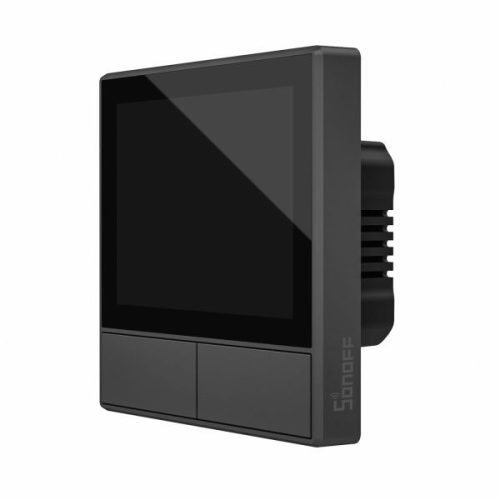

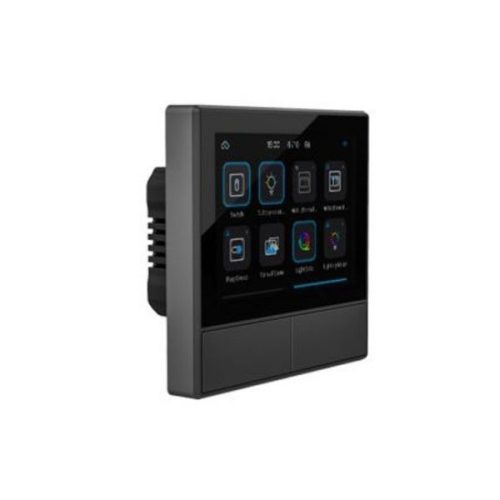

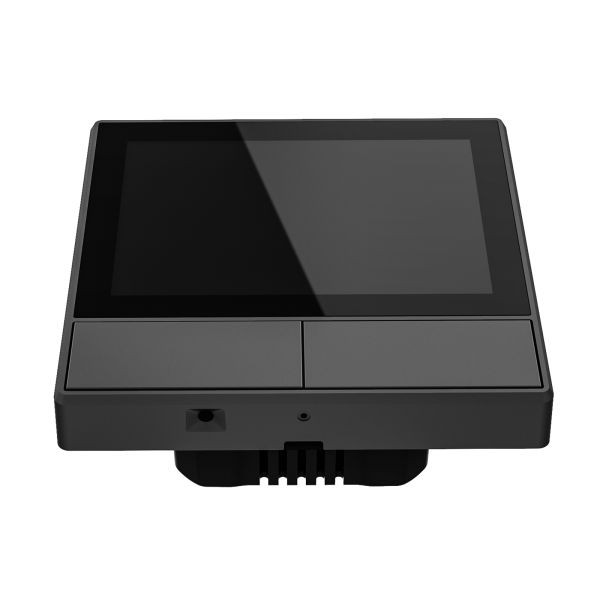

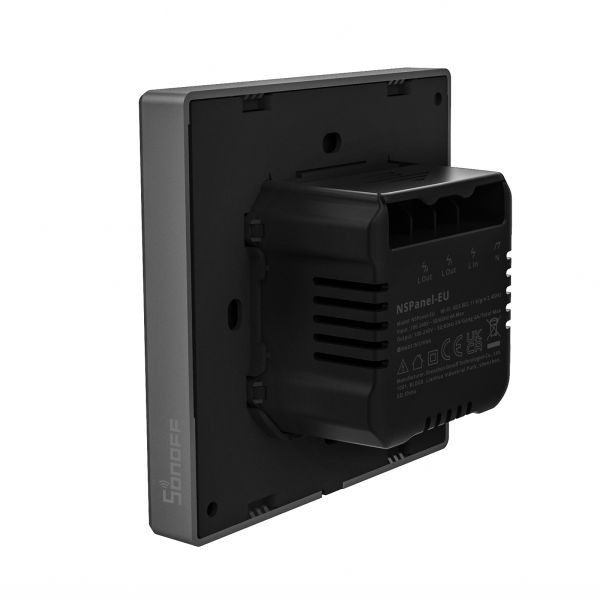

Sonoff NSPanel 2-gang smart WiFi wall switch with LED panel, thermostat and smart scene switch feature

Sonoff NSPanel is a revolutionary new product, released by Sonoff, the leading manufacturer for eWeLink smart home platform. The device includes a 2-gang 100V-230V AC switch with 2 physical switch buttons, a touch LED screen showing local weather data and room temparature (coming from the built-in temperature sensor), capability to remotely switching other eWeLink devices and Scenes, as well as, a simple thermostat feature to control other eWeLink device on/off based on the measured temperature.

According to Sonoff announcement, it will be compatible and it also can be reflashed with Tasmota firmware to make it compatible with open source home automation systems just as Home Assistant.

Sonoff NSPanel Feature highlights:

【All in One Control Center】 NSPanel can help you achieve the use of specific scene modes in different scenes with one tap. In addition to the scenario-based control, it is compatible with almost all sonoff devices and the central control function of the control group.
【Integrated HMI Panel 】SONOFF NSPanel centrally integrates HMI control, smart temperature control, and smart wall switch, turning your home into a convenient and smart place.
【Home Automation Thermostat】With a built-in powerful thermostat, you can set different indoor temperatures for different periods of time, and NSPanel will automatically trigger the heating or cooling equipment according to your setting conditions to keep the room at a comfortable temperature.
【Multiple Ways to Control】You can use the dual-channel switches, touchscreen, and eWeLink App to control SONOFF NSPanel; Besides, SONOFF NSPanel supports Alexa, Alice, Google Assistant, and even Siri Shortcuts, you can control your home appliances with simple voice control.
【Know the Time & Weather】 With built-in sensors and WiFi connection, NSPanel smart scene wall switch can real-time updates weather, indoor temperature, outdoor temperature, time, and date.

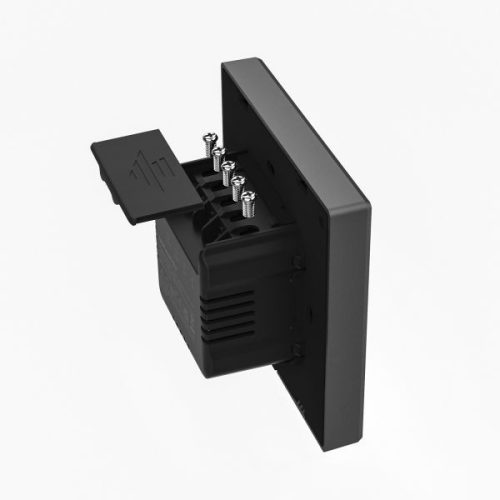

Sonoff NSPanel installation, wiring:

Sonoff NSPanel product features:

• Two physical button switch - switch directly the 2 wired gangs
• Dimension meets EU standards 86x86mm front panel meets EU standard, 42mm depth
• It's a WiFi only version, there is no 433MHz-es radio-control support, so two-way switching with RF switches is not possible.
• Remote ON / OFF – Anytime, anywhere, from now on you can turn all lights on and off remotely
• Mobil App support – Free iOS and Android mobil App: eWeLink
• Sync status – Check actual switch status (turned ON or OFF) with the mobile App
• Timer – Various of timer functions: single time, scheduled turn on/off, countdown/timer, loop.
• Share control – Control the device together with your family
• Scene – Turn ON / OFF a gang of devices with one tap
• Smart scene – Triggered on/off by temp, hum or other environmental conditions from the sensor
• Compatibility - Works perfectly with Amazon Alexa, Google Assistant, IFTTT and Google Nest
• Thermostat feature - it can turn on/off other eWeLink devices based on the measured temperature
• Smart hub with touch LED panel - can be used to remotely manage other eWeLink devices and also Scenes
• Important: live and neutral wire are both required for this smart switch.
