Shelly Wave Pro Dimmer 1PM

About Z-Wave:

Z-Wave is a smart home protocol specifically designed for communication between smart devices. Thanks to its sub-gigahertz frequency, Z-Wave ensures reliable signal propagation, and its MESH network topology allows devices located farther from the central unit to communicate effectively (devices with continuous power supply function as repeaters).Z-Wave devices require a Z-Wave Hub or USB coordinator (such as one connected to a mini PC) to operate. The Z-Wave protocol uses standardized communication command classes (Command Class), ensuring compatibility between hundreds of brands and thousands of devices. Devices within a Z-Wave network can operate as a unified system. A Z-Wave network can include up to 232 devices.Another advantage of the Z-Wave protocol is its support for association groups, which enable direct assignments between devices within the network. Additionally, Z-Wave devices offer extensive parameter settings at the protocol level, allowing customized configurations to meet even the most sophisticated requirements.

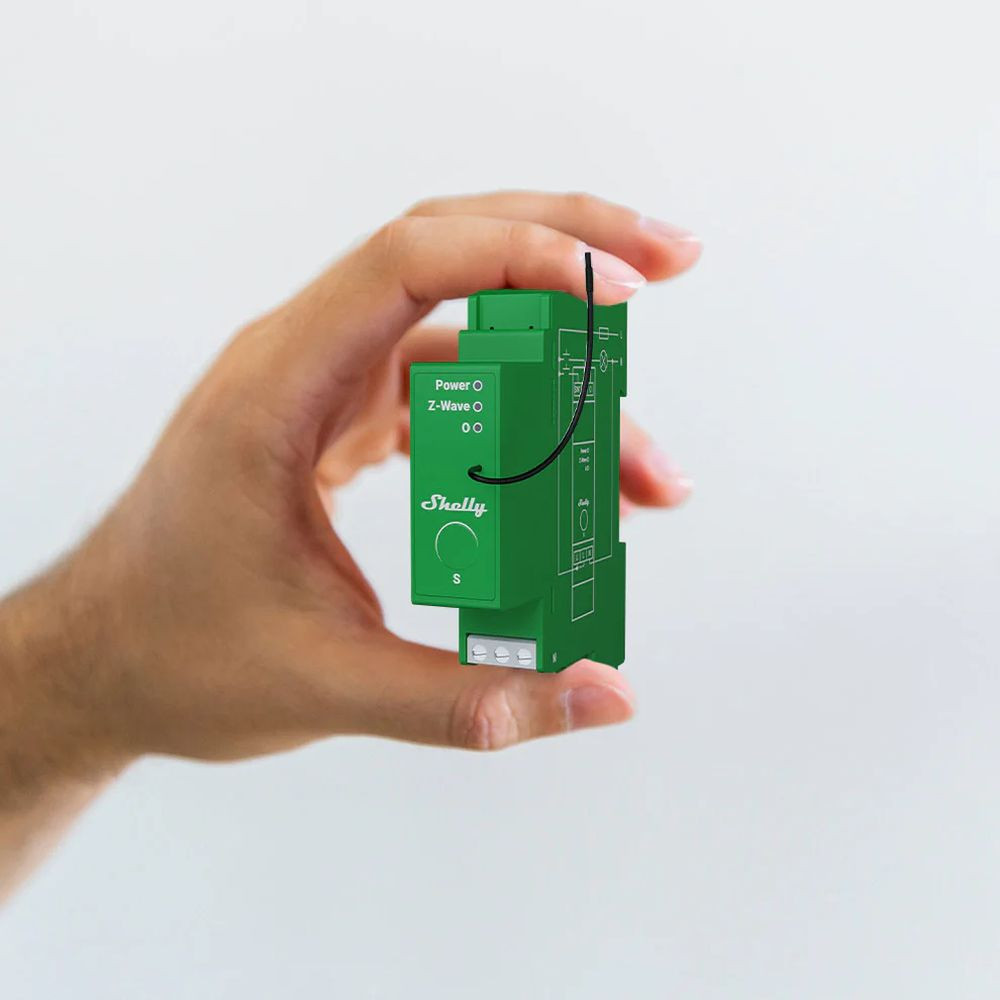

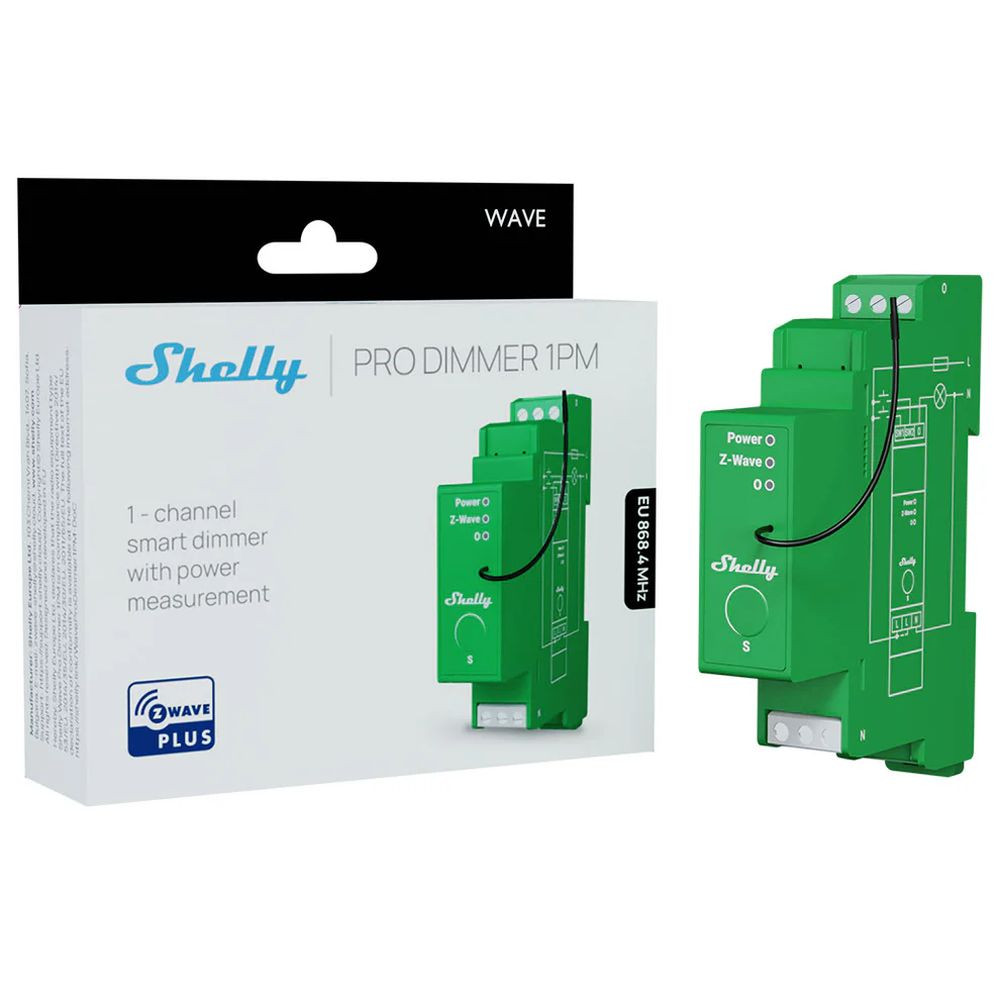

The Shelly Wave Pro Dimmer 1PM is a DIN rail-mounted, single-channel smart dimmer designed for precise lighting brightness control. As a DIN rail-mounted device, it requires a star wiring structure. It can operate independently with a switch or push button or be integrated into Z-Wave-based smart home systems, enabling remote access and control via a smart home hub and an internet connection.

Key Features

• Single-channel dimming control: Enables brightness adjustment for one lighting circuit with a single device.
• Compatibility with switches and push buttons: Can be used with standard wall switches or push buttons.
• Remote access and control: Connects to a Z-Wave hub for monitoring and control from anywhere via an internet connection.
• Safety features: Includes built-in overheating, overcurrent, and overvoltage protection to ensure safe operation.

Inputs

• 2 switch/push button inputs via terminal blocks
• Power supply terminal blocks: N, L

Outputs

• 1 output channel

Connectivity

• Z-Wave (Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security)

Technical Specifications

• Supported light sources:
  LED lights: Up to 200 W
  Incandescent bulbs: Up to 200 W
  Halogen bulbs: Up to 200 W
  Iron core transformers with low-voltage incandescent bulbs: Up to 200 VA
  Dimmable electronic transformers: Up to 200 W
• Power supply: 110 - 240 V AC, 50/60 Hz
• Power consumption: < 0.3 W
• Dimming type: Trailing edge
• Power measurement [W]: Yes
• Maximum output power: 200 W
• Overheating protection: Yes
• Overcurrent protection: Yes
• Overvoltage protection: Yes
• Range: Up to 40 m indoors (depending on local conditions)
• Z-Wave repeater: Yes
• CPU: Z-Wave S800
• Dimensions (H x W x D): 94 x 19 x 69 mm

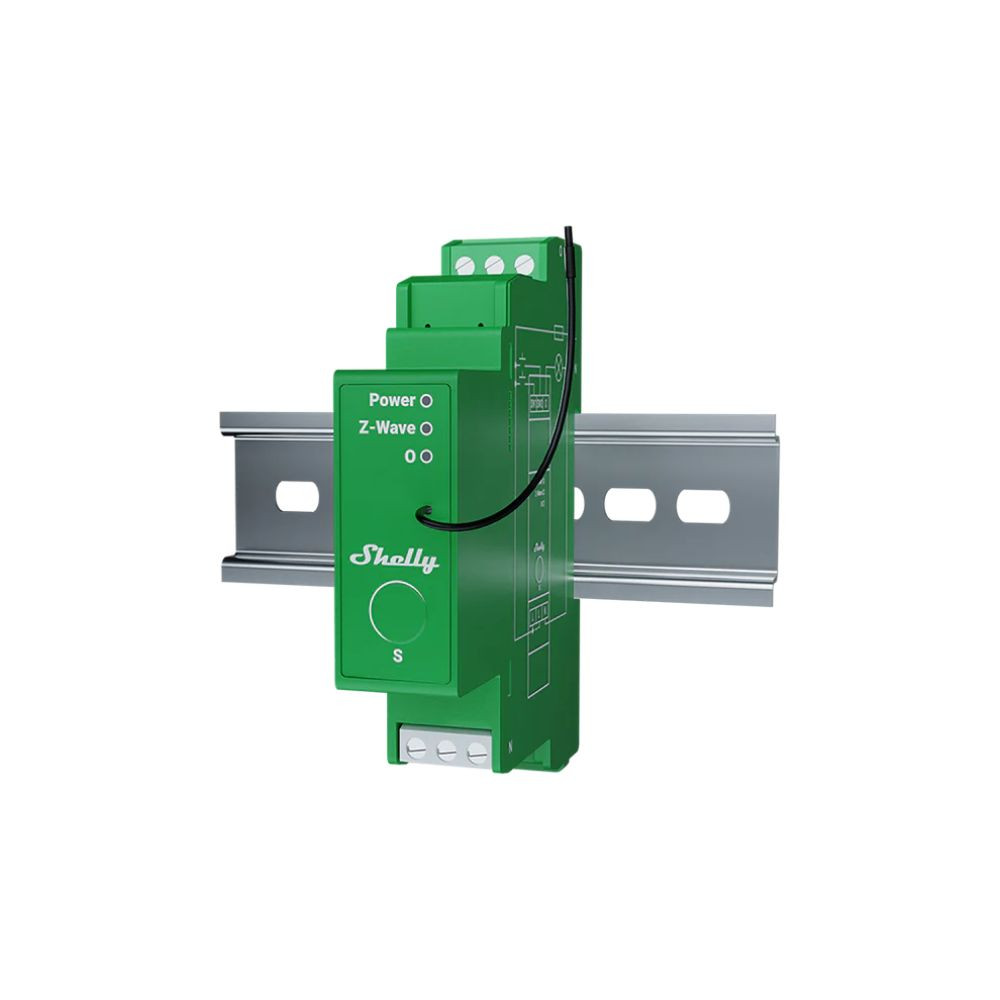

• Mounting: DIN rail
• Enclosure material: Plastic
• Color: Lime
• Ambient temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30% - 70% RH

Integration and Compatibility

Shelly Wave devices are built on Z-Wave communication technology, one of the leading smart home protocols. This ensures compatibility with any gateway that supports the Z-Wave communication protocol. Shelly regularly conducts compatibility tests with various Z-Wave gateways to ensure seamless operation.The Shelly Wave Pro Dimmer 1PM is an ideal choice for smart control and automation of home, office, or industrial lighting systems.
