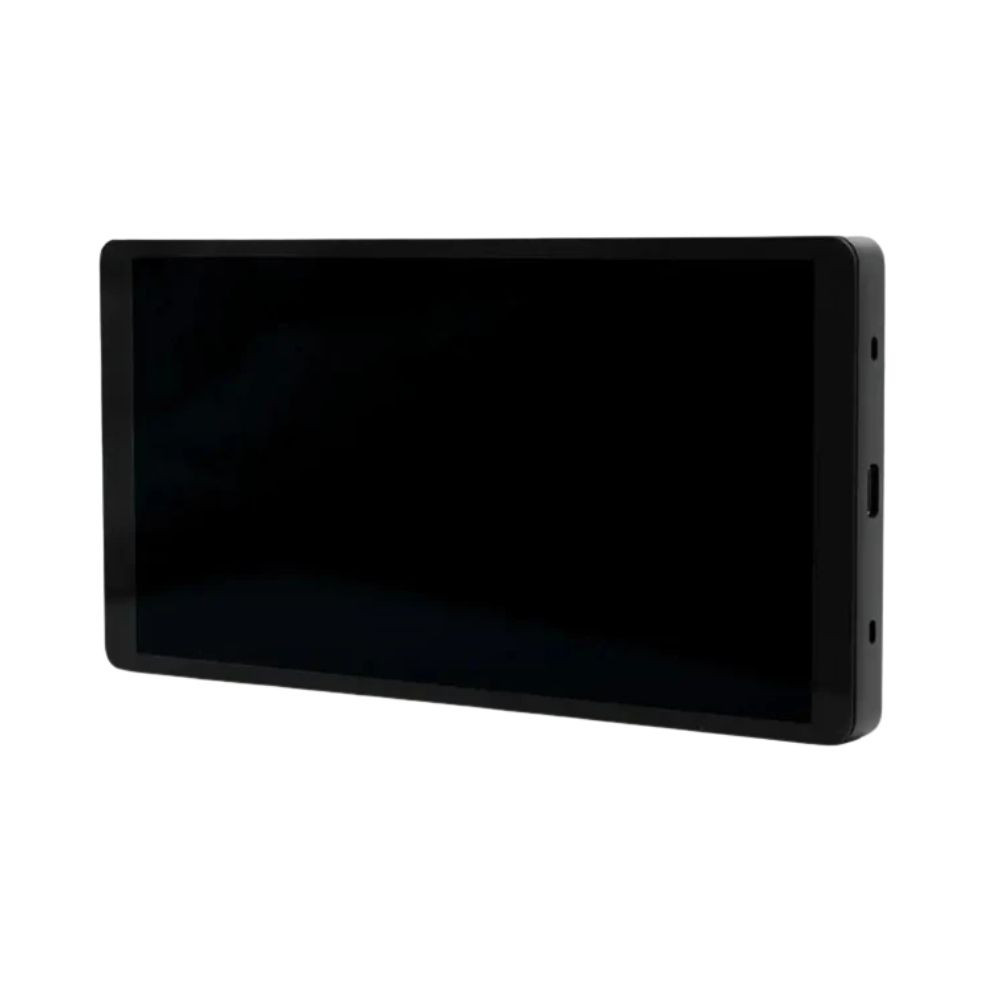

Shelly Wall Display X2i – Wall control panel and light switch, Wi-Fi, Bluetooth, black

The Shelly Wall Display X2i is an intelligent, wall-mounted smart home control panel that provides centralized control for Shelly and compatible devices via a large 6.95″ color touchscreen. The display can be set to either landscape or portrait mode, allowing it to adapt flexibly to room layouts and user preferences.

The Shelly Wall Display X2i features Wi‑Fi 6 and Bluetooth 5.0 connectivity, ensuring fast and stable wireless communication. Thanks to its integrated relay, it can directly control one electrical load (such as lighting). The device also offers real-time energy monitoring, automation capabilities, and customizable control screen layouts. It supports both local and remote control, a fully customizable home screen, and seamless smart home integration.

Built-in LUX light sensor, proximity sensor, and G-sensor enable touch-free interaction, automatic display brightness adjustment, and screen orientation handling. With support for the Shelly Smart Control App, Home Assistant, and other compatible systems, the X2i plays a central role in home automation setups.

About the Shelly Brand

Shelly is a brand of smart home devices manufactured by Shelly Europe, offering simple yet flexible and highly integrable solutions for lighting control, energy and power monitoring, sensors, relays, and central control panels. Shelly products are compatible with the Shelly Smart Control App, Home Assistant, and other popular smart home platforms, making them easy to integrate into complex automation systems.

Key Features

• Large 6.95″ color touchscreen – intuitive control in landscape or portrait mode.
• Wi‑Fi 6 and Bluetooth 5.0 – fast and reliable wireless connectivity.

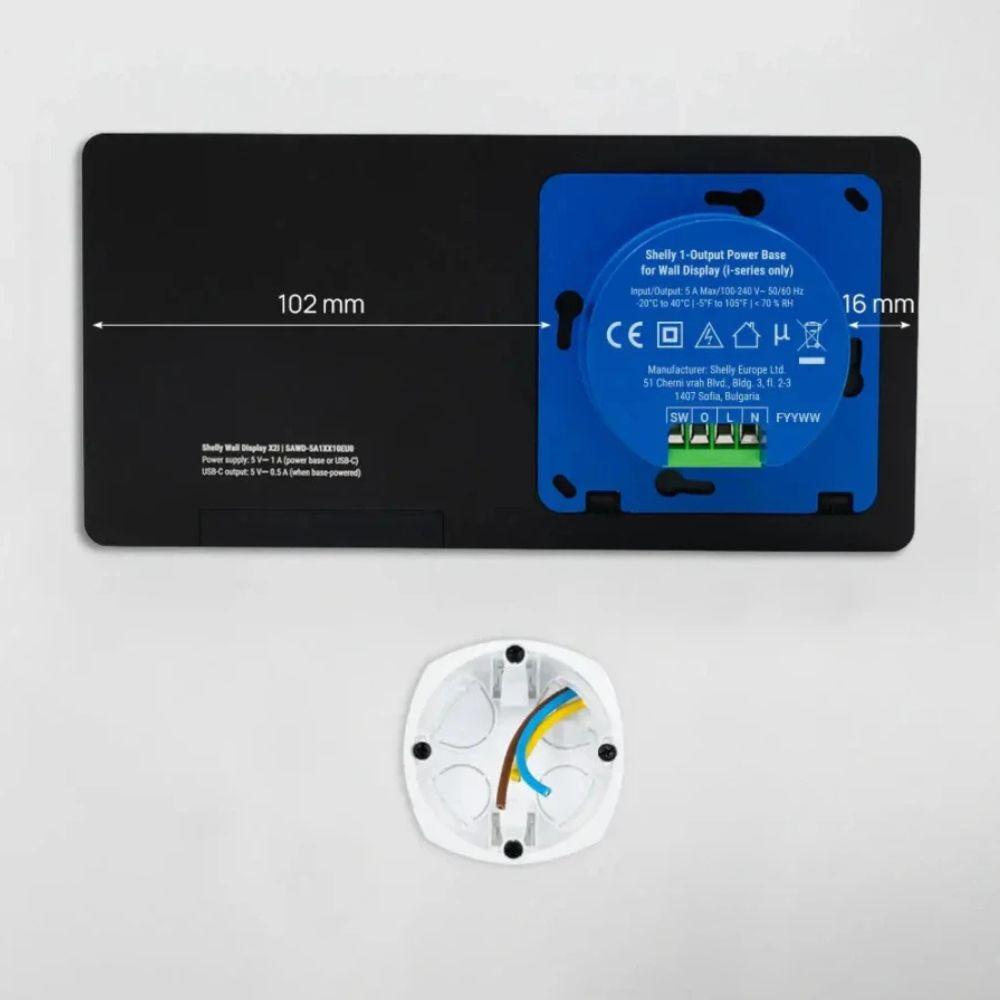

• Replaceable power base – flexible power options and future module support.
• Integrated relay – direct control of one electrical circuit.
• Energy monitoring display – real-time energy data from other Shelly metering devices.
• Built-in sensors – LUX, proximity, and G-sensor for automated interaction.
• Fast quad-core CPU – instant response during operation.

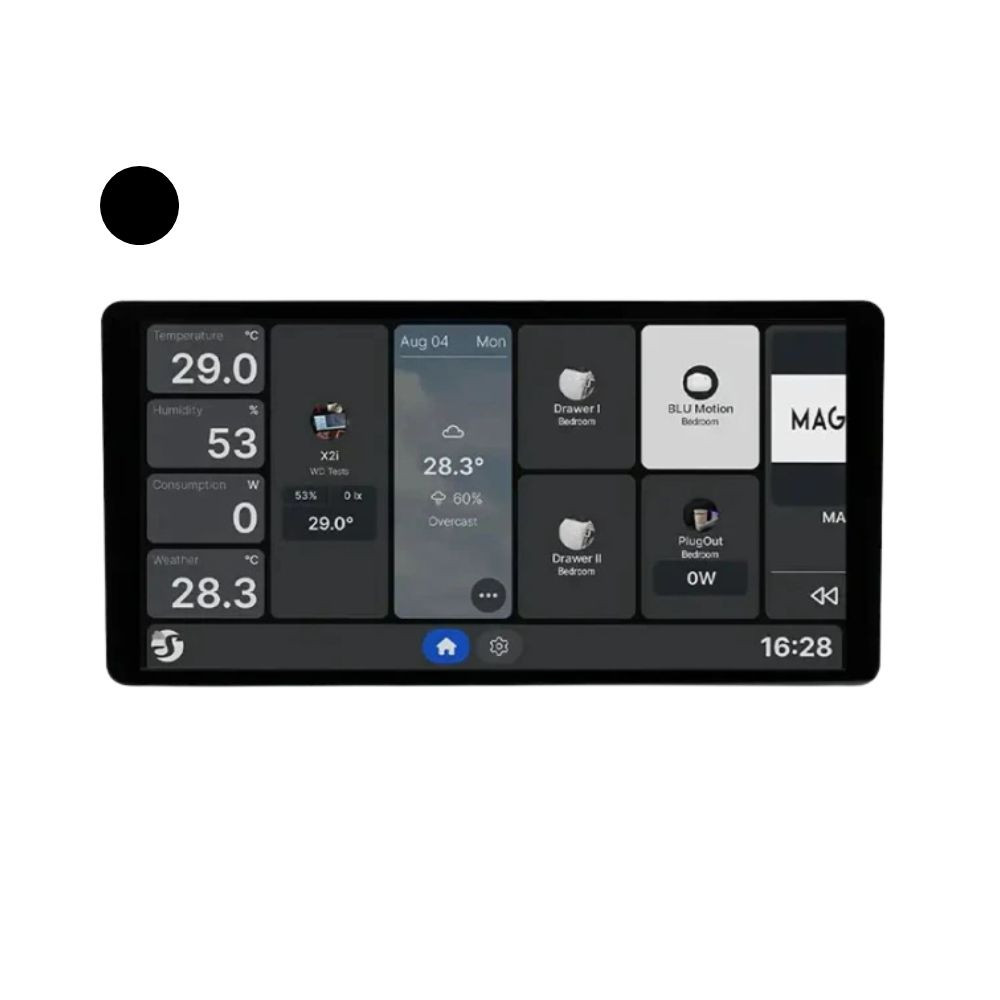

• Customizable home screen – quick access to favorite functions and scenes.

Smart Home Protocols & Platform Compatibility

• Wi‑Fi – direct connection via the local home network.
• Bluetooth 5.0 – local pairing and communication.
• Local control – supports MQTT, webhooks, and HTTP RPC (Shelly Smart Control and Home Assistant integration).
• Platforms – compatible with the Shelly Smart Control App and Home Assistant, with support for Google Home and Amazon Alexa integration (via Shelly configuration).

Smart Functions

• Touchscreen control via the wall-mounted display.
• Display and monitoring of energy consumption data.
• Triggering automations and scenes directly from the panel.
• Proximity and gesture-based interaction to activate the display.
• Customizable home screen for quick access to key functions.
• Integration with other Shelly devices for lighting, heating, or shading control.
• Local control via MQTT and webhooks.

Electrical Features

• Power supply – AC 100–240 V~ (selectable power base) or USB‑C 5 V⎓.
• Integrated relay – supports direct switching up to 5 A.
• Energy data display – based on data from other Shelly metering devices.
• Built-in sensors – LUX and G-sensor for light and orientation management.

Other Features

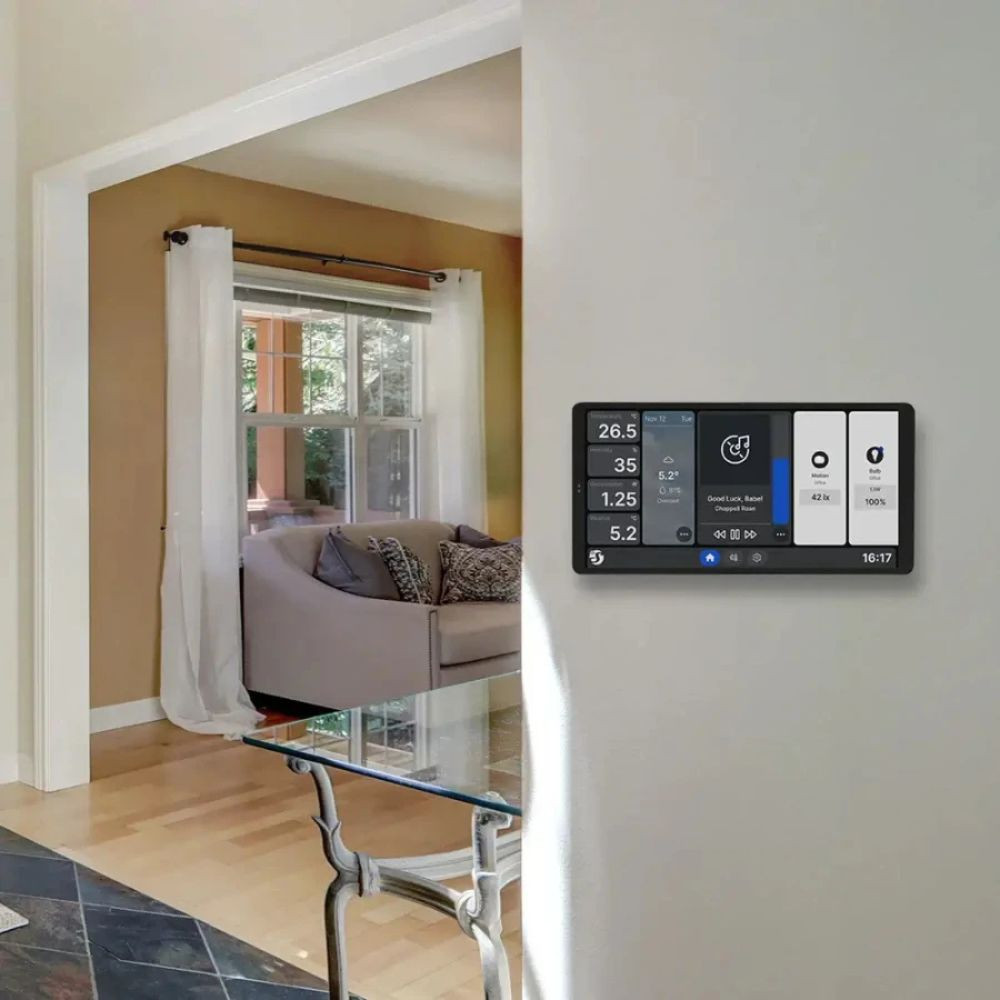

• Elegant, modern design with in-wall installation.
• Fast navigation and responsive UI thanks to the quad-core processor.
• Built-in 0.8 W speaker for feedback and notifications.
• Designed for installation in a standard wall box by a qualified electrician.
• Supports local, cloud-independent operation.

Technical Specifications

• Display type – 5-point capacitive touchscreen
• Display resolution – 1440 × 720 px
• Built-in speaker – 0.8 W

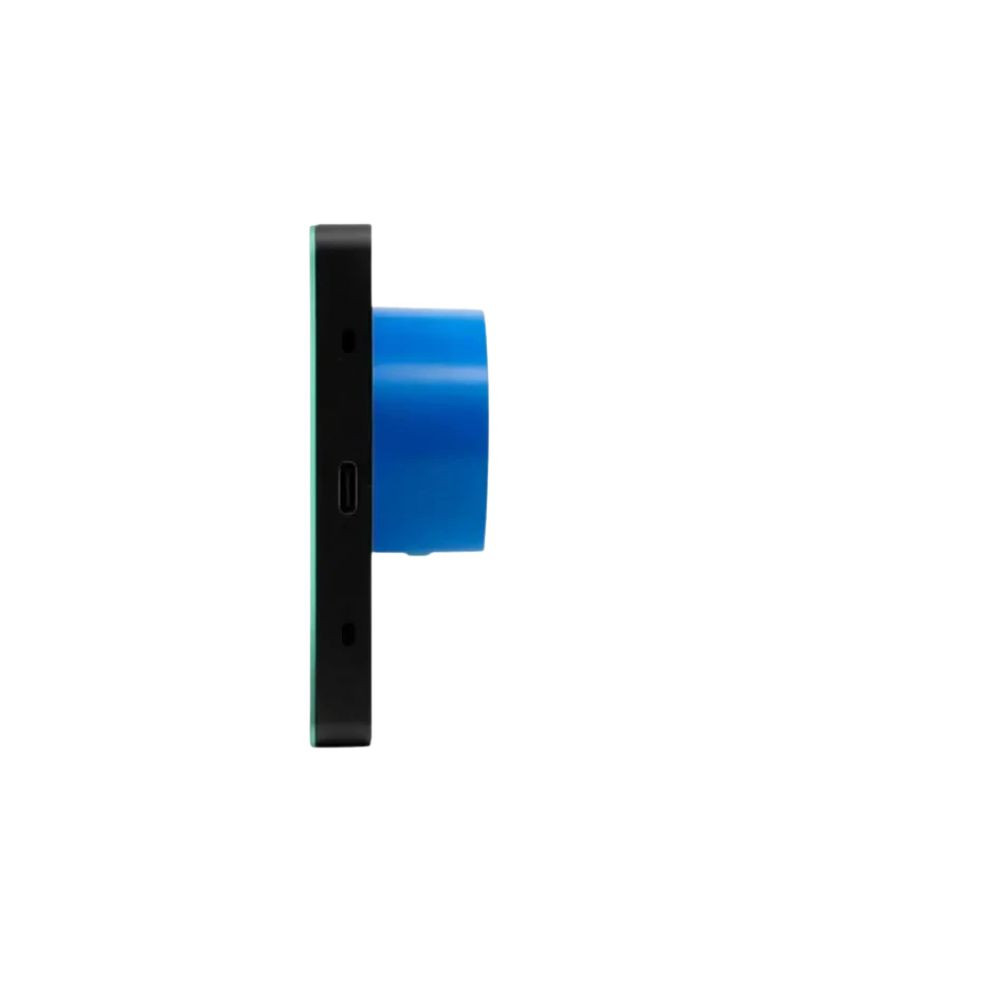

• Dimensions (H x W x D) – with power base: 87 × 178 × 36 mm, without power base: 87 × 178 × 11 mm
• Weight – with power base: 292 g, without power base: 246 g
• Enclosure material – plastic, aluminum, glass
• Enclosure color – display: black/silver, 1-output power base: blue (CMYK: C-95%, M-53%, Y-0%, K-0%)
• Mounting – in-wall installation
• Terminal max torque – 0.4 Nm
• Wire cross-section – 0.75 – 2.5 mm² (solid, stranded, and ferruled)
• Wire stripping length – 6 – 7 mm
• Power supply – 100–240 V~, 50/60 Hz or USB‑C: 5 V⎓, 1 A
• Power consumption – < 5 W
• Max switching voltage – 240 V~
• Max switching current – 5 A
• USB‑C output voltage – 5 V⎓
• USB‑C output current – 0.5 A
• Operating temperature – -20 °C to +40 °C
• Humidity – 30% to 70% RH
• Max installation altitude – 2000 m
• Built-in sensors – light sensor, proximity sensor, G-sensor
• Microphone – yes
• Wi‑Fi – Wi‑Fi 6 dual-band (2.4 GHz / 5 GHz), max RF output < 20 dBm, indoor range: 30 m, outdoor range: 50 m
• Bluetooth – 5.0, 2402–2480 MHz, max RF output < 4 dBm, indoor range: 10 m, outdoor range: 30 m
• Processor – Rockchip RK3326-S Quad-core Cortex-A35 1.5 GHz
• RAM – 2 GB
• Storage – 8 GB
• Operating system – Android 11
• Schedules – up to 20
• Webhooks – up to 20, 2 URLs per hook
• Scripting – not supported
• MQTT support – yes
