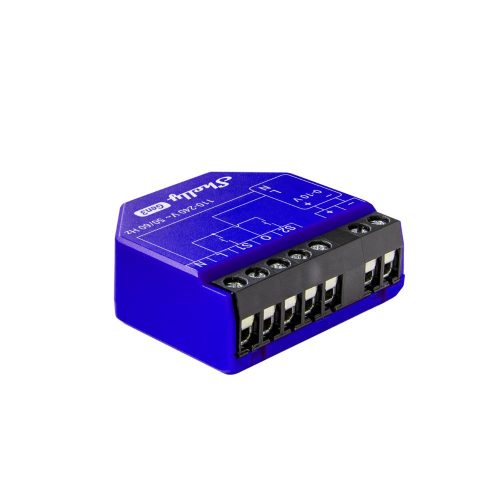

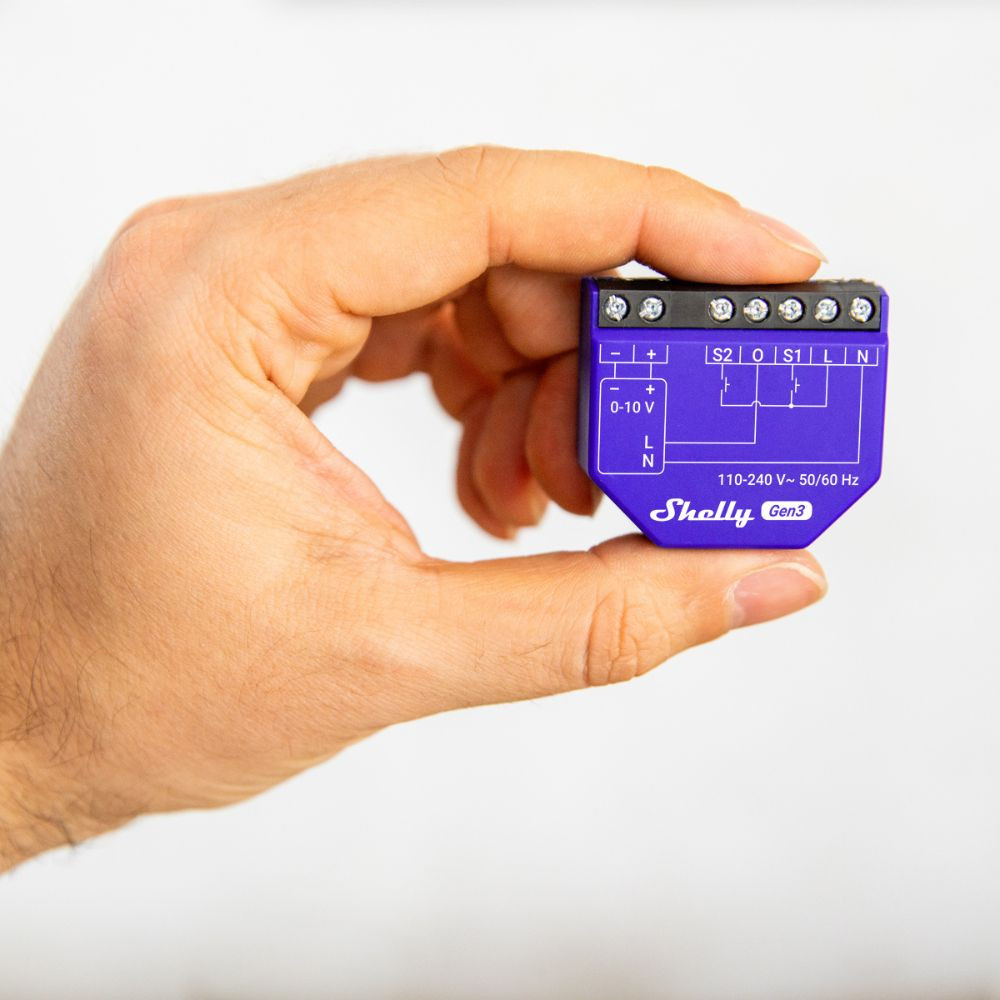

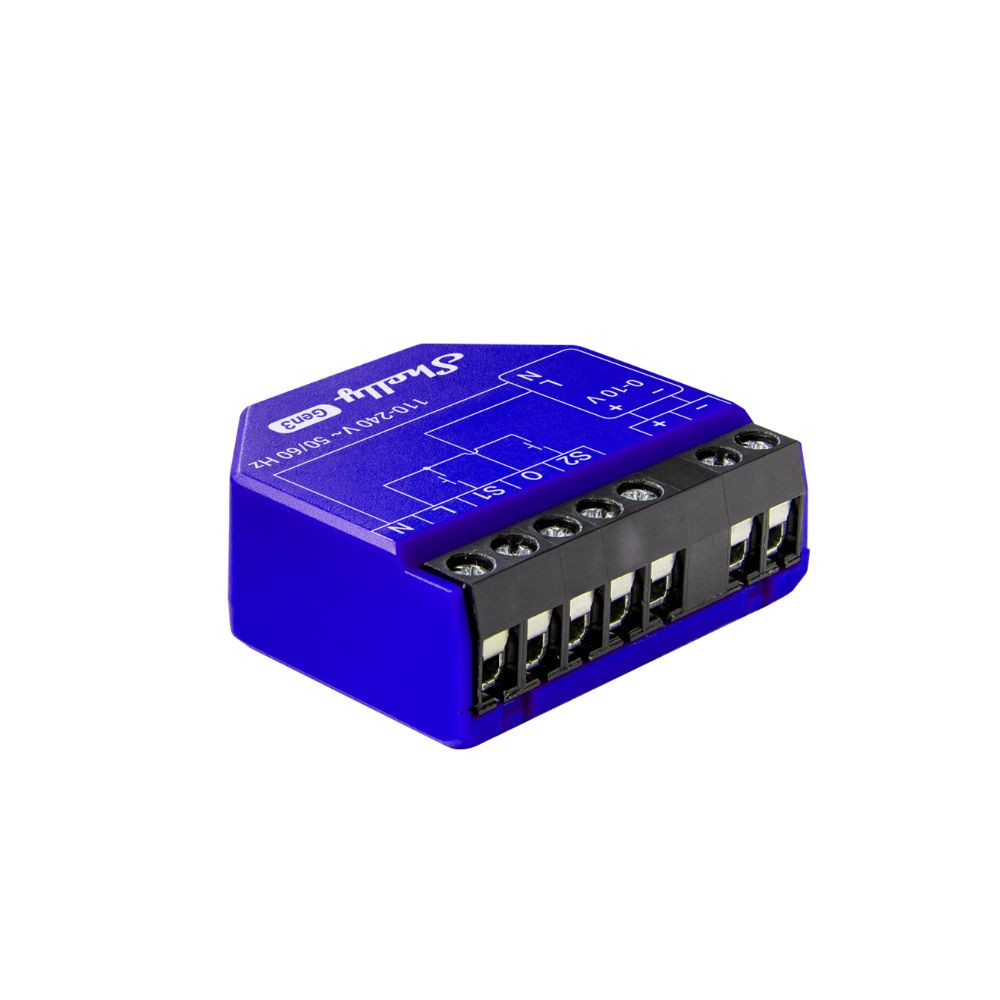

Shelly Plus 0/1-10V Dimmer GEN3, a smart Wi-Fi controller with 0-10V or 1-10V output

Name: Shelly Plus 0/1-10V Dimmer GEN3, a smart Wi-Fi controller with 0-10V or 1-10V output
Brand: Shelly
SKU: ALL-REL-PLUSDIM010V-R3
Availability: InStock

Shelly Plus 0/1-10V Dimmer GEN3, a smart Wi-Fi controller with 0-10V or 1-10V output

in stock (49 pcs)

Brand:

Shelly

The Shelly Plus Dimmer 0/1-10V PM GEN3 is a little smart control module that allows the control of devices with 0-10V and 1-10V analog input voltage regulation. You may use it to control dimmers with 0-10V or 1-10V control input, variable speed motor controllers, or for precise control of valve positions and other HVAC systems. The module is capable of supplying 230V AC to the controlled device, so power consumption can also be monitored.

FOR SAME DAY DISPATCH

Don’t miss today’s dispatch – order now!

Details
Data

Details

The Shelly Dimmer 0/1-10V PM Gen3 is specifically designed for controlling electronics. It can connect to devices requiring 0-10V or 1-10V DC control signals, such as power electronics for lighting control, variable-speed motor controllers (e.g., for regulating the fan speed in ventilation systems), or valve controllers (e.g., in air handling systems). Unlike its predecessor, this model supports not only PWM signal output but also 1-10V analog voltage control.

Key Features:

Output Control: The 0/1-10V output can only be used to control inputs and cannot directly drive loads.

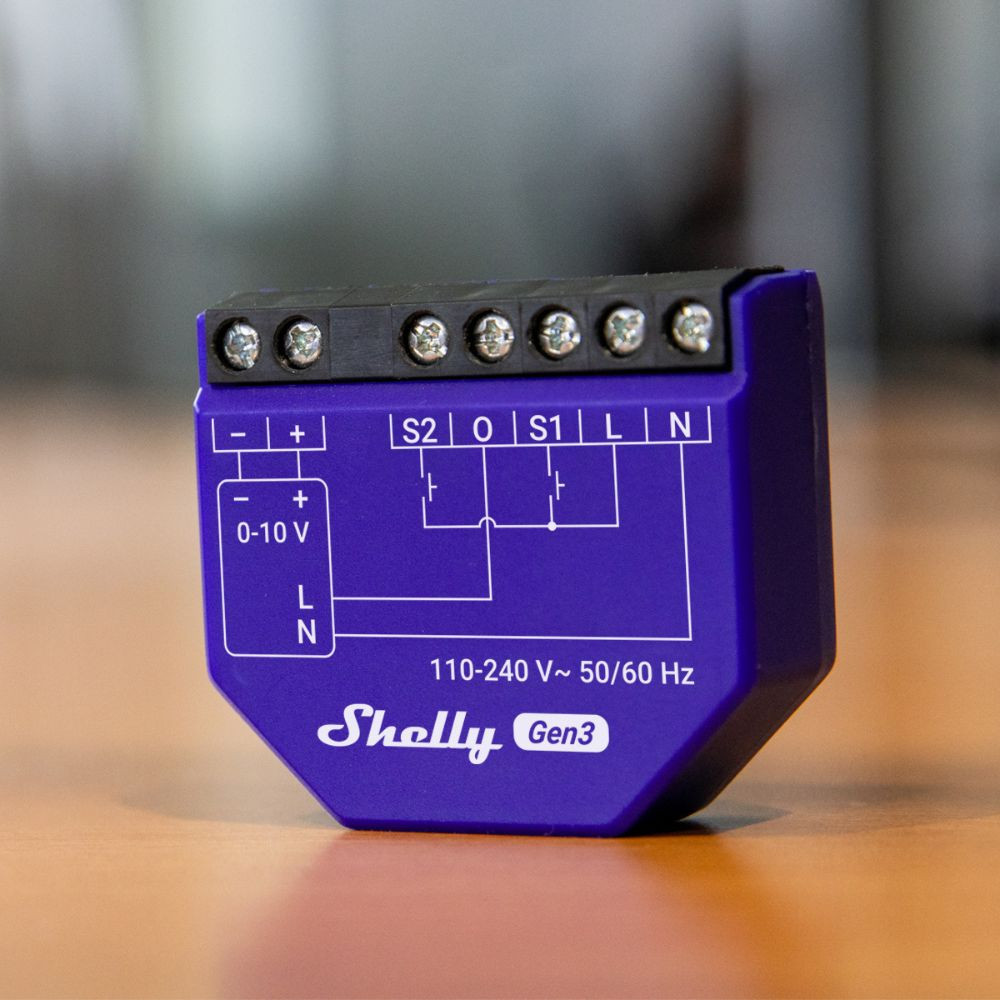

Switch Inputs: Equipped with SW1 and SW2 terminals for wall switch or push-button control.
Power Supply: Operates on 230V AC, requiring both phase and neutral wires.
DC Output: 0/1-10V DC; 0.35 Watts for control purposes only, not load-bearing!
Relay Output: Includes a 230V relay output terminal ("O") with a max load capacity of 13A, which activates when a control signal is sent from the Shelly module and deactivates when the output is turned off. This enables powering the controlled electronics through this circuit and monitoring their actual power consumption.

Connectivity:
The Shelly Dimmer 0/1-10V PM Gen3 connects directly to a WiFi router without requiring a local hub, gateway, or bridge. It can be installed as a standalone device or as part of a comprehensive system for smart home conversion in existing or new constructions. The module can be installed behind existing wall switches, allowing users to retain manual control while adding remote smart functionality via WiFi.

Bluetooth Pairing:
Pairing with a smartphone is quick and easy using Bluetooth, similar to other Shelly Plus, Pro, and Gen3 devices.

Advanced Processor and Features:
The device features an ESP32 C3 processor with enhanced performance and doubled memory (8MB) compared to earlier models, providing faster operation and more advanced functionalities.

Additional Features:

Overheating Protection: Ensures safe operation even in confined spaces.
WiFi Repeater: Extends WiFi signal to other Shelly devices when enabled, functioning as a mesh network.
Bluetooth Gateway: Acts as a receiver and gateway for new-generation Shelly Bluetooth sensors and remotes.

Integration and Automation:
The Shelly Dimmer 0/1-10V PM Gen3 supports various smart home ecosystems:

Protocols: MQTT, HTTP/HTTPS Webhooks, REST API.
Voice Control: Compatible with Google Home, Amazon Alexa, and Yandex Alice.
Platforms: Home Assistant, openHAB, SmartThings, Domoticz, Hubitat, ioBroker, HomeSeer, and more.

Scheduling and Modes:

Timers: Supports up to 20 offline schedules, sunrise/sunset timers with offsets, auto-off/on settings.
Modes: Operates in cloud, LAN (local network), or WiFi Access Point modes.

Specifications:

Input Voltage: 110-230V AC ±10%.
Output: 0/1-10V DC; 0.35W for control purposes only, not load-bearing!
Dimensions: Compact design fits behind wall sockets and switches.
Safety: Requires both phase and neutral wires for operation.

Applications:
Ideal for retrofit installations, the Shelly Dimmer 0/1-10V PM Gen3 allows for remote and manual control while enabling precise regulation of connected control circuits. Its advanced features, compact design, and wide integration options make it a versatile solution for both residential and commercial applications.

With the Shelly App, users can monitor power consumption, disable switches (useful for child safety), and configure advanced automation rules for enhanced functionality.

Shelly's free cloud service allows for remote management and control via the Shelly Cloud app or web platform, enabling seamless integration with other Shelly devices and third-party systems.

This content is only available to logged in users.

Data

Weight:

30 g/pcs
