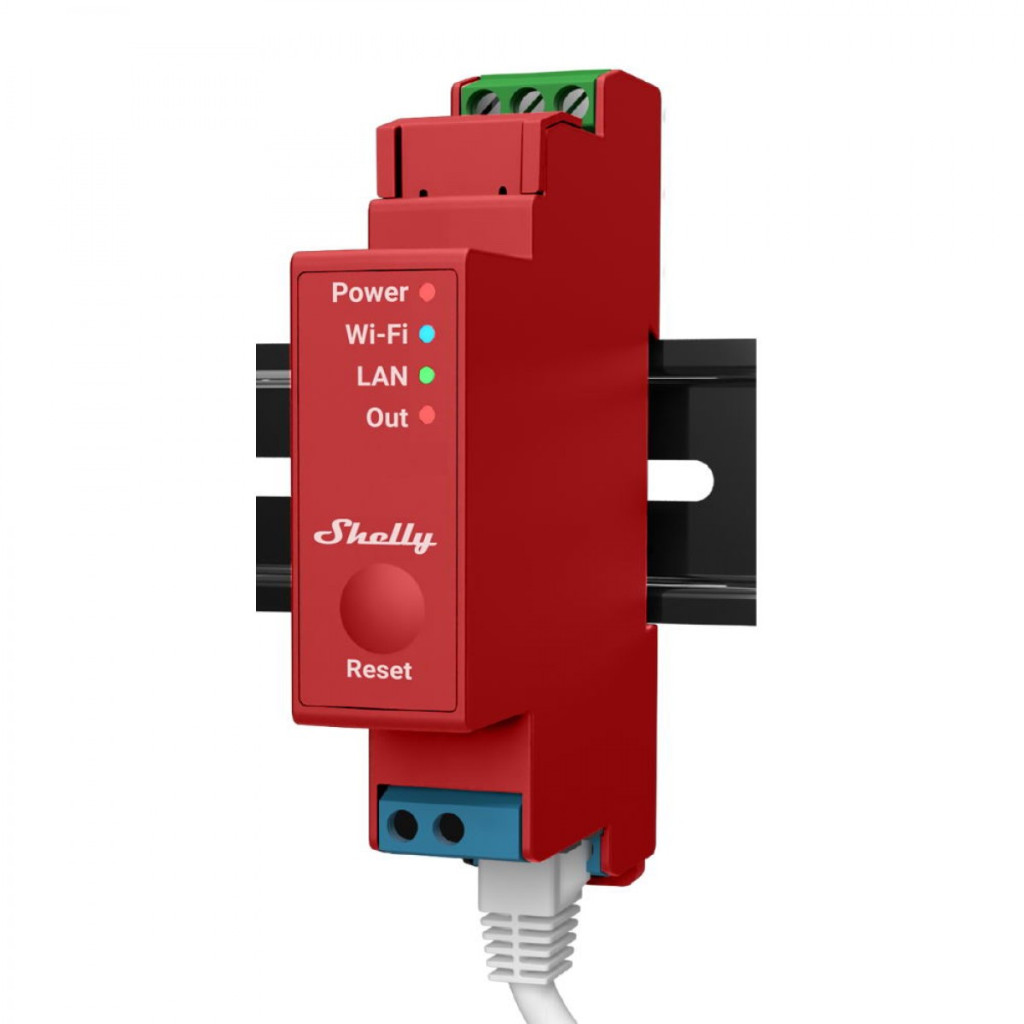

Shelly PRO 1PM WiFi + Ethernet 1-gang smart relay with power meter and DIN-rail support

Shelly Pro 1PM is a one-phase, 1-channel relay supporting up to 16A. Equipped with an integrated power meter, Shelly Pro 1PM allows users to measure the precise power consumption of all automated lights or heavier appliances.
It can be powered by a wide range of voltages (110-240V AC), allowing customers to automate, measure the power consumption, and analyze data to be more cost-effective. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. Additional custom automatization also is possible thanks to Shelly Pro 1PM’s enabled scripting functionalities, giving you the ability to customize and enhance device functionality based on your specific needs.

USE CASES

• lights control
• socket control
• floor and other heater automation
• pool pump control
• jakuzzi automation
• power meter

Supreme home and facility automation with Shelly’s professional line of smart switches

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

DIN rail mountable

The Shelly Pro Line is intended to be installed inside the breaker box and designed to meet the global DIN rail standardization. That makes it suitable for all kinds of buildings and ensures easy installation with no additional components needed.

No hub required

Shelly Pro devices can be controlled directly and without a hub through your smartphone with Shelly Cloud
App. Manage and control the all smart devices in your home, set quick profiles, scenes, schedules, and adjust settings wherever you are through the Cloud access, or only on the local network!

Connectivity

• LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed
• Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options
• Now, add device fast and easy via Bluetooth connection, using Shelly Cloud App

Safety

• Temperature / overheating protection - In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
• Flame Retardant (V-0) - All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
• Overpower protection (PM devices) - Detected overpower will lead to outputs switch off by the device and it will immediately send notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
• Overvoltage load protection (PM devices) - Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.

Features:

• HTTP/HTTPS webhooks
• Sunrise/Sunset actions with offsets
• Weekly Scheduling
• Custom scripts(mJs)
• Grouping
• Scenes

Supported platforms and protocols:

• Amazon Alexa
• Google Home
• Yandex Alice
• SmartThings
• MQTT
• Home Assistant
• REST API
• Homey
• Hubitat
• Hoobs
• Symcon
• HomeSeer
• Domoticz
• Nymea
• OpenHAB

Product features:

• LAN, Wi-Fi and Bluetooth: Simultaneous Wi-Fi and LAN usage, add device fast and easy via Bluetooth connection
• 1 channel relay: 1 output, 16A
• Power metering - built-in measuring help to control consumption and cost and create consumption-based automations
• Wide range of voltage support: Shelly Pro 1PM can be powered by 110-240 VAC
• Extremely fast processor: For immediate command execution and notification.
• Wide variety of appliances control: Suitable for automating the lights, appliances, pool system, heaters, and many more.
• Enhanced safety: Flame retardant shell (V-0) with internal overtemperature protection.
• Enhanced security:  MQTT and WSS support, TLS and custom certificates support for a broad range of use cases.
• No hub required: Control directly and without a hub through your smartphone with Shelly Cloud App.
• Highly compatible:  Use with your preferred home automation platforms and voice assistants.
