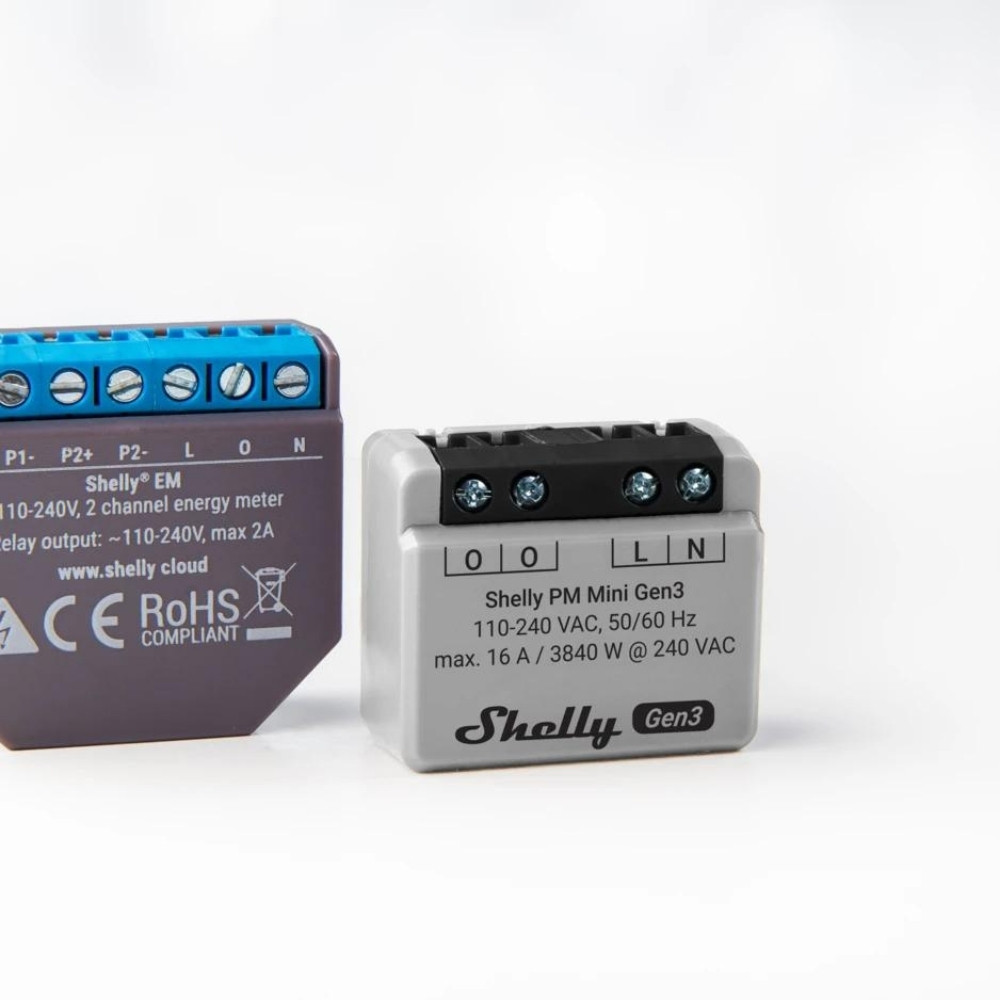

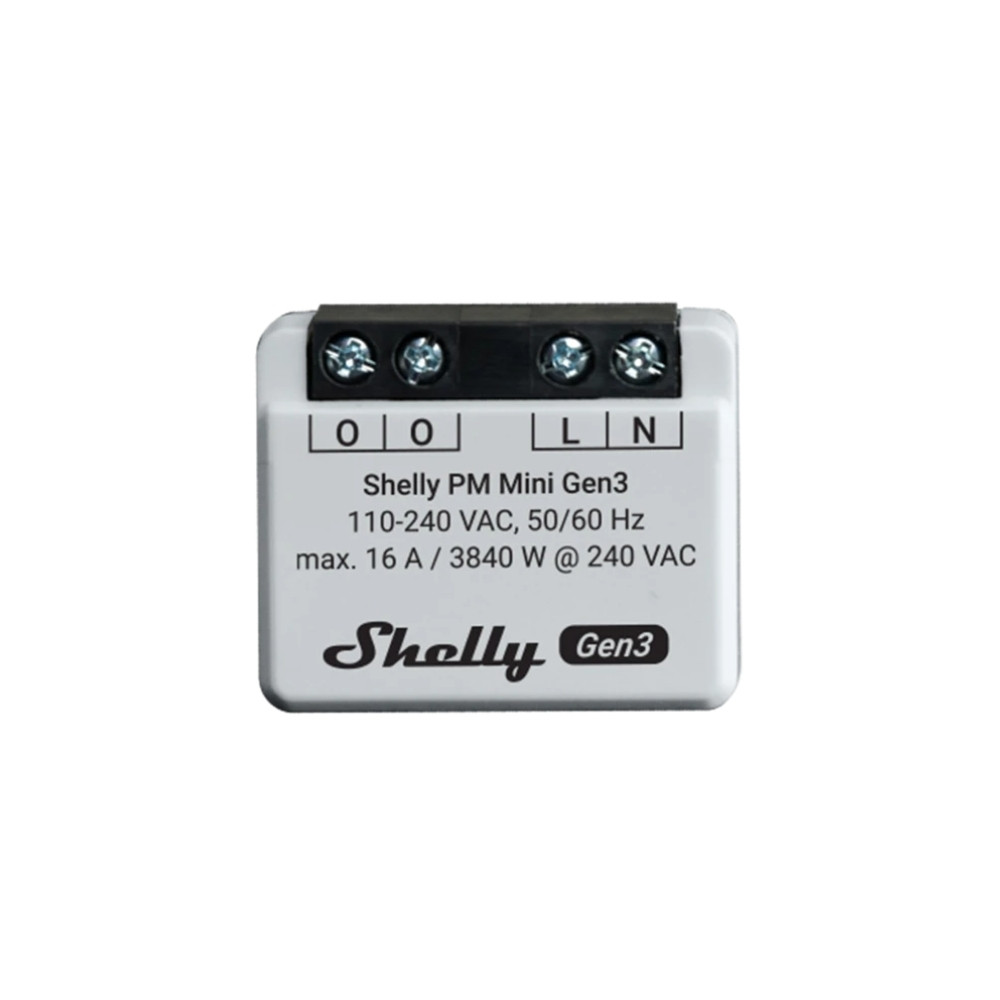

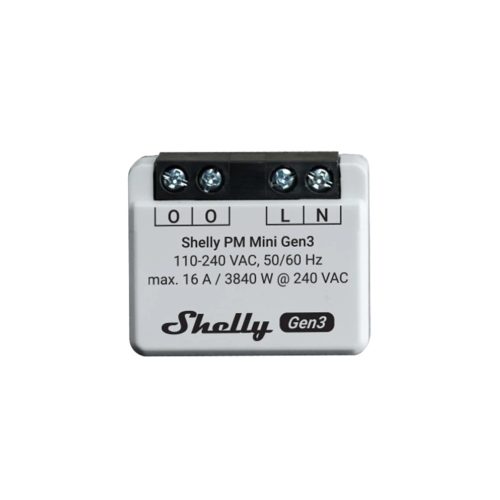

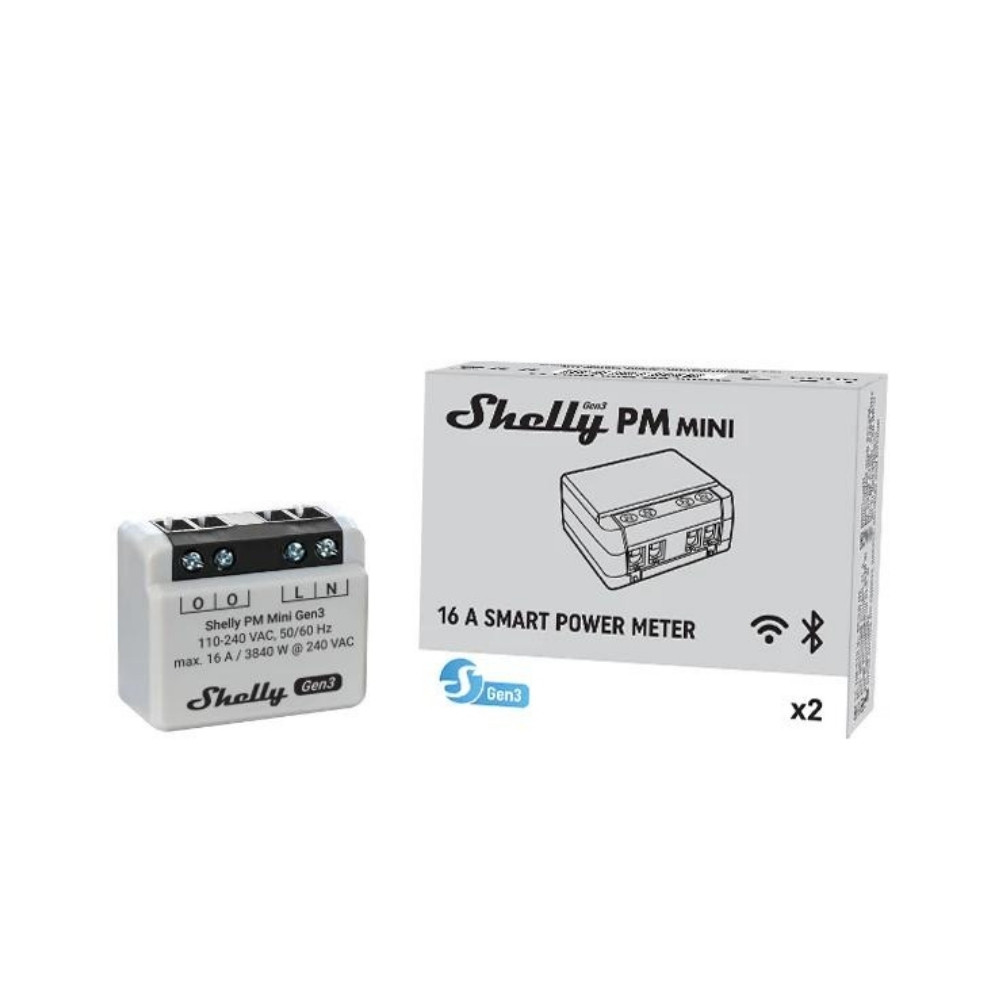

Shelly PM Mini GEN3, Wi-Fi + Bluetooth smart power meter, 1 channel (16A)

Name: Shelly PM Mini GEN3, Wi-Fi + Bluetooth smart power meter, 1 channel (16A)
Brand: Shelly
SKU: ALL-REL-PLUSMINIPM-R3
Availability: InStock

Shelly PM Mini GEN3, Wi-Fi + Bluetooth smart power meter, 1 channel (16A)

in stock (100+ pcs)

Brand:

Shelly

The Shelly PM Mini GEN3, like the Shelly PM Mini, is a wall socket mounted Miniature meter that does not have relays so it cannot be switched, but it does have a 16A meter.

FOR SAME DAY DISPATCH

Don’t miss today’s dispatch – order now!

Details
Data

Details

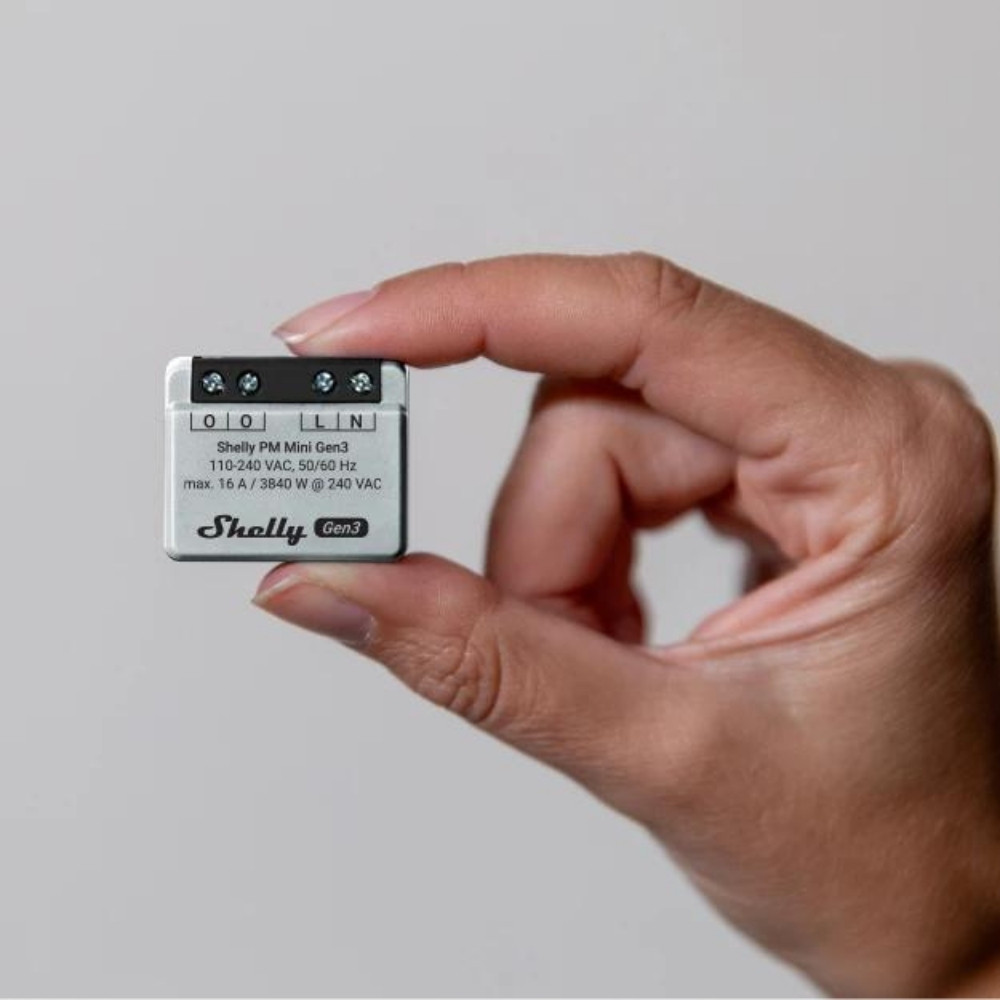

The new Shelly PM Mini GEN3 is one of the smallest WiFi device with smart metering. Like its predecessor, it does not include a relay and so it can't switch, but thanks to its small size it fits into even the smallest wall socket behind the fittings. For measuring the consumption of loads up to 16A suitable for metering a wide range of consumers.

Connects directly to the WiFi router, no need for a local control panel, hub or bridge for smart control. It can be installed as a standalone, 1 device only, but can also be installed in a new build or a new or renovating a whole property, you can use a complete smart home. Shelly is also a good choice as a complete system.

With the help of monitor the instantaneous and historical consumption of consumers, as well as the other Shelly devices, relays and other appliances based on instantaneous consumption values. relays. The Shelly PM Mini GEN3 meter with 110V-240V AC supply and not suitable for DC current measurement.

GATEWAY FUNCTIONS

The Shelly PM Mini GEN3 is equipped with the ESP-Shelly-C38F chip. Like its predecessor, the device also supports Wi-Fi + Bluetooth protocols. It also includes a Bluetooth gateway, it can also act as a Bluetooth receiver/gateway for Shelly's new generation Bluetooth sensors and Bluetooth remote control. It also includes a Wi-Fi repeater function, which, when enabled, transmits a Wi-Fi signal to remotely installed Shelly devices - a kind of Wi-Fi mesh.

BLUETOOTH PAIRING:

Pairing with a phone is done via Bluetooth protocol,

Bluetooth connection. MORE POWERFUL PROCESSOR, MORE FEATURES:

The Shelly 1PM Mini GEN3 is now in its third generation, with double the memory of its predecessor ESP-Shelly-C38F chip. This has increased its memory from 4MB to 8MB.

Shelly FEATURES:

The product:

Supports HTTP/HTTPS webhooks, so enhanced Shelly products can easily connect, notify or control compatible products or other automation systems

Support for sunrise/sunset timed on/off, now with +/-23 hour offset, can handle up to 20 timers (stored on the device and working offline), supports mjS scripts, allowing customers to create their own functions and features! Shelly line devices allow multiple scripts to be executed simultaneously, depending on different triggers such as input/output status, sensor data or WLAN requests.

The consumption data for the smart device in cloud mode

saved to the Shelly Cloud account and can be viewed and downloaded in the app

consumption history.

In cloud mode, Shelly devices can be accessed and downloaded from the Shelly Cloud Scene

(Smart Control) feature, they can also control each other (composite)

(For example, a light switch can be used to control the

Shelly relay mounted behind a switch can turn on/off a wiring another Shelly relay behind an outlet, independent from the wiring point, and also on/off, i.e. devices can be connected through WIFi and the factory cloud without can simply control each other according to rules we specify.)

It is also possible, when using fixed IP addresses, to (without using Shelly Cloud, even in LAN mode) directly directly using HTTP commands (DDD, Direct Device-to-Device), i.e

Shelly devices are not connected to the external Internet (or to the firewall) (disable), they are still able to switch each other on/off on the local network using the Shelly Shelly App.

For the Shelly PM Mini smart controller, the manufacturer's own NEW smartphone

app and its own Cloud service are also available free of charge.

Integrations:

Even with its factory firmware, Shelly is one of the easiest to integrate smart devices on the market. It supports MQTT and control via REST API.

Compatible with Google Home, Amazon Echo and Yandey Alice voice control. A Shelly PM Mini supports Cloud and MQTT control simultaneously.

A number of Shelly devices have already been integrated via Shelly Cloud SmartThings platform.

In addition, the factory firmware supports a range of other open source and other systems:

Other technical parameters:

Operating voltage: 110-230V AC ±10%

Power consumption measurement: 16A / max 240V AC

As with other smart devices, this device has a

For the operation of these smart devices, not only phase conductors but also neutral conductors are required.

This content is only available to logged in users.

Data

Weight:

25 g/pcs
