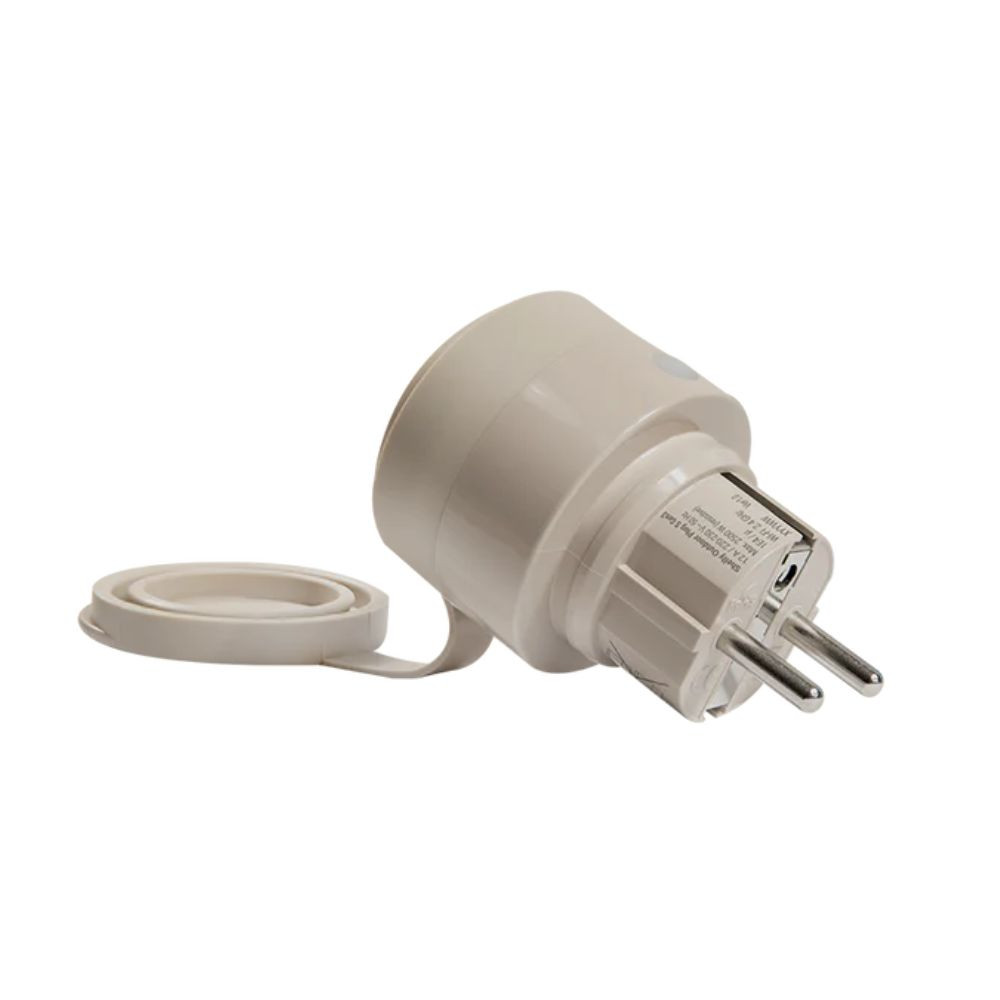

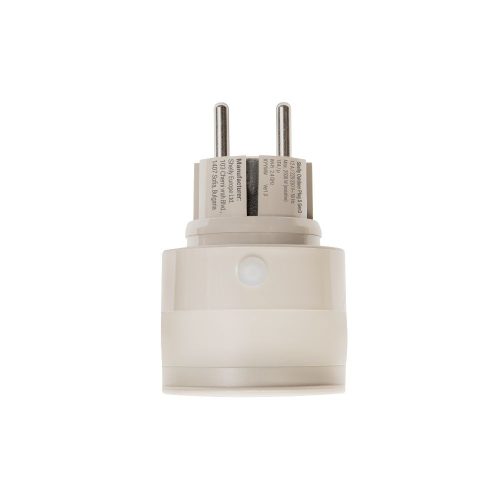

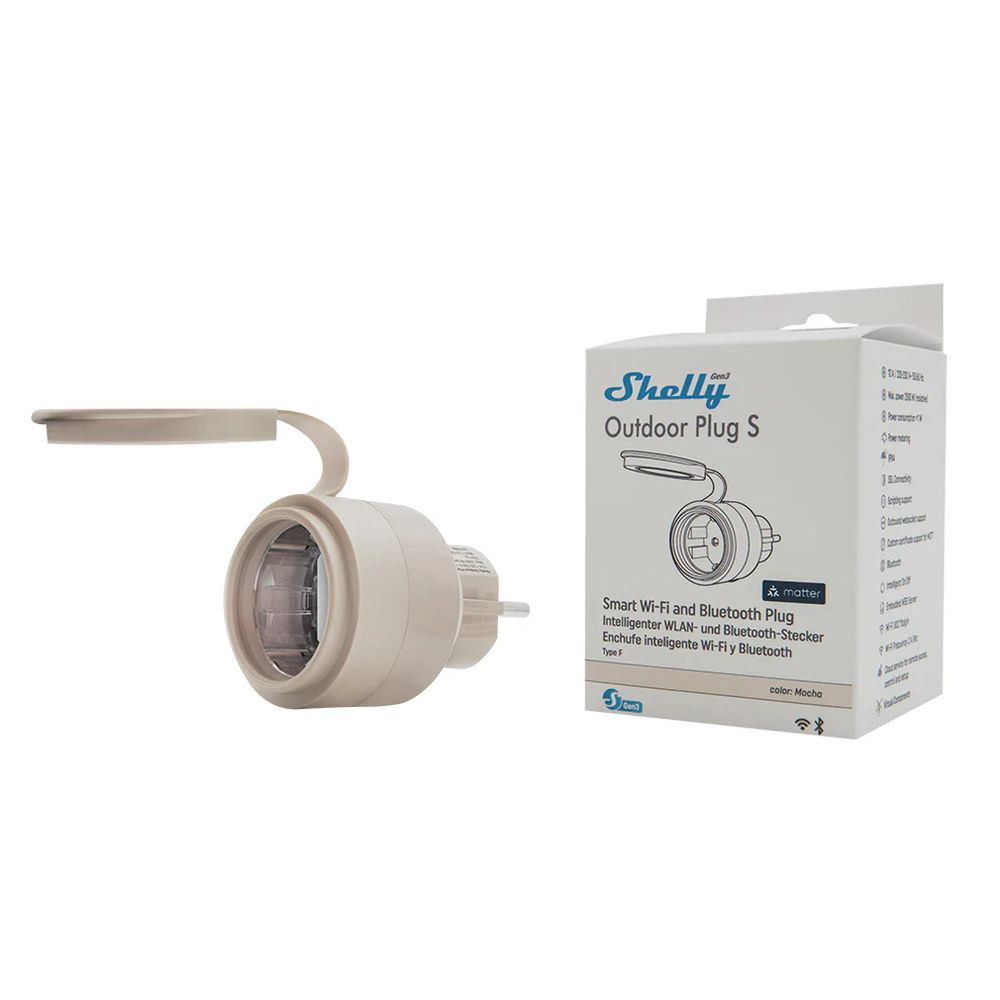

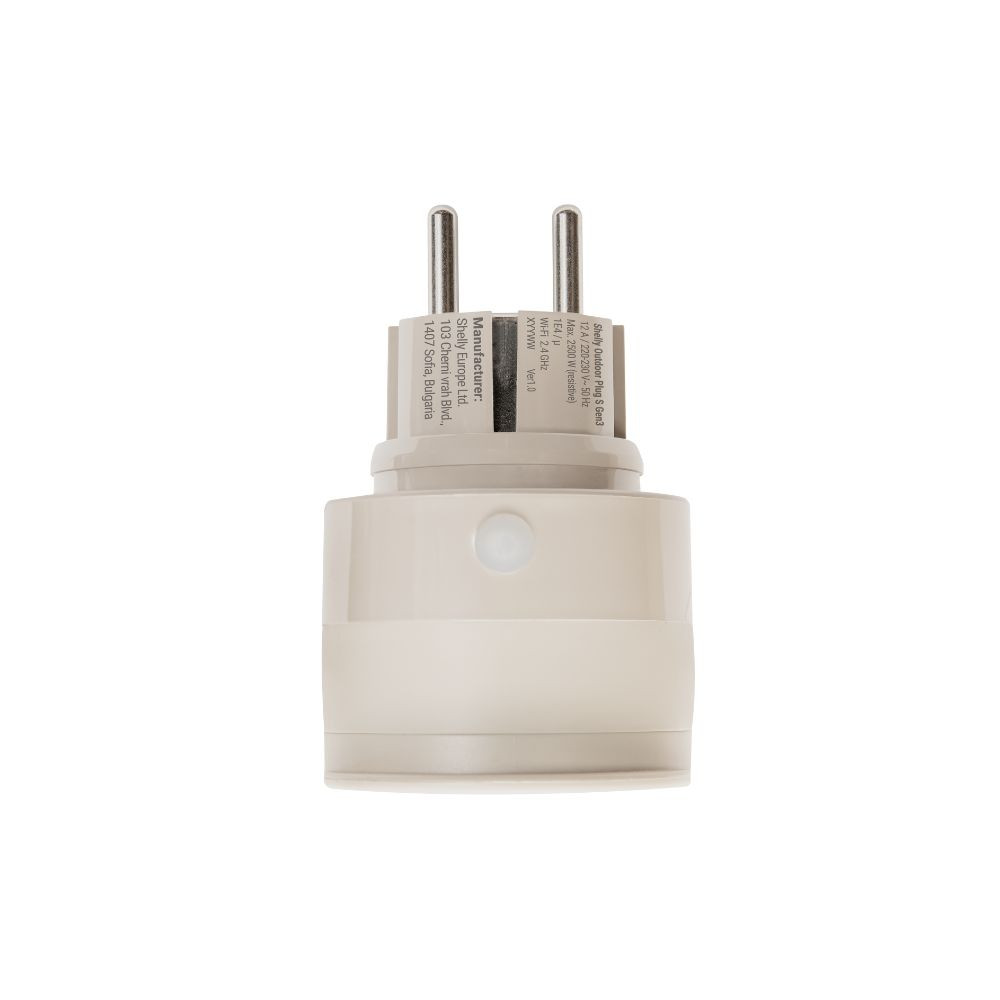

Shelly Outdoor Plug S Gen3, Wi-Fi + Bluetooth Plug

The Shelly Outdoor Plug S Gen3 is a compact smart plug designed to withstand outdoor conditions. It communicates via Wi-Fi and can be paired quickly using Bluetooth connectivity, also serving as a gateway for BLU devices. With Matter support and integrated power measurement capabilities, it’s perfect for tracking energy consumption at endpoints.

Control and monitor any electrical device plugged into a socket in your home, even outdoors. It can switch devices up to 2500 W and offers customizable LED indicator lights. The built-in Matter compatibility ensures smooth integration with any Matter-supported smart home system.

Scheduling Options:

• Set up to 50 on/off schedules for different days of the week with Gen3 devices.
• Supports sunrise and sunset-based scheduling (including offsets like “sunset + 30 minutes”).
• Includes auto-off and auto-on timers, allowing devices to turn on or off automatically after a specified duration.

Supported Modes:

• Cloud Mode: Connects to the free Shelly Cloud platform, enabling control via the Shelly Cloud smartphone app (available for iOS and Android) or through https://home.shelly.cloud/.
• LAN Mode: Devices operate exclusively on the local network without relying on cloud services.
• Local Smart Home Integration: Supports REST API and MQTT integration with local smart home hubs.
• Wi-Fi Access Point Mode: When no permanent Wi-Fi network is available, the plug can broadcast its own Wi-Fi AC network, allowing control from a smartphone or laptop within its range.

Matter Compatibility:

The new Shelly Outdoor Plug S Gen3 supports the Matter smart home standard. This enables the plug to integrate seamlessly with not only Shelly Cloud and local modes but also with other Matter-compatible ecosystems, such as Apple HomeKit, SmartThings, and more.

In cloud mode, power consumption data is saved to the Shelly Cloud account, where users can view and download consumption history via the app.

With Shelly Cloud’s Scene functionality, Shelly devices can control each other based on complex conditions. For example, a Shelly relay behind a light switch can turn on or off another Shelly relay plugged into a socket, enabling wireless control between devices through Wi-Fi and Shelly Cloud.

Alternatively, with fixed IP addresses, Shelly devices can communicate directly via HTTP commands (Direct Device-to-Device mode) without an internet connection. This ensures device control remains functional even during internet outages or if firewall restrictions block cloud access.

Smart Control & Automation:

Shelly offers a free proprietary smartphone app and Cloud service for smart control.

• Supports HTTP/HTTPS webhooks.
• Can be controlled via cloud services, MQTT, and mjS scripts without requiring a hub.

Bluetooth Pairing:

Pairing the Shelly Outdoor Plug S Gen3 is faster and easier thanks to the built-in Bluetooth chip.

Enhanced Performance with a Powerful Processor:

Instead of the ESP32 processor found in previous models, the Shelly Outdoor Plug S Gen3 features Shelly’s custom ESP-Shelly-C38F processor. This upgraded CPU offers faster performance and double the memory (8MB), enabling improved functionality and quicker response times.

Shelly Gen3 Features:

• Supports HTTP/HTTPS webhooks for easy integration with compatible devices and automation systems.
• Includes advanced scheduling with sunrise/sunset timing, allowing up to ±23 hours offset.
• Can manage up to 50 stored schedules, functioning offline.
• Supports mjS scripts, empowering users to create custom functions and automation rules based on triggers like input/output state changes, sensor data, or WLAN requests.

Integrations:

Shelly devices are among the most versatile smart home solutions, even with factory firmware. They support control via MQTT and REST API and are compatible with voice assistants like Google Home and Amazon Echo.

Through Shelly Cloud, integration with the SmartThings platform is available. Additionally, the factory firmware supports various open-source and other systems, including:

• MQTT
• HomeSeer
• ioBroker
• Home Assistant
• openHAB
• Domoticz
• SYMCAN
• nymea
• Hubitat
• Hoobs
• REST API

Key Features:

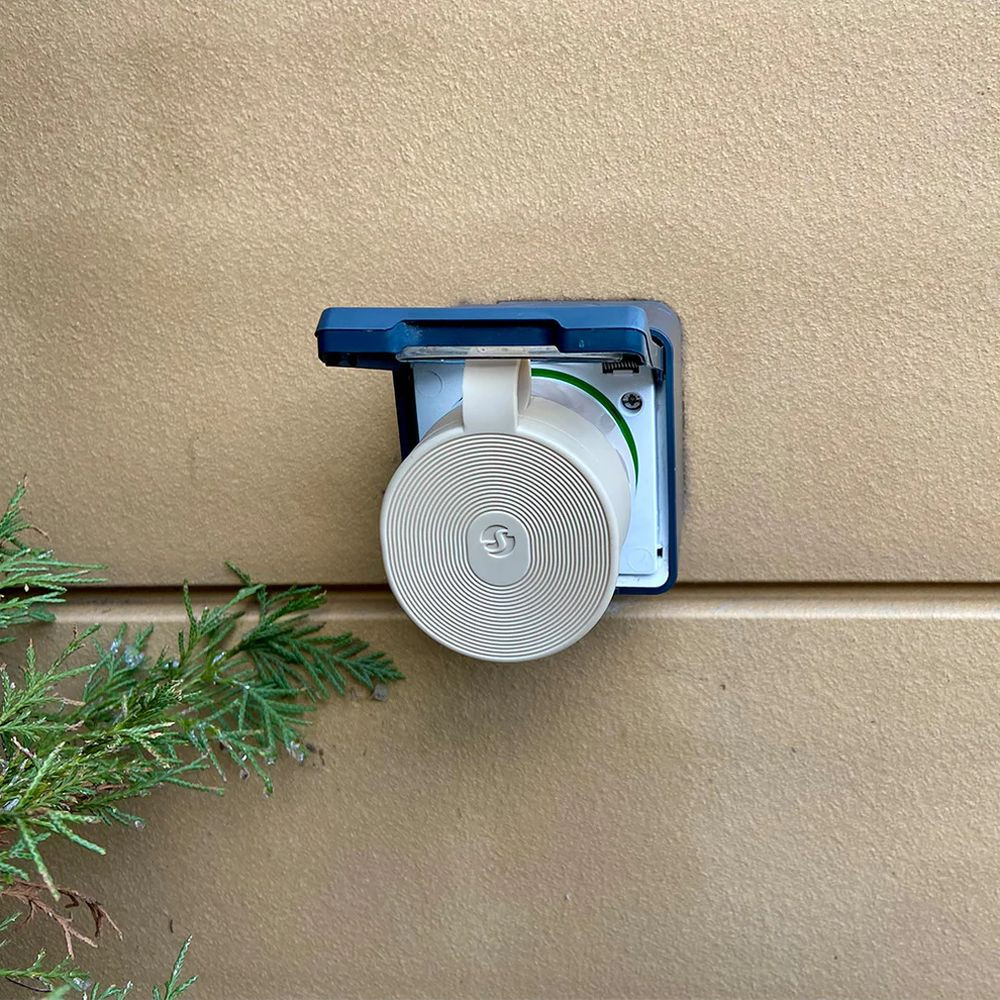

• Designed for outdoor use with IP44 protection.
• Operating temperature range: -25°C to 51°C.
• Maximum load capacity: 12 A (2500 W resistive load).
• Certified for Matter support – easily connect with third-party ecosystems.
• Apple HomeKit support – control connected devices using the Apple Home app or Siri.
• Power consumption tracking via the Shelly app.
• Multi-color LED indicator with Night Mode support.
• 8 MB flash memory and ESP-Shelly-C38F chip.
• Customizable scripting capabilities.
• Supports schedules, scenes, and local automation.
• No hub required! Fully compatible with third-party automation systems and apps, including Shelly Smart Control.
• Can function as a Wi-Fi range extender and BLE gateway.
• Supports KNXnet/IP communication.
• Dimensions (H x W x D): 44 x 44 x 70 mm.
