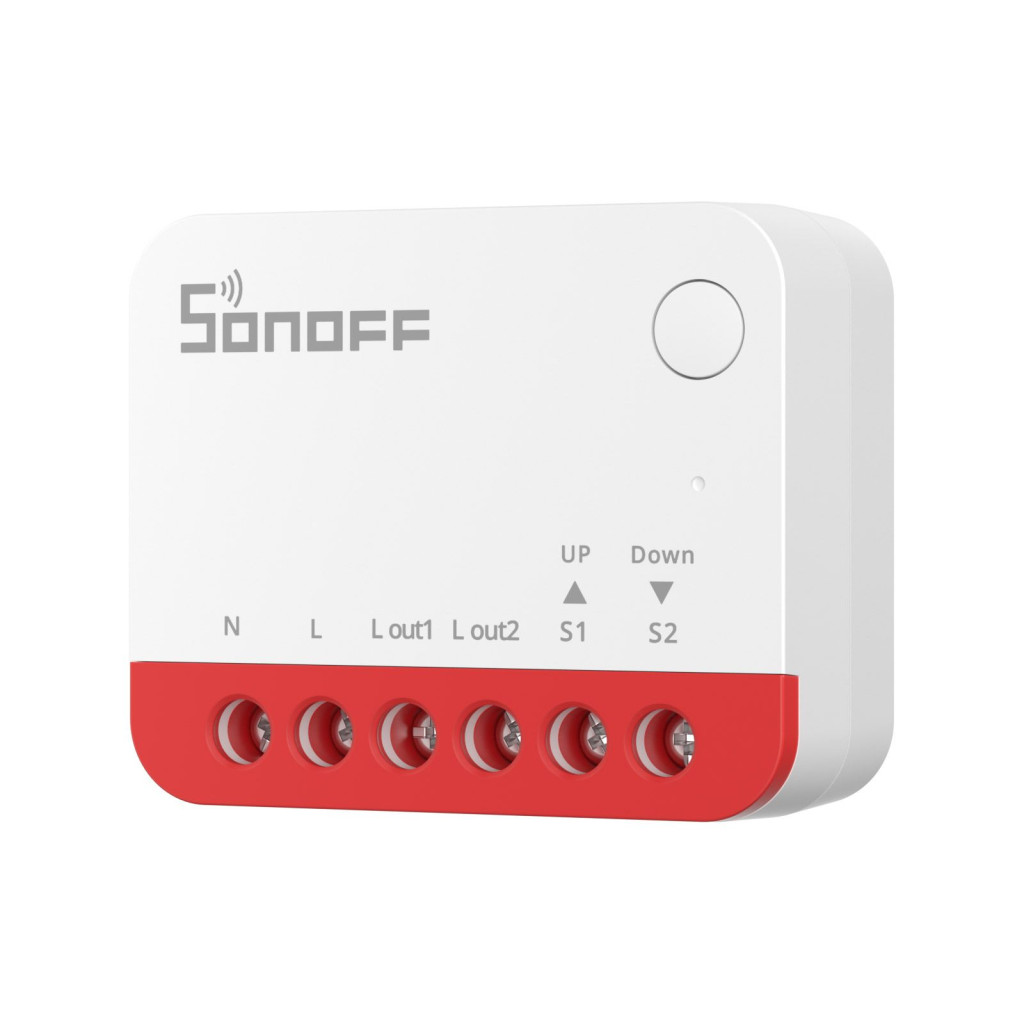

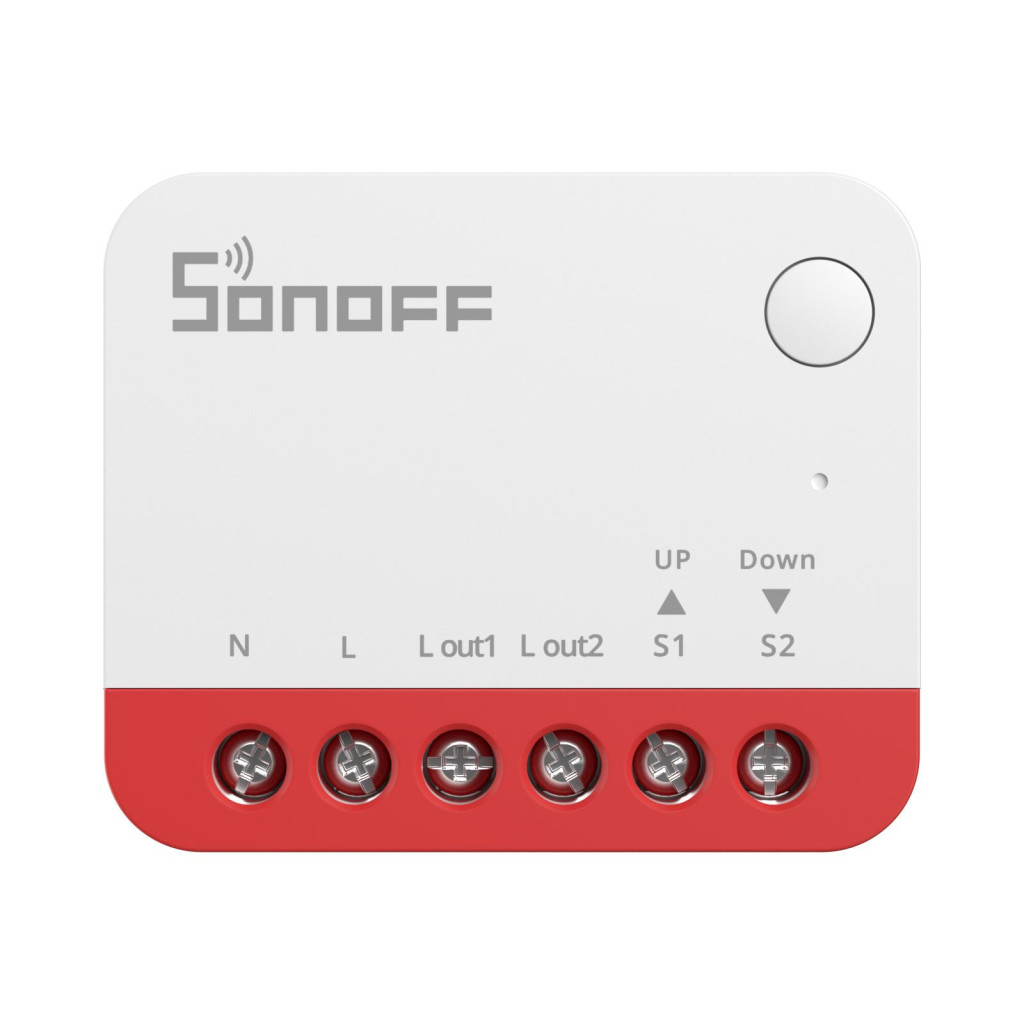

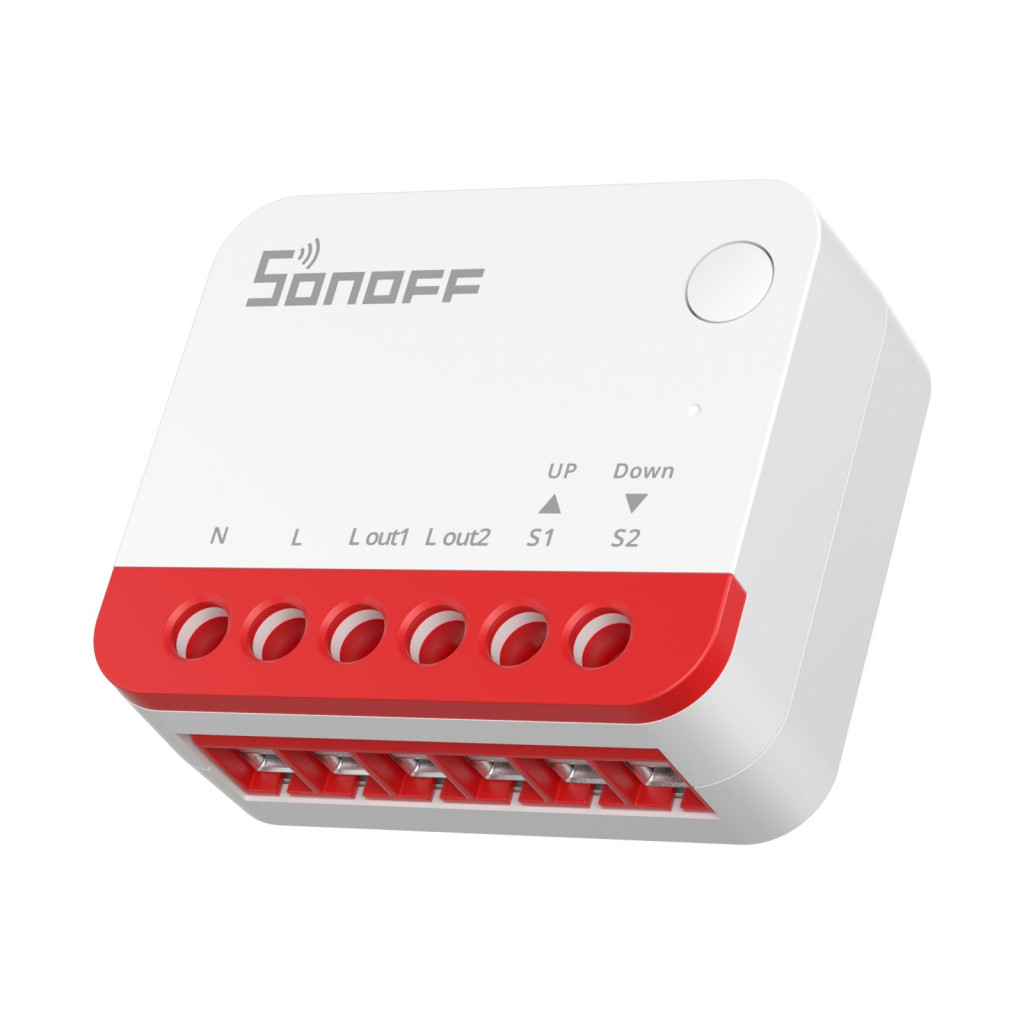

SONOFF Zigbee Smart Roller Shutter Switch (MINI-ZBRBS)

The SONOFF MINI-ZBRBS is an ultra-compact Zigbee smart module for controlling roller shutters and curtains, designed to fit into standard wall mounting boxes. With this device, a traditional motorized shutter or curtain system can be easily upgraded to a smart home solution without replacing the entire setup. Compatible with motors up to 1A load, it works with most small and medium-sized home roller shutters, blinds, and curtain systems.

When connected to a Zigbee hub, it enables remote control via app, scheduling, and integration into smart scenes. Additionally, the module functions as a Zigbee signal repeater, helping to strengthen and expand your Zigbee network. This not only makes shutter control more reliable but also improves the stability of the entire network. The MINI-ZBRBS supports multiple shading solutions, including curtains, shutters, awnings, and even projector screens. With its calibration function, roller shutters and blinds can be controlled with percentage precision, allowing optimized light and temperature control.

About the Brand

SONOFF is one of the world’s most recognized smart home brands, offering affordable yet reliable smart switches, relays, sensors, and cameras. Most products work with the eWeLink platform, while many models (including the MINI-ZBRBS) are also compatible with open-source systems such as Home Assistant and Zigbee2MQTT.

Main Product Features

• Compact size – fits into smaller wall boxes, including standard European 80 mm boxes.
• Precise percentage position control – set shutters and curtains to partial positions for improved comfort and energy efficiency.
• Scheduled operation – automate opening/closing at predefined times.
• Calibration function – ensures accuracy, reduces mechanical wear, and extends motor lifespan.
• Smart home integration – seamless compatibility with Home Assistant (ZHA & Zigbee2MQTT).
• Zigbee signal repeater – works as a router to strengthen and expand the Zigbee network.

Smart Home Protocols & Platform Compatibility

• Protocol: Zigbee 3.0.
• Local control: via Zigbee hub (e.g., Home Assistant, Zigbee2MQTT).
• Default platform: eWeLink app via Zigbee gateway.
• Cloud integration: remote control available through the eWeLink app with internet connection.
• Supported integrations: Home Assistant (ZHA, Zigbee2MQTT), OpenHAB, Domoticz, and other Zigbee-compatible systems.
• Voice control: Alexa and Google Assistant via eWeLink gateway.

Smart Functions

• Remote control via mobile app.
• Percentage-based shutter/curtain position control.
• Automated scheduling according to daily routines.
• Calibration function for accurate positioning.
• Create smart scenes and automations (e.g., “Lower blinds after sunset”).
• Zigbee repeater function for a more stable network.

Electrical Specifications

• Power supply: 100–240 V AC, 50/60 Hz.
• Load capacity: up to 1A motorized shutter/curtain motor.
• Output: bidirectional motor control (up/down movement).
• Energy monitoring: not supported.
• Dry contact output: not applicable.

Additional Features

• Ultra-compact design – fits easily into standard wall boxes.
• Retrofit solution – upgrades existing motorized shutters/curtains without replacing motors.
• DIY installation – easy wiring for electricians or experienced users.
• Cost-effective – no need to change the motor.
• Reliable Zigbee network – works as a repeater for a more stable system.
