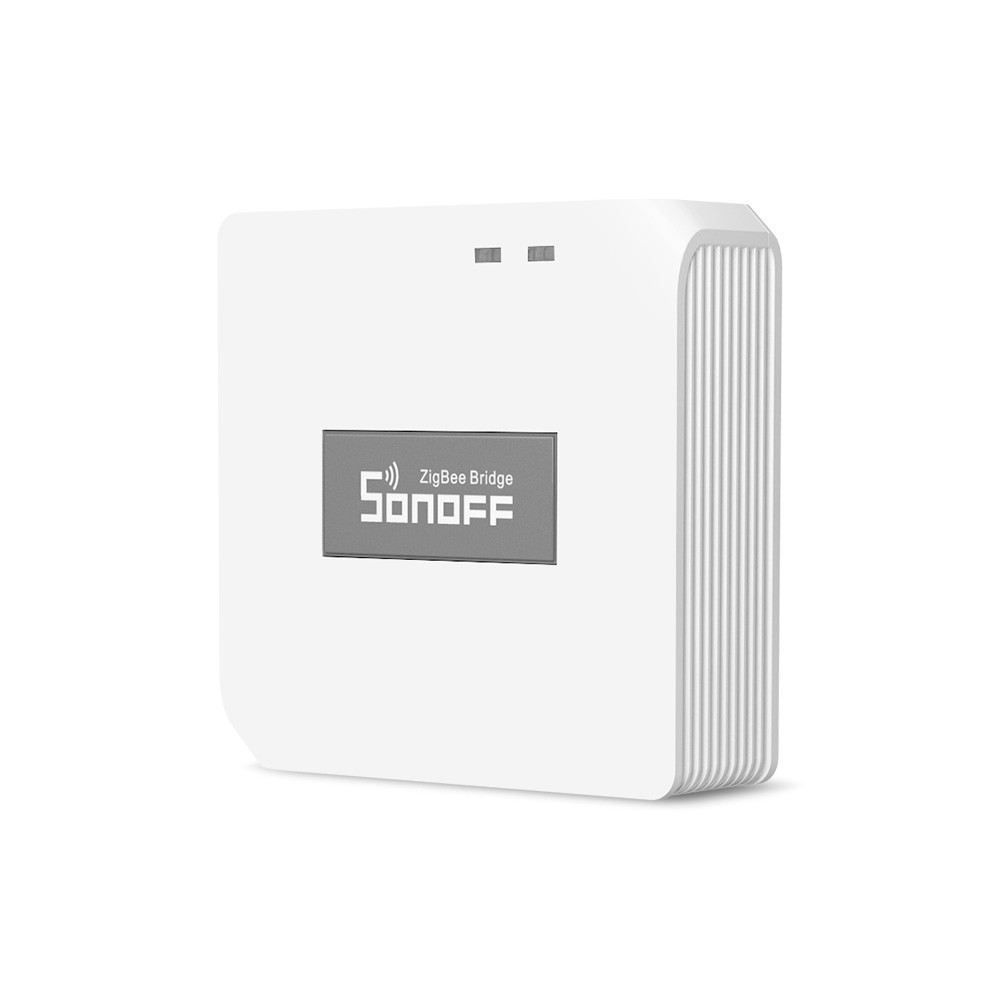

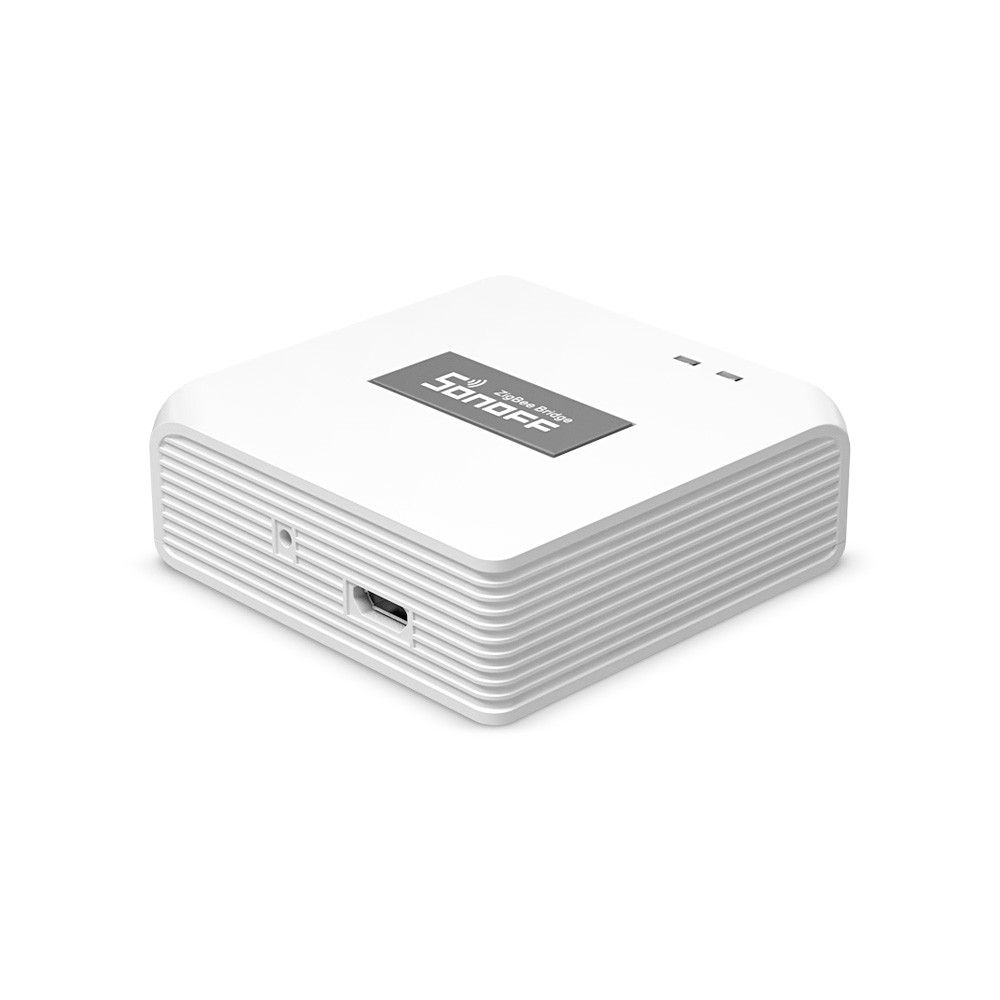

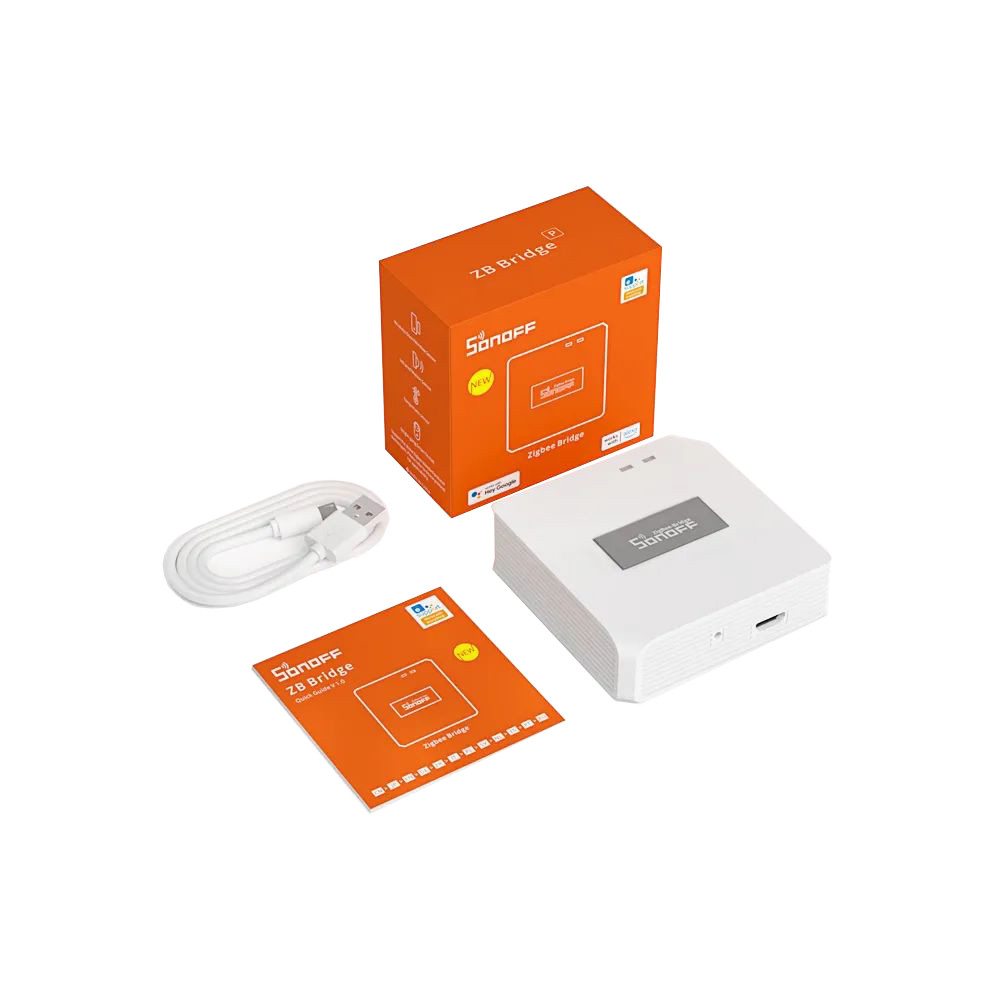

SONOFF Zigbee Bridge Pro - smart Zigbee-WiFi Bridge for eWeLink, with local/offline scenes

Sonoff Zigbee Bridge PRO (ZBBridge-P), Sonoff's 2022 new product, is a bridge or gateway between Zigbee protocol smart devices (relays and sensors) and the WiFi-based other Sonoff devices, connected through Sonoff's eWeLink Cloud. It also allows you to create smart scenes to make Wi-Fi and ZigBee smart devices communicate to access a smarter home and control them all using the eWeLink APP. It maximizes efficiency for up to 128 connected sub-devices which are Zigbee-based switches, plugs and security sensors.

Pro version can continue to operate its local automations between Zigbee devices even if its internet connection is lost, while previous Zigbee Bridge version's Scenes required internet connection to run scene based automations. (Note: automations between WiFi and Zigbee devices still need internet connection.)

Zigbee Bridge gateway supports Zigbee 3.0 protocol, and uses the same eWeLink app and eWeLink cloud as other WiFi and RF-based Sonoff and SmartWise devices, therefore it's a practical device to connect Zigbee sensors with other WiFi smart relays and switches into one smart home or smart office system.

As of 20 October, bridge firmware v1.2.0, it is only compatible with Sonoff's Zigbee smart sensors, relays and plugs, and Gledopto Zigbee relays, many SmartWise Zigbee devices are not compatible yet.

It support the mesh network topology, and the Zigbee range can be extended by plug-in other Zigbee 3.0 (230V AC powered) devices.

One-tap pairing all sub-devices, faster than Wi-Fi pairing. It supports to add a camera on the Bridge or sub-devices, convenient to view your home on any one of them. Can also command Alexa or Google Home to voice control your home.

ZB Bridge-P can connect 26 sub-devices directly (e.g. 10 end devices + 16 routers, or 26 routers). If you want to connect as much as max. 128 sub-devices, devices with Zigbee router feature are required in the Zigbee network, and one router-device can expand to connect 20-32 sub-devices.

Product features:

• Remotely control Zigbee devices and also Wi-Fi devices on eWeLink APP.
• One-tap quick pairing all sub-devices to be connected.
• Long-distance ZigBee signal transmission covers almost your entire home, up to 80m range (in open space).
• Compatible with a wide variety of SONOFF ZigBee smart plugs, switches, wireless switch and sensors for more smart scenes.
• Supports up to 128 Zigbee devices in total in its Zigbee network, with max 26 devices directly connected to it.
• Hands-free control connected devices by virtue of Alexa or Google Home.
• Support device sharing with your family to control together.
• Group devices and access to control them via the home page of APP instead of sub-devices.
• View your home on either of them via adding a camera on the Bridge or sub-device.
• Supports sending push notifications to the phone from a Zigbee motion control sensor and Sonoff's Zigbee Door Window sensor.
• Operates from standard MicroUSB 5V (1A) power adapter (not part of the product).
• Scenes between local Zigbee devices continue to run in offline mode.
