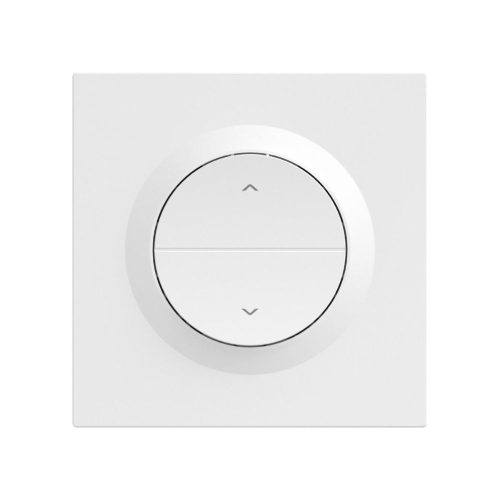

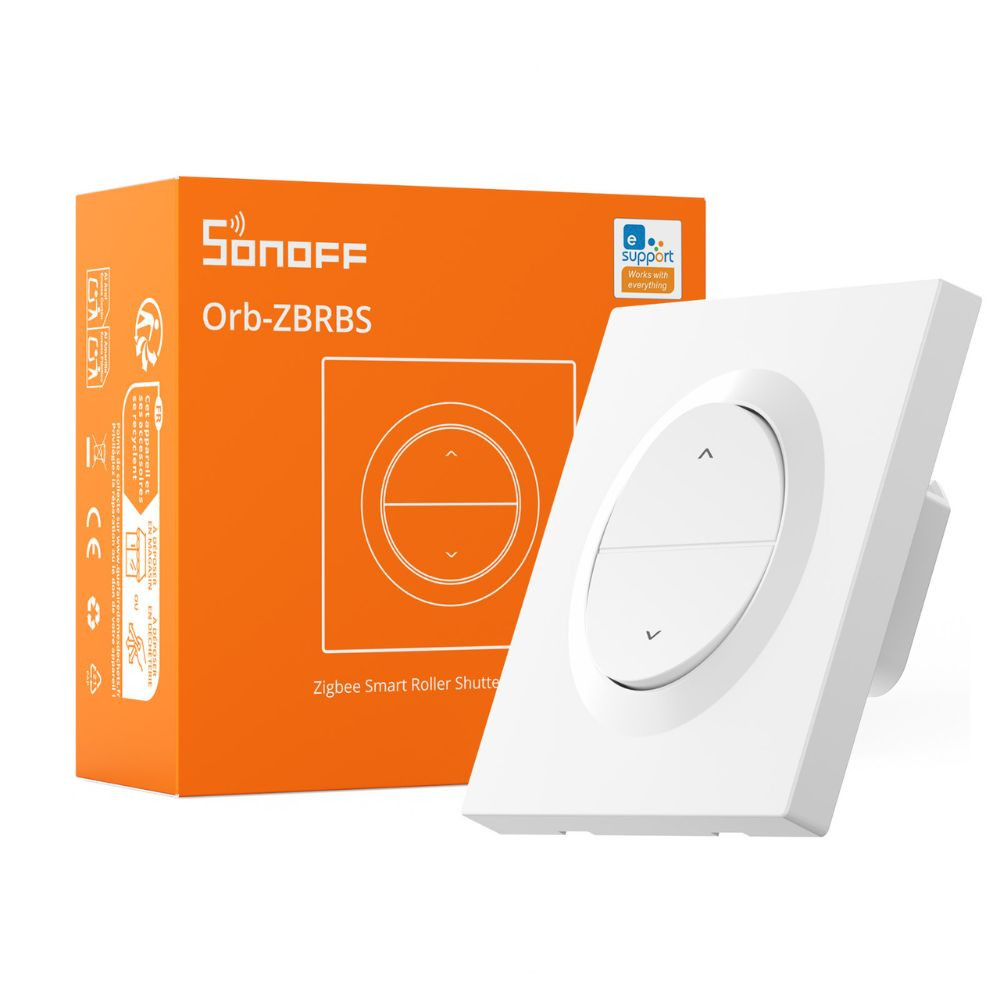

SONOFF Orb-ZBRBS Smart Roller Shutter Wall Switch – Mini relay module + wall switch, Zigbee, white (MINI-ZBRBS-E)

The SONOFF Fusion Series Orb‑ZBRBS is a Zigbee smart roller shutter wall switch that transforms traditional electric blinds, curtains, or motorized shades into remotely controllable devices. At its core, it features the well-known Mini-ZBRBS module. The switch connects to a compatible Zigbee hub via the Zigbee 3.0 protocol, enabling control through mobile app, automation routines, or voice assistants. This allows you to conveniently manage the position of your blinds, schedule opening/closing, and integrate them into your smart home system.

The Orb‑ZBRBS enables precise percentage-based position control (e.g. 25%, 50%, or 80%), supports daily schedules and scenes, and enhances Zigbee network stability with its signal repeater (router) function. Its modern, white, flush-mounted design fits most European wall boxes and interiors. With the optional frame accessory, it can be neatly grouped with existing switches. It’s important to note that the maximum supported load is 1 ampere – it is not suitable for larger motors over 30 Nm.

Brand Overview – SONOFF

SONOFF is a globally recognized smart home brand offering affordable yet reliable wired and wireless switches, relays, and automation devices. Their products are compatible with popular protocols and platforms such as Zigbee 3.0, eWeLink, Home Assistant (ZHA/Zigbee2MQTT), Alexa, and Google Home, enabling the easy implementation of advanced smart home automation systems.

Main Features and Smart Functions

• Zigbee 3.0 protocol – reliable and fast wireless communication.

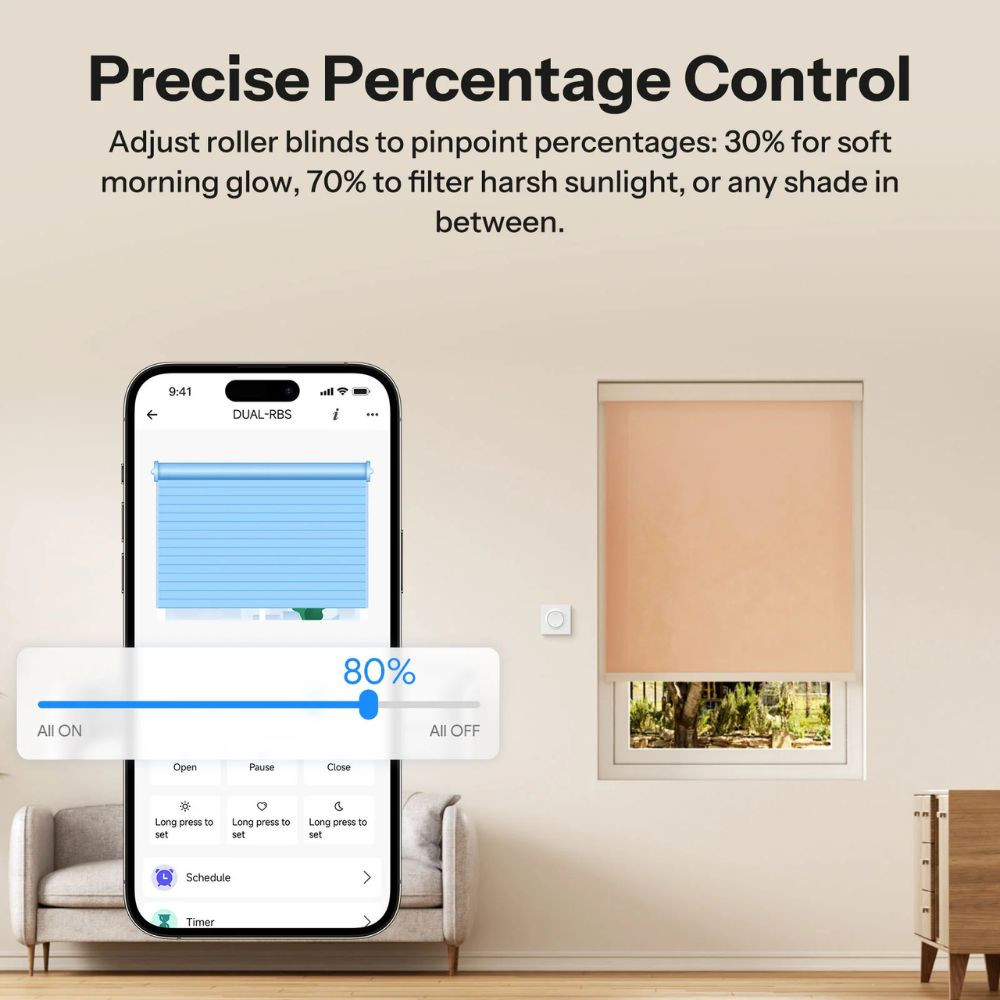

• Precise percentage control – set blind/curtain positions to any percentage.
• Schedules and scenes – automate opening/closing based on daily routines or time of day.
• Voice control support – works with Alexa and Google Home (depending on hub/platform).
• Zigbee router function – strengthens and stabilizes your Zigbee network.
• Built-in physical buttons – allows local manual control even without network or internet access.

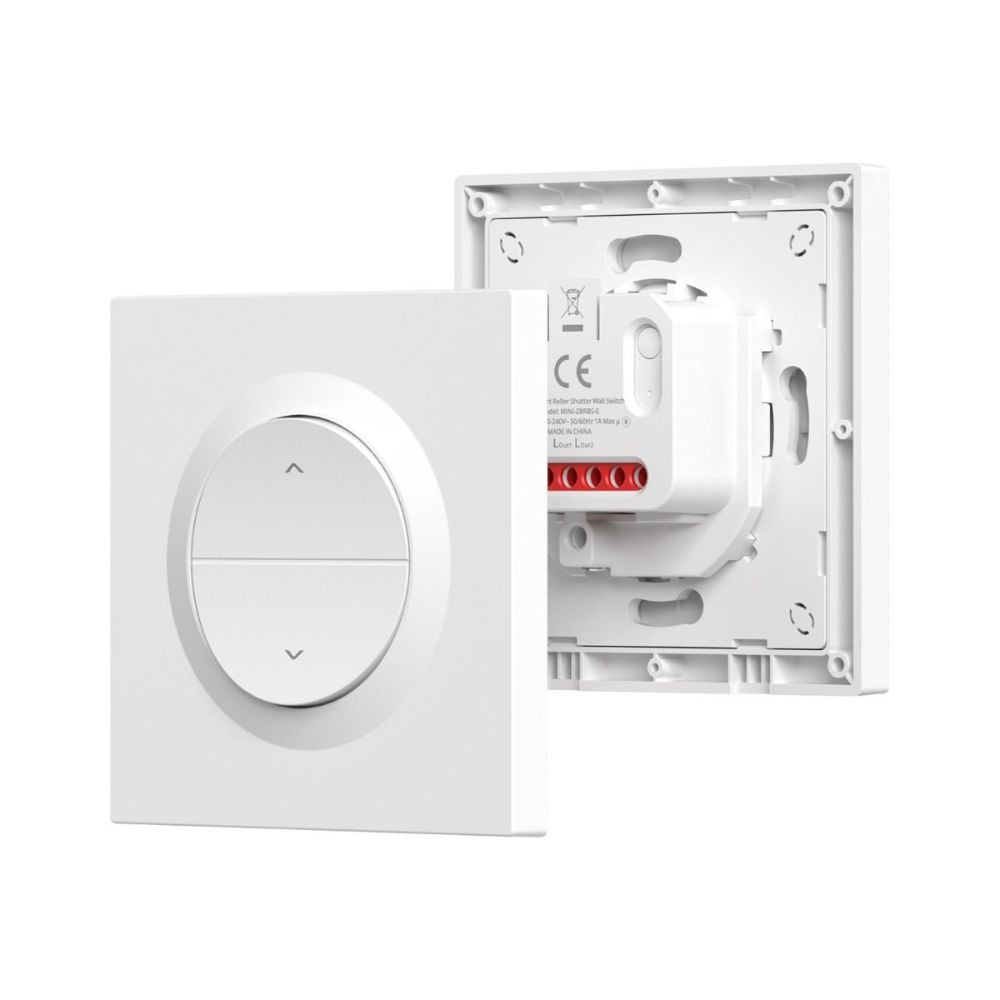

• Elegant flush-mount design – fits standard European wall boxes.

Smart Home Protocols and Platform Compatibility

• Communication protocol: Zigbee 3.0 (IEEE 802.15.4)
• Compatible platforms: eWeLink, Home Assistant (ZHA), Home Assistant (Zigbee2MQTT)
• Compatible Zigbee hubs: SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro, SONOFF iHost, SONOFF ZBDongle-P, ZBDongle-E
• Supported functions: Open / Pause / Close, Percentage Adjustment, Motor Calibration (also possible via device button), External Wall Switch Mode, Timer, Motor Rotation Direction, OTA firmware updates
• Note: If pairing with the Zigbee gateway fails, ensure that your hub is running the latest firmware version. Philips gateway and Fritz!Box Zigbee router are not supported.

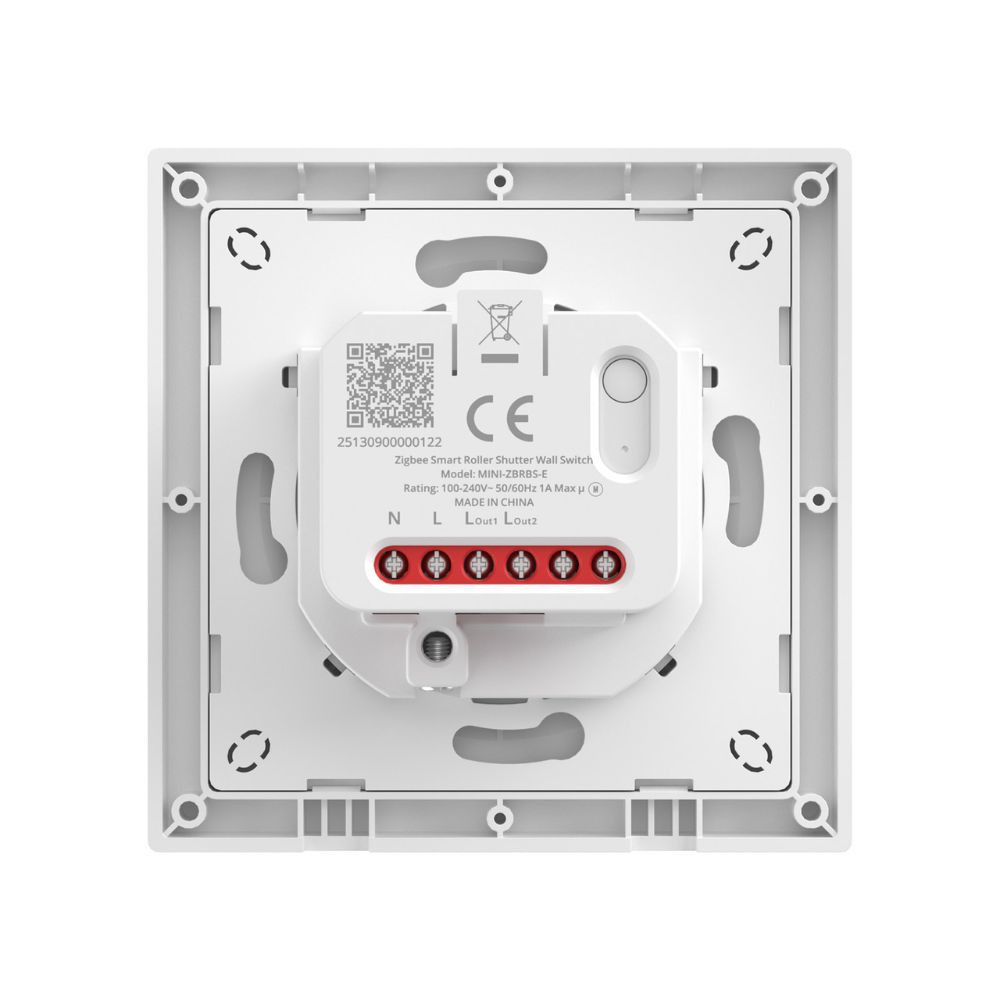

Electrical and Operational Characteristics

• Power supply: 100–240 V~ AC, 50/60 Hz
• Max motor load: 1 A
• Neutral wire required: Yes
• Manual control: Physical buttons for up/down operation
• Application: Suitable for standard roller shutters or motorized blinds

Other Features

• Modern, minimalist design with white casing
• Easy installation into standard EU wall boxes
• Combined local and Zigbee-based control

Technical Specifications

• Product name: Orb-ZBRBS
• Series: Fusion series
• Type: Zigbee smart roller shutter wall switch
• Model: MINI-ZBRBS-E
• MCU: Silicon Labs EFR32MG21
• Wireless protocol: Zigbee 3.0
• Zigbee router function: Yes (extends the network)
• Integration options: eWeLink, Home Assistant (ZHA, Zigbee2MQTT)
• Voice assistant compatibility: Amazon Alexa, Google Assistant (via supported hubs)
• Power supply: 100–240 V~ 50/60 Hz
• Maximum load: 1 A (for shutter motor)
• Neutral wire required: Yes
• Manual control: Built-in buttons (Up/Down)
• Precise position control: Yes, with percentage adjustment
• Schedules and scenes: Supported
• Dimensions: 86 × 86 × 34 mm
• Net weight: 84.1 g
• Color: White
• Housing material: PC (polycarbonate)
• Recommended wiring: 18 AWG – 14 AWG, solid or stranded copper
• Installation: Flush mount (EU standard wall box)
• Environment: Indoor use only
• Operating temperature: -10 ℃ to +40 ℃
• Operating humidity: 5–95% RH, non-condensing
• Certifications: CE, RoHS
