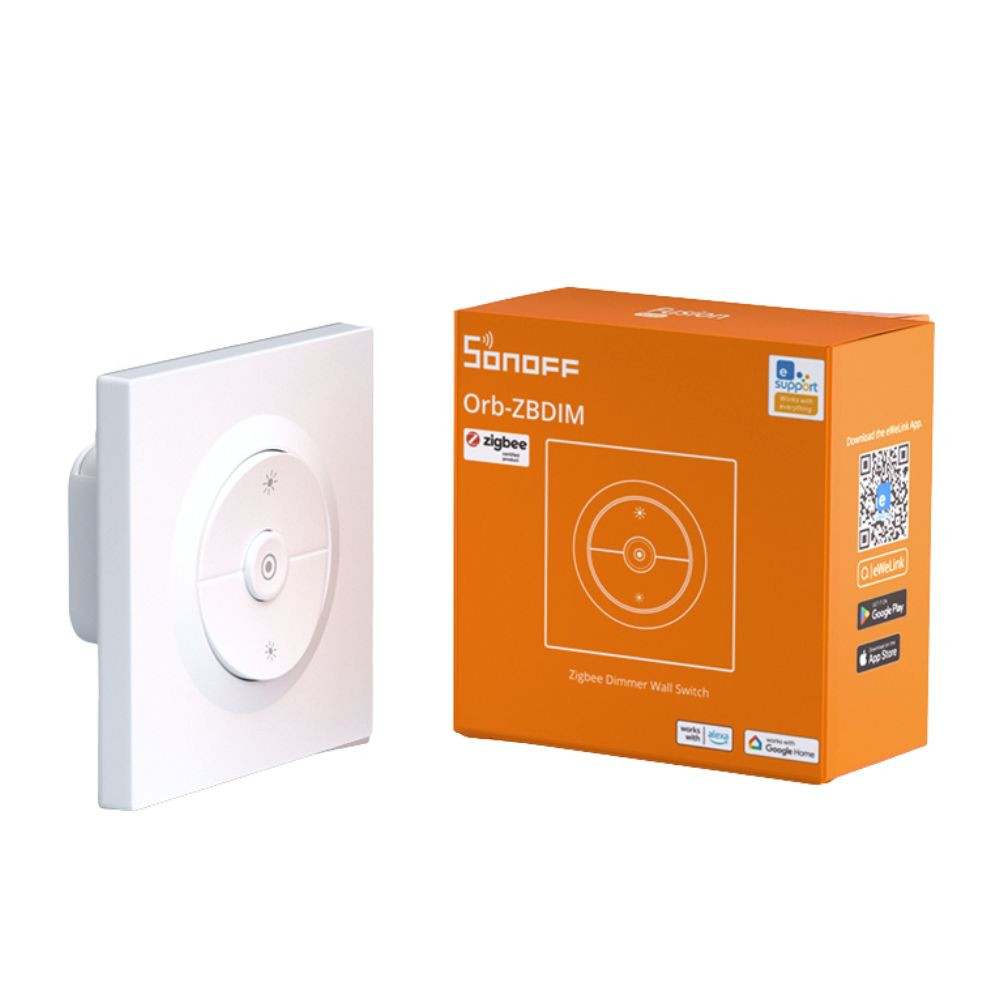

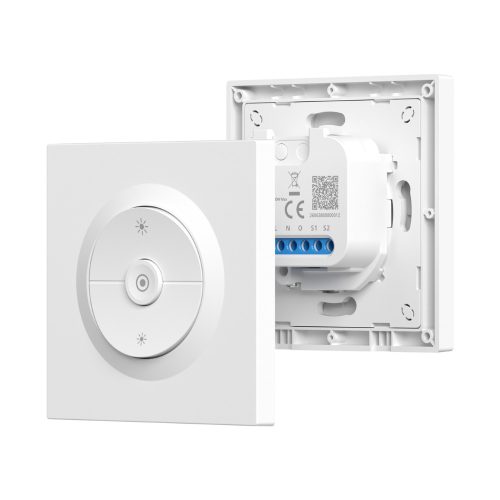

SONOFF Orb-ZBDIM Zigbee Dimmer Wall Switch – dimmer switch with power monitoring, Zigbee, white (MINI-ZBDIM-E)

The SONOFF Orb-ZBW2L (MINI-ZB2GS-L-E) is an ultra-compact, live-wire only, dual-channel Zigbee 3.0 smart relay module with an integrated wall switch — allowing you to replace your existing light switches with a sleek yet modern smart alternative. The switch fits into a standard wall box and can control two independent lighting circuits. It supports a total load of up to 16 A (maximum 10 A per channel for resistive loads), offering scheduling, scene control, and group management.

The built-in Zigbee signal repeater improves network stability, while the external wall switch inputs ensure you can still use familiar manual controls. Compatible with popular platforms such as Home Assistant (ZHA / Zigbee2MQTT), Alexa, Google Home, and SmartThings, it integrates seamlessly into your smart home system.

It's an ideal choice for renovations or retrofitting, where you want to control two separate circuits with a modern smart switch and discreet in-wall installation — with quick setup and reliable Zigbee connectivity.

About the SONOFF Brand

SONOFF (ITEAD) is one of the most recognized manufacturers in the DIY smart home community. Their affordable yet versatile Wi-Fi and Zigbee devices offer easy installation, stable performance, and broad compatibility with systems like eWeLink, Home Assistant, Google Home, and Amazon Alexa.

Key Product Features

• Dual-channel, compact design: control two independent circuits with a single in-wall module.
• Reliable Zigbee 3.0: fast pairing and stable connectivity; includes a built-in Zigbee repeater to enhance network quality.
• External switch support: compatible with both rocker and momentary push-button switches; switch type can be changed using the module button.
• Timers and scenes: schedule-based automation, group control, and smart scenes for easier day-to-day operation.
• Power-On State: configurable behavior after power outage (ON / OFF / Last State).

Smart Home Protocols and Platform Compatibility

• Protocol: Zigbee 3.0 (IEEE 802.15.4)
• Compatible gateways/platforms: SONOFF ZBBridge-P / -U, NSPanel Pro, iHost, ZBDongle-P / -E; also works with Home Assistant (ZHA and Zigbee2MQTT)
• Voice control and ecosystems: Amazon Alexa, Google Home, Samsung SmartThings (depending on hub support)
• Local automation: scenes and rules via your Zigbee hub; LED and button on the module assist with pairing and status indication

Smart Features

• Remote ON/OFF and status feedback: control and monitor from the app or your hub
• Schedules and timers: automate switching based on time and daily routines
• Scenes and groups: coordinate multiple devices for whole-room control
• External switch modes: supports both momentary and toggle switches; mode can be changed with triple-press of the module button
• Advanced Zigbee2MQTT options: supports features like detach relay mode, external trigger mode, and pulse switching (depends on hub/firmware support)

Technical Specifications

• Product/Series: Orb-ZBW2L
• Type: 2-gang Zigbee smart switch (neutral wire required)
• Model: MINI-ZB2GS-L-E
• MCU/Radio: Silicon Labs EFR32MG21 (Zigbee 3.0)
• Input voltage: 110–240 V~ 50/60 Hz (single-phase)
• Rated load: 10 A per channel; max. 16 A total (resistive load)
• External switch inputs: S1 (channel 1), S2 (channel 2); do not connect to neutral or ground
• Recommended wiring: 16–14 AWG solid/stranded copper
• Dimensions / weight: 45 × 39.4 × 16.8 mm; approx. 36.2 g
• Housing / color: PC, white
• Operating environment: indoor use; −10 to +40 °C; 5–95% RH (non-condensing)
• Certifications: CE / FCC / RoHS
• Button functions: press for 5s – pairing mode; press 3× – toggle external switch mode; press for 10s – factory reset
