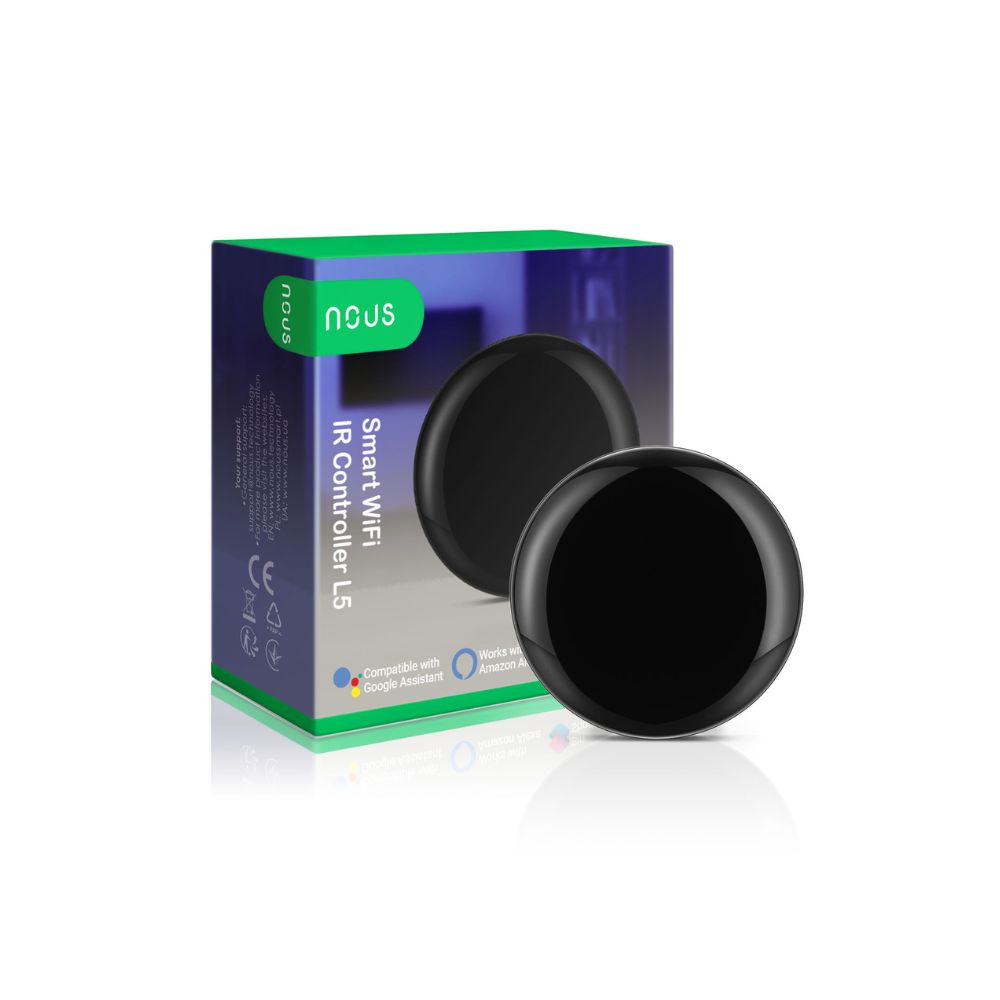

Nous L5 smart Tuya Wi-Fi IR (infrared) controller

Transform your home with the Nous L5 smart Tuya IR gateway/controller module that uses the popular Tuya smart home platform to control and automate traditional infrared devices (e.g., TVs, air conditioners) in its environment.

NOUS L5 is essentially a Wi-Fi smart universal remote control, enabling easy control of home IR (infrared) devices such as TVs, air conditioners, fans, and other appliances. This modern and elegant remote control turns any IR device into a smart device, making your home more convenient and intelligent.

What is the Tuya / SmartLife smart home platform and app?

Tuya is a popular cloud-based smart home platform that offers integrated solutions for various smart home devices and applications. The platform allows for quick and easy pairing, remote control, and management of devices through a single app interface. Tuya, also known as SmartLife, provides users with a comprehensive smart home ecosystem that includes devices from numerous manufacturers.

It supports voice control, remote access, and automated processes (scenes). The Tuya platform has cloud-based integration with a range of other smart home ecosystems, such as Amazon Alexa, Google Assistant, and SmartThings, making Tuya devices usable on these platforms. Tuya, similar to the global eWeLink platform, is also a cloud-based system, but the quality of available Tuya devices can vary significantly.

In the Tuya lineup, the European Nous brand offers consistently high-quality Tuya devices. These devices can be used with Nous's own app or the standard Tuya app.

Main Features:

• Remote and voice control: Control your devices from anywhere using the smartphone app or voice commands. The controller is compatible with Alexa and Google Assistant, allowing you to control the device with voice commands.
• Automation and scheduling: Create timers, schedules, and custom scenes. With this controller, you can set the air conditioner to turn on automatically before you arrive home.
• Easy installation: No additional hubs or cables are needed. Simply plug in the device, connect it to your Wi-Fi network, and start controlling your devices with the Tuya app.
• Wide compatibility: Supports all 2.4GHz Wi-Fi networks and multi-directional IR signals. It works reliably up to 10 meters away and can control multiple devices simultaneously.

Technical Specifications:

• Certifications: CE, RoHS
• Size: 67 x 67 x 19.5 mm
• Voltage: 5V
• Rated current: 1A
• Operating temperature: 0~50°C
• Standby power consumption: <0.5W
• Operating humidity: ≤85% RH
• IR frequency: 38K
• IR direction: multi-directional, infrared
• IR distance: ≤10m (depending on environment)
• Network frequency: Wi-Fi 2.4GHz 802.11 b/g/n
• Material: ABS
