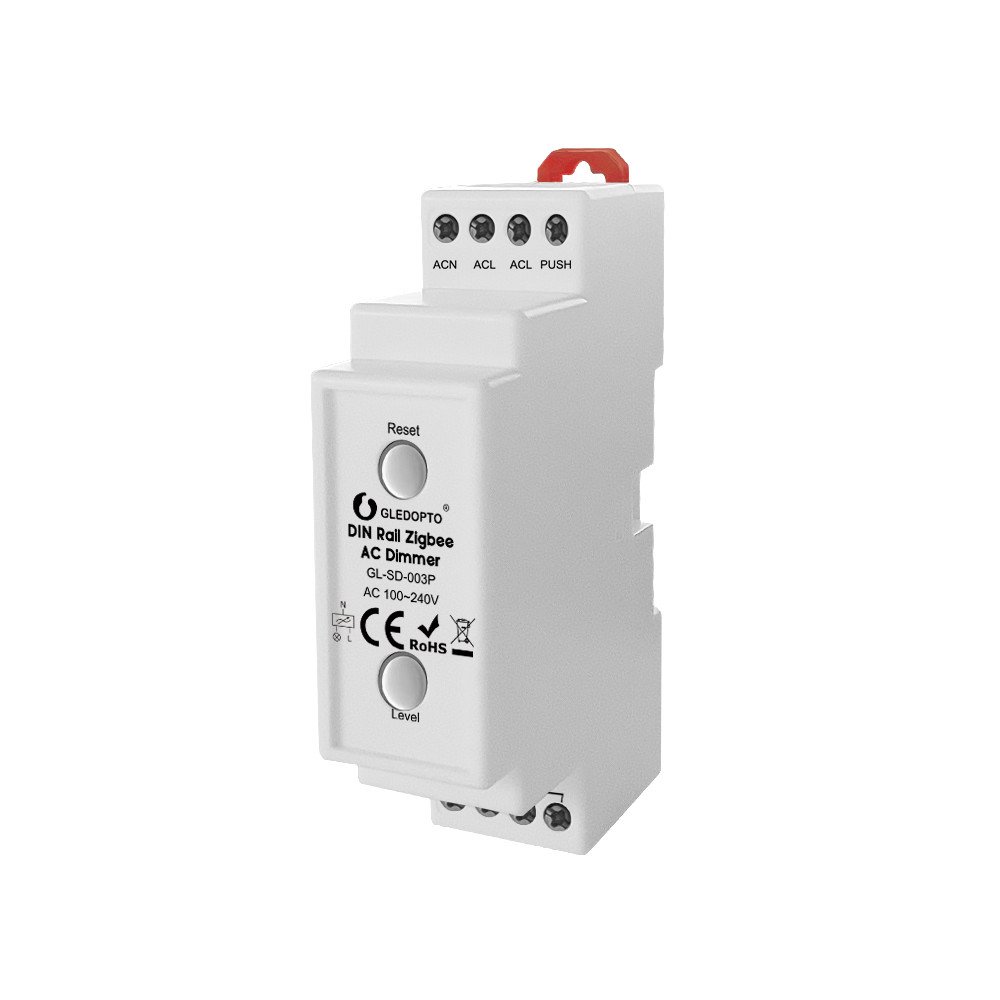

Gledopto GL-SD-003P, Pro AC Dimmer, DIN-rail compatible, ZigBee + RF, eWeLink / Tuya / SmartThings / Philips Hue

Gledepto's Zigbee Pro product line offers innovative, professional smart LED controllers that connect to a smart home system via Zigbee 3.0 protocol. Pro devices can also be remotely controlled locally from 2.4GHz RF remote controllers and wireless RF wall panels, and support Alexa and Google Home voice control (depending on the Zigbee gateway).

Gledopto Pro devices offer extremely broad compatibility, pairing and control with all major Zigbee 3.0 gateways: they are compatible with Sonoff ZBBridge (Zigbee Bridge) and SmartWise eWeLink Zigbee gateways, Tuya/SmartLife Zigbee gateways, Philips Hue bridge, Aeotec SmartThings hub, homee, ConBee II, Hubitat Elevation, Amazon Alexa devices with Zigbee gateway, among others.

In addition, the Pro Series products can be remotely controlled by Gledopto's 2.4GHz LED remote control and wireless wall panel, so that not only smart control but also local remote control is available for the products.

The Gledopto AC dimmer can be easily installed in an electric cabinet on a DIN-rail. It does not require a separate power supply, as both the input and output sides use 100-240V AC. It has a maximum rated output power of 400W on the output side, and 200W for dimmable LEDs.

The minimum brightness level can be set with a button on the device, below which the dimmer will not let the brightness drop, thus preventing flickering of light sources at low brightness levels.

The device can be used to adjust the brightness of :

• dimmable LED lights/drivers,
• incandescent or HV halogen lamps,
• LV halogen lamps powered by electronic transformer

The smart dimmer can be controlled in three ways:

1. From wall-mounted push-button switch(es): if you press the switch briefly, it switches the light sources on and off, if you hold it down, it controls the brightness.

2. 2.4GHz radio frequency (RF) remote controllers and wireless RF wall panels

3. via the Zigbee gateway (manually from your phone or via smart home automation)

Product features:

• AC dimmer for dimming 230V AC light sources
• Easy integration with Zigbee wireless smart home controls
• Compatible with almost all major Zigbee gateways. Sonoff / eWeLink with Zigbee gateways, Tuya/SmartLife with Zigbee gateways, Philips Hue bridge, SmartThings / Aeotec with gateway, homee, ConBee II, Hubitat Elevation, Amazon with Zigbee gateways.
• Smart home app - depending on the Zigbee gateway (eWeLink / Tuya / SmartLife / Hue / SmartThings / Apple Home / Google Home / Alexa / etc.)
• Zigbee mesh function: yes
• Voice control - Google Assistant or Alexa, depending on the Zigbee gateway
• Can be controlled from 2.4GHz RF remote controllers and RF wall panels (separately sold products), no Zigbee or other hub required for RF remote control

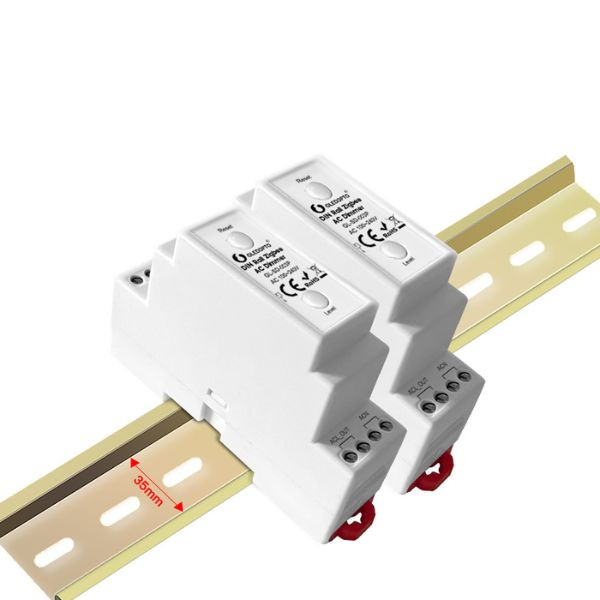

• DIN-rail mounting in electrical cabinets
• Controlled circuit: max 1.5A / 400W, for dimmable LED: 200W
