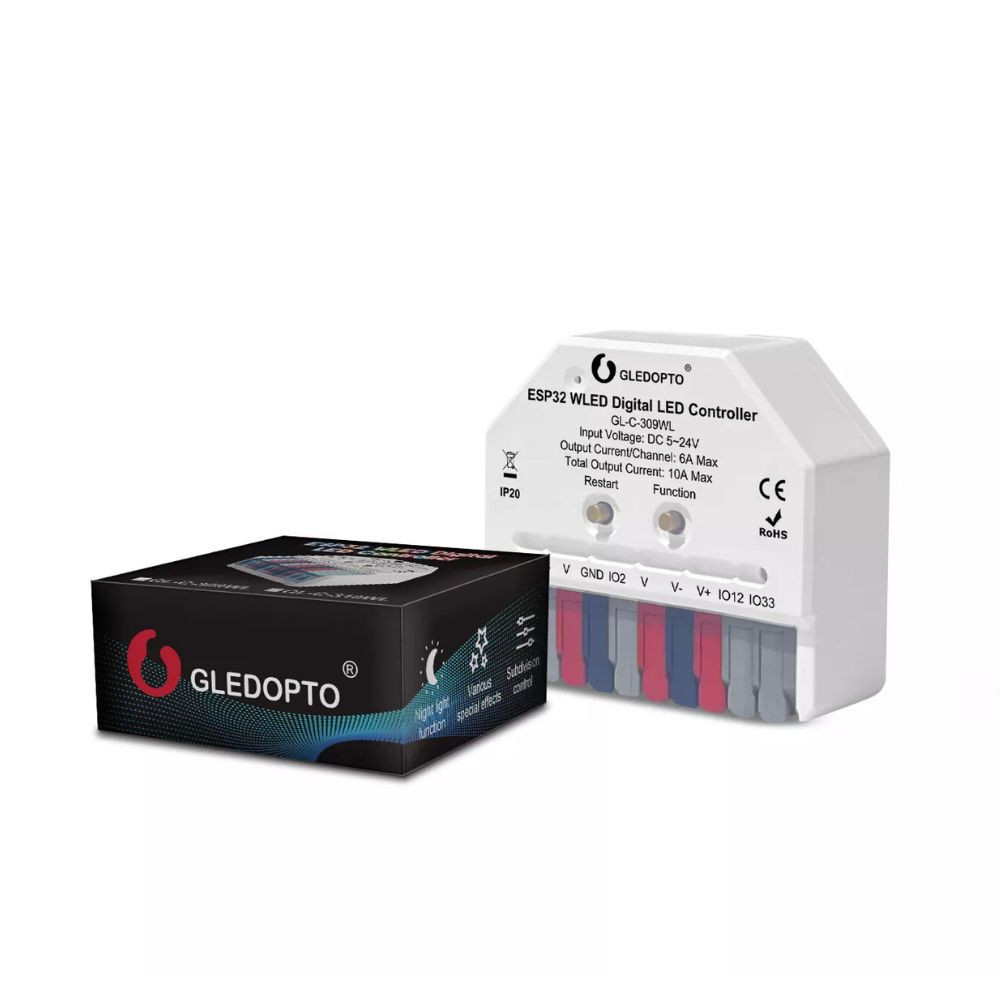

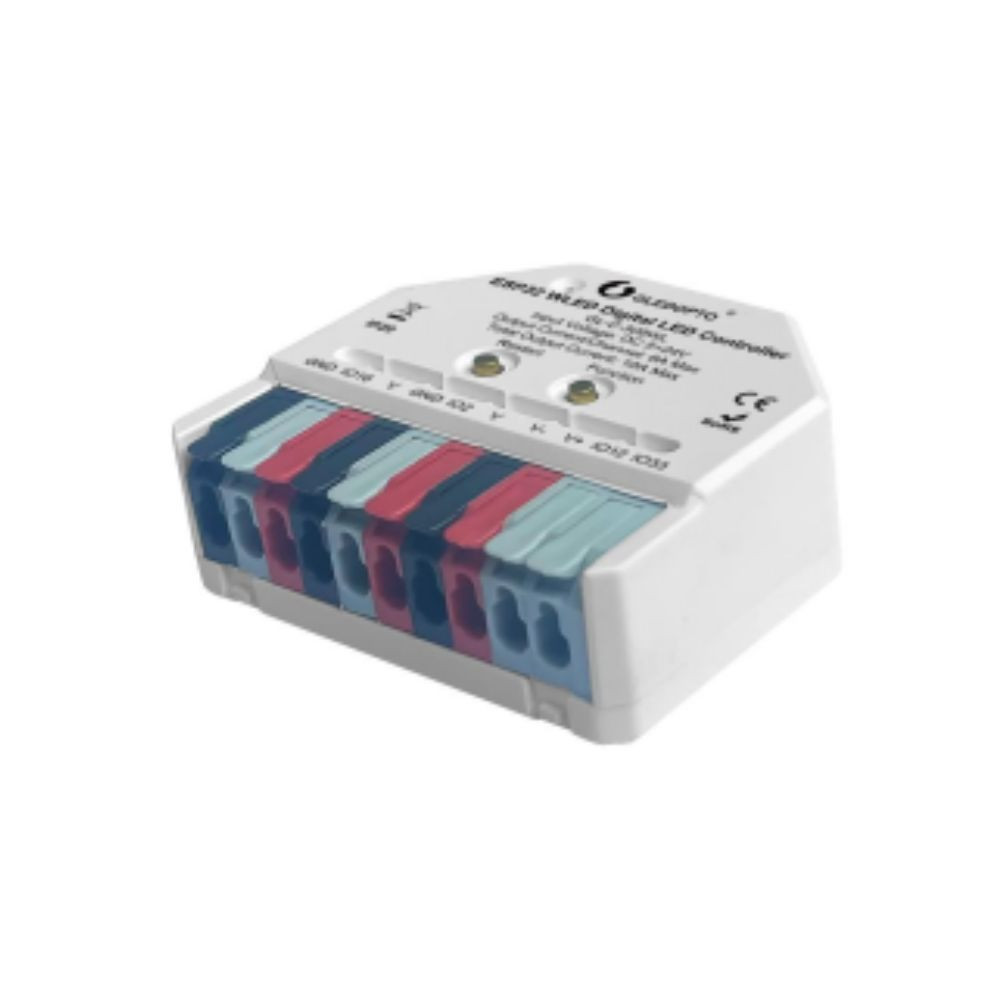

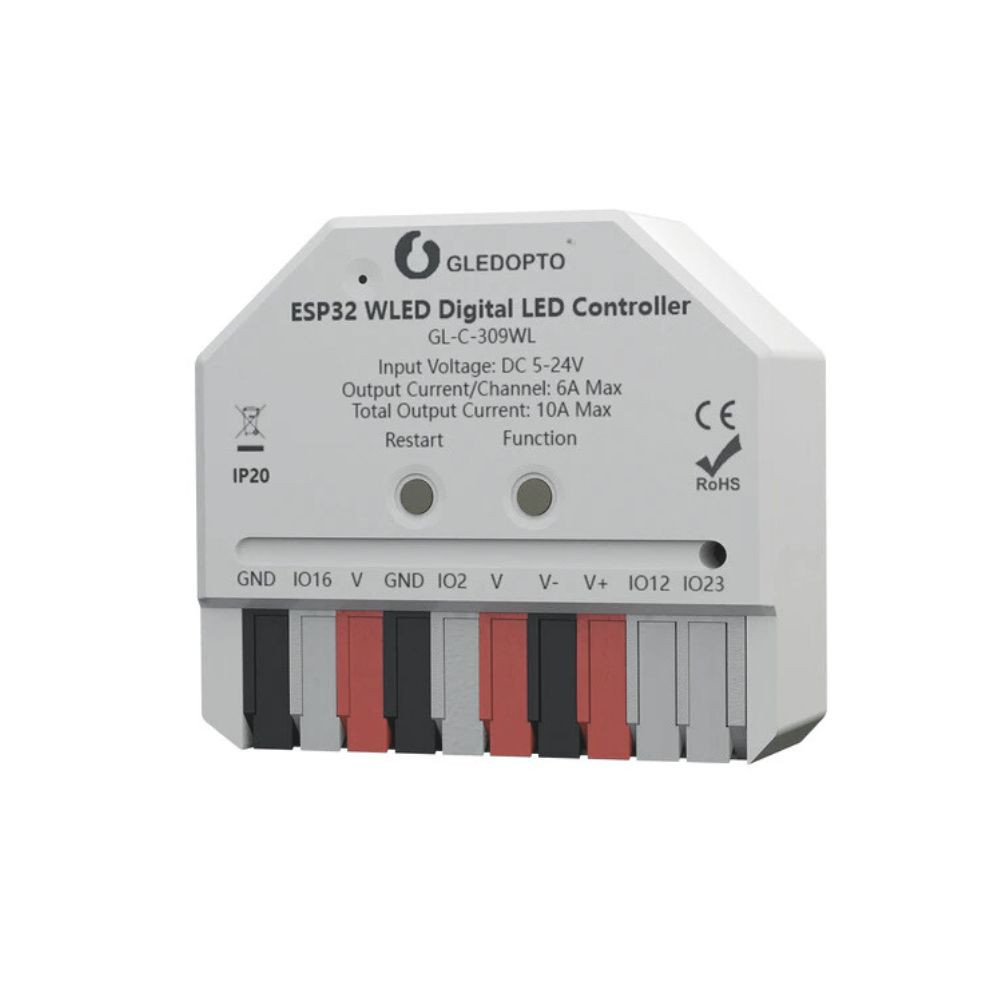

Gledopto GL-C-309WL Ultra Mini smart Wi-Fi IC LED strip controller, with WLED firmware

The Gledopto GL-C-309WL is an ultra-mini WLED digital LED pixel strip controller, designed to offer smart control for LED strips via Wi-Fi. With a compact design and support for a wide range of IC LEDs, this controller is ideal for modern smart lighting solutions requiring precise control over digital LED strips.

Brand Introduction

Gledopto is a popular smart home brand renowned for its quality smart lighting solutions, offering high-quality smart LED bulb and LED lamp products.

Gledopto's products are renowned for their quality materials and design, reliability, and good compatibility with various smart home ecosystems.

About the WLED series of Gledopto LED controllers:

WLED is an open-source platform developed for controllers with ESP chips. The sole purpose of these controllers is to control digitally addressable LEDs. The platform supports various types of digital LED strips and offers flexible configuration options and pre-created control modes for users.

Key Features

• Ultra-Mini Design: Compact and lightweight, ideal for small spaces and discrete installations.
• WLED Compatibility: Supports WLED protocol for advanced digital LED strip control.
• Wide Input Voltage Range: Operates with 5V-24V DC, making it versatile for various setups.
• High Current Capacity: Capable of handling up to 10A per channel.
• Wi-Fi Connectivity: Allows for remote control and integration into smart home systems via Wi-Fi.
• Quick Connector: Easy installation and setup with the included quick connector.
• Broad IC Compatibility: Supports various ICs, including WS2812B, WS2813, SK6812, and others.

Smart Home Protocols and Integrations

This controller uses Wi-Fi for connectivity, allowing integration with smart home systems that support Wi-Fi communication protocols. It is compatible with Home Assistant and similar platforms for smart automation and control.

Technical Specifications

• Model Number: GL-C-309WL
• Input Voltage: 5-24V DC
• Max Load Power: 240W
• Max Current per Channel: 10A
• Output Channels: 2 Channels
• Controlling Protocol: WLED
• Remote Control Distance: 30 meters
• IC Compatibility: WS2811, WS2812B, WS2813, WS2815, SK6812, SM16703P, TM1814, etc.
• Shell Material: ABS Material

This product is ideal for those seeking a compact yet powerful controller for digital LED strips, offering advanced control features and broad compatibility within smart home ecosystems.
