Gledopto GL-C-211WL smart Wi-Fi PWM WLED controller for analogue (RGB, RGBW, RGBCCT, CCT, single-color) LED strips

Name: Gledopto GL-C-211WL smart Wi-Fi PWM WLED controller for analogue (RGB, RGBW, RGBCCT, CCT, single-color) LED strips
Brand: Gledopto
SKU: GLE-REL-C211WL
Availability: InStock

in stock (58 pcs)

Brand:

Gledopto

The Gledopto GL-C-211WL is an advanced PWM dimmer LED controller based on the ESP32 chip, designed for professional control of various analog LED strips, such as RGB, RGBW, RGBCCT, CCT, and single-color strips. Thanks to its WLED firmware, it integrates well into open-source smart home environments and supports control via a local web interface, providing professional lighting management for users.

FOR SAME DAY DISPATCH

Don’t miss today’s dispatch – order now!

Details
Data

Details

Product Overview

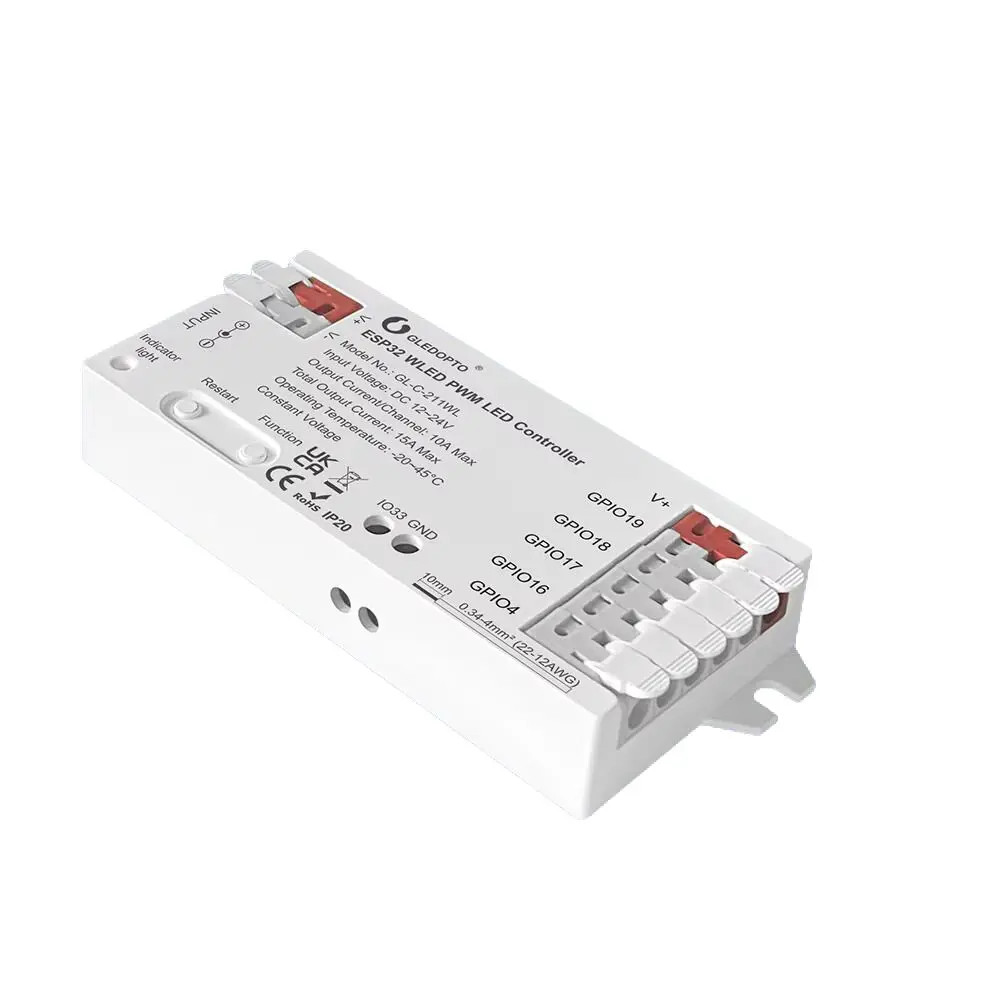

The Gledopto GL-C-211WL is an advanced PWM dimmer LED controller powered by the ESP32 chip, tailored for precise control of various analog LED strips, including RGB, RGBW, RGBCCT, CCT, and single-color strips. With its WLED firmware, it offers excellent integration into open-source smart home systems, supports local web-based control, and delivers professional-grade lighting management. It features a built-in ESP32 chip and supports analog LED strips with 12V-24V DC power input. The maximum rated current at the output is 10A per channel, with a total of up to 15A.

About GLEDOPTO
Gledopto is a popular smart home brand known for its high-quality smart lighting solutions, including premium smart LED bulbs and LED lamps. The WLED series stands out for its extensive and seamless integration with numerous open-source systems like Home Assistant and its support for local LAN-based control. Gledopto products are renowned for their quality materials, design, reliability, and compatibility with various smart home ecosystems.

Key Features

Versatile LED Strip Compatibility: Supports a wide range of analog LED strips, including RGB, RGBW, RGBCCT, CCT, and single-color dimmers, enabling flexible lighting configurations.
Advanced Control Options: Full lighting management via WLED control, with app-based operation, smart voice commands, and WLED remote control, ensuring user-friendly operation.
Durable Design: Made from robust PC material, guaranteeing long service life and reliability in various installation environments.

Smart Home Protocols and Integrations
The GL-C-211WL utilizes open-source WLED firmware, allowing integration with various open-source smart home systems. Users can manage lighting settings with dedicated apps, voice commands, and WLED remotes, fostering a seamless smart home experience. Although the web settings of WLED devices allow for configuring various LED types and control modes, the GL-C-211WL module only supports and connects to analog LEDs.

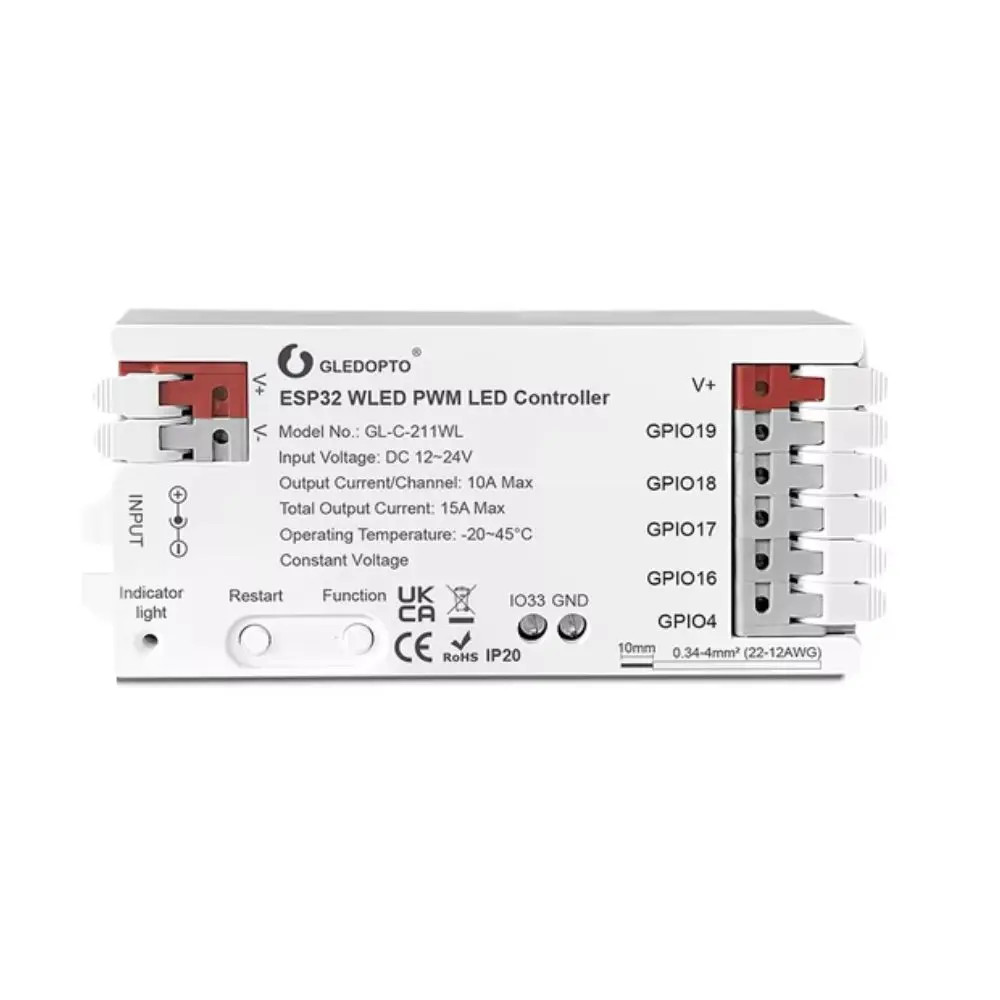

Technical Specifications

Product Name: ESP32 PWM Dimmer WLED Controller for Analog LED Strips
Model Number: GL-C-211WL
Input Voltage: DC12-24V
Total Output Current: 10A/channel, total max. 15A
Maximum Load Power: 360W
Control Mode: App + Voice Commands + WLED Remote Control
Material: PC
Color: White

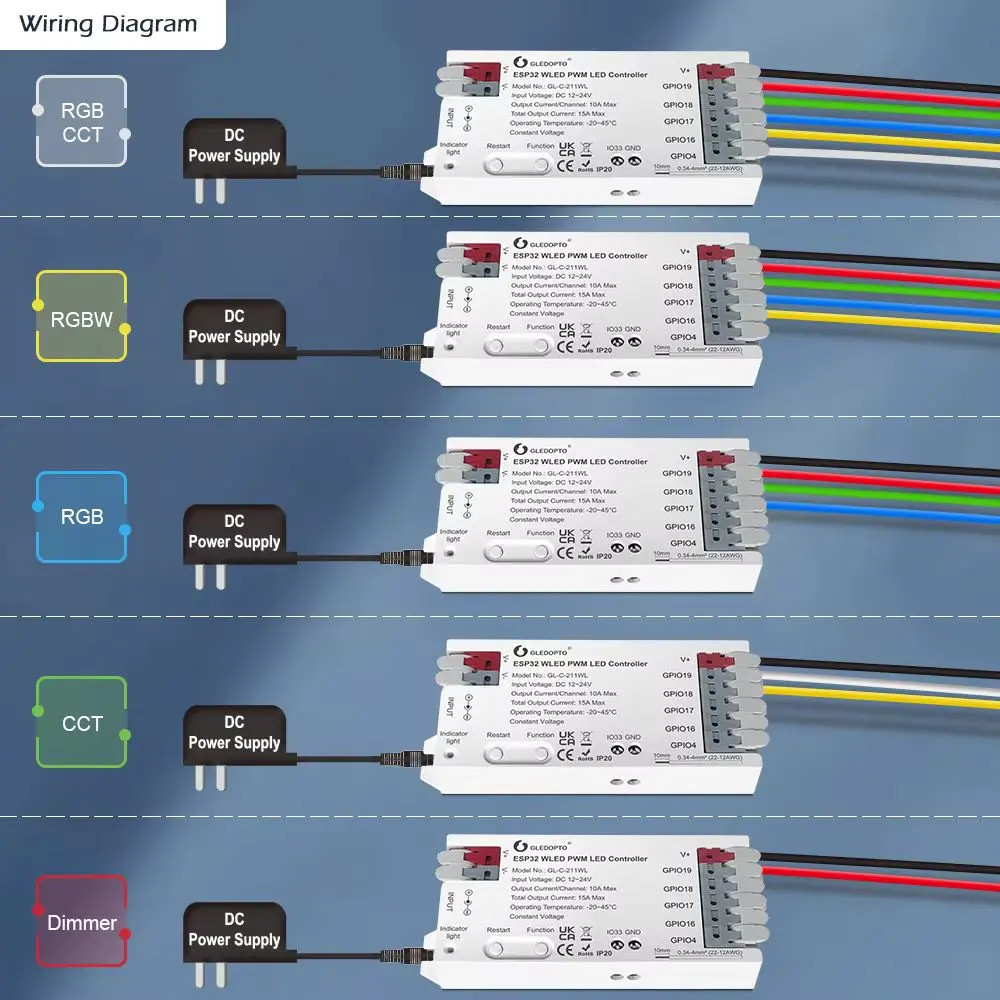

Application: RGB, RGBW, RGBCCT, CCT, and Single-Color Strips

The Gledopto GL-C-211WL is a versatile and reliable solution for those seeking advanced control of analog LED lighting systems, seamlessly integrating into modern smart home environments.

This content is only available to logged in users.

Data

Weight:

63 g/pcs
