Gledopto GL-C-201P, Zigbee Pro 5-in-1 LED controller (Zigbee+RF) 12V-54V DC

Name: Gledopto GL-C-201P, Zigbee Pro 5-in-1 LED controller (Zigbee+RF) 12V-54V DC
Brand: Gledopto
SKU: GLE-REL-C201P
Availability: InStock

Gledopto GL-C-201P, Zigbee Pro 5-in-1 LED controller (Zigbee+RF) 12V-54V DC

Available to order

Brand:

Gledopto

The GL-C-201P Gledopto Pro is a new member of the professional LED control family with Zigbee 3.0 + RF receiver.It can operate in 5 different modes: RGBCCT, RGBW, RGB, CCT (WW/CW) and Dimmer, and can control 12V - 24V DC LEDs with functions according to the type of LED (colour adjustment, colour temperature adjustment for white light, brightness control), making it compatible with almost all LED lighting.

It is compatible with eWeLink (Sonoff and SmartWise) Zigbee Bridge, Tuya / SmartLife Zigbee gateways, Philips Hue bridge, some Amazon Zigbee bridges, Aeotec SmartThings hub, and Terncy (Apple Homekit compatible) Zigbee gateway, and a range of other systems.

Not only can it be automated and remotely controlled via Zigbee from an app, but it can also be remotely controlled via Gledopto's 2.4GHz RF remote control and wireless RF wall panel, and has an input for push-button switches, so it can be controlled from wall switches (on/off and dimming).

FOR SAME DAY DISPATCH

Don’t miss today’s dispatch – order now!

Details
Data

Details

The Gledepto Zigbee Pro range offers innovative, professional smart LED controls that connect to a smart home system via Zigbee 3.0, and Pro devices can also be remotely controlled locally from 2.4GHz RF remote controls and RF wall panels, and support Alexa and Google Home voice control (depending on the Zigbee gateway).

Gledopto Pro devices offer extremely broad compatibility, and can be paired and controlled with all major Zigbee gateways: They are compatible with Sonoff ZBBridge (Zigbee Bridge) and SmartWise eWeLink Zigbee gateways, among others, and work with Tuya/SmartLife Zigbee gateways, Philips Hue bridge, compatible with Aeotec SmartThings gateway, Homee, ConBee II, Hubitat Elevation, Amazon Alexa devices with Zigbee gateway, and can be paired with Terncy (Apple Home compatible) gateway.
In addition, the Pro Series products can be remotely controlled with Gledopto's 2.4GHz LED remote control and wireless wall panel, so that not only smart control but also local remote control is available for the products.

The Gledopto Zigbee Pro 5-in-1 LED controller (Zigbee+RF) (GL-C-201P) is the top of the range model in the Pro range, a 12V-24V DC professional Gledopto Pro product with standard Zigbee 3.0 and 2.4GHz RF capabilities.

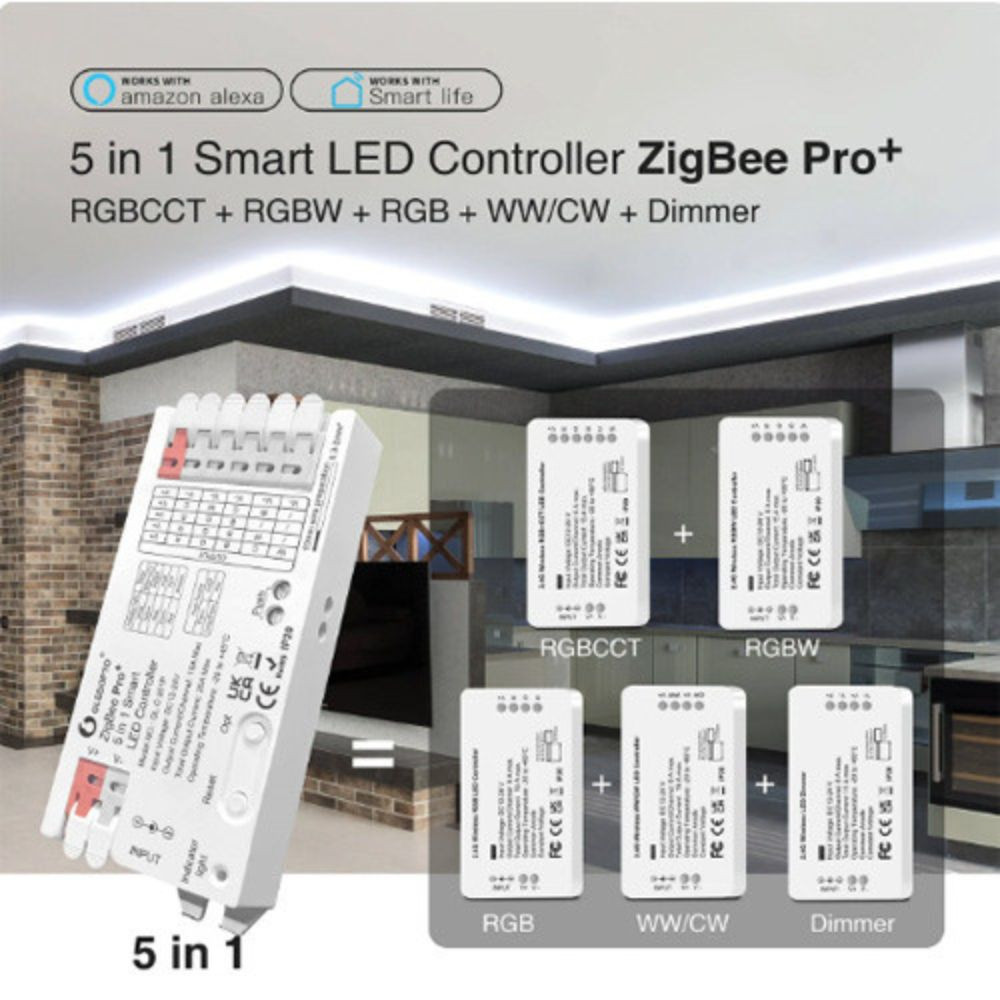

It can operate in 5 modes, making it suitable for a wide range of LED types:

RGB+CCT / RGBCCT mode: can control RGBCCT LED strips, supports RGB colored lights + warm/cold white light control and dimming;
RGBW mode: supports RGBW LED strips and lamps with RGB colour lights + warm/cold white light control and dimming;
RGB mode: supports RGB colour lights + warm/cold white light control and dimming for RGB LED strips and lamps;
CCT mode: capable of white CCT (also known as CW/WW) LED colour temperature (cool-warm white light) control and dimming; or even other two-colour LED colour mixing (up to 2 CCT LED strips can be connected);
Dimmer mode: it can control the brightness of white or other single-colour LED strips (up to 5 single-colour LED strips can be controlled).

Zigbee LED control modes and wiring diagrams:

At the link below, you can access our sales support materials for individual products.
Available documents are organized by manufacturer in folders on Google Drive.

COPYRIGHT

The content of this website (texts, images, animations, videos) is the property of the website operator and is protected by copyright law.
No content from the website may be used without the owner’s prior consent.

This content is only available to logged in users.

Data

Weight:

64 g/pcs
