Flexi-Rail W universal DIN rail adapter, with Wago holder

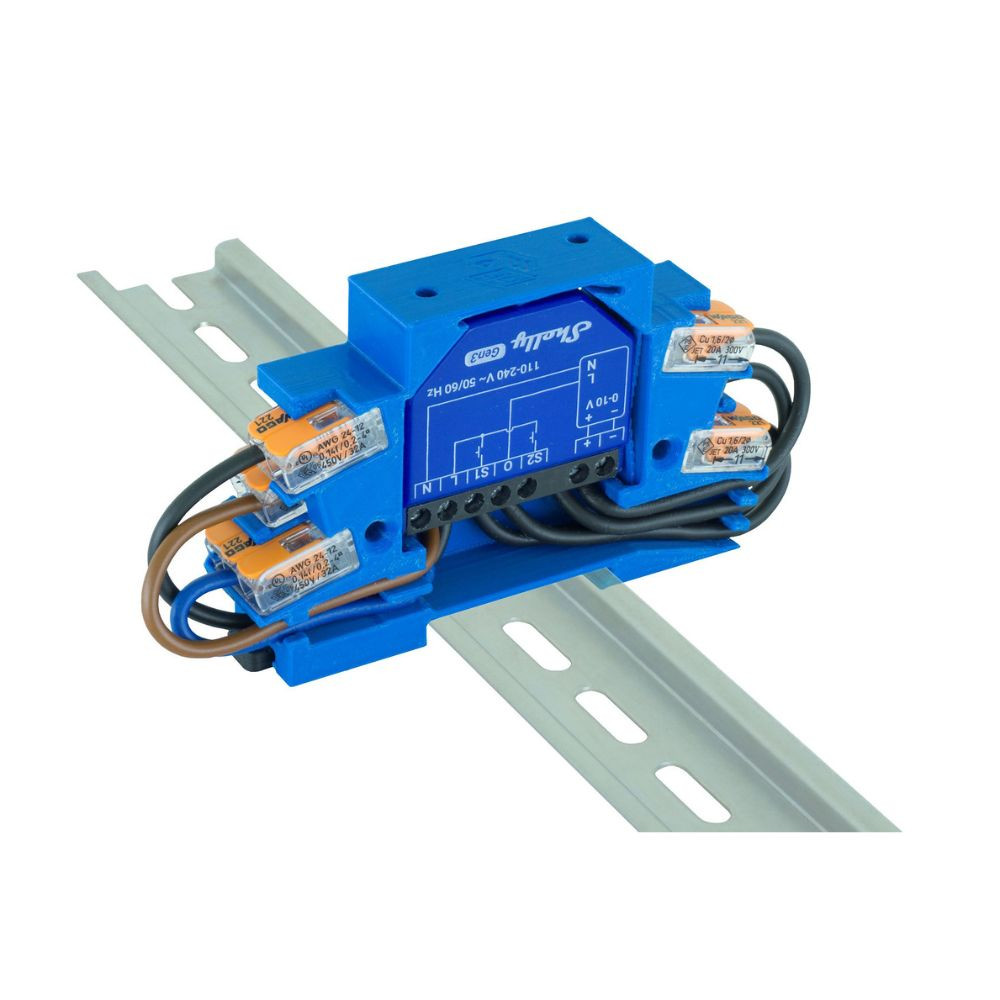

The Flexi-Rail W adapter is a compact and universal DIN-rail adapter for many retrofit relays, including several types of Shelly, Nous and Gledopto relay modules. This simplifies and speeds up the installation process of the relays into an electric cabinet with DIN-rail, while minimizing the risk of losing parts. In addition, it features practical side holders where WAGO connectors used for wiring can be securely placed.

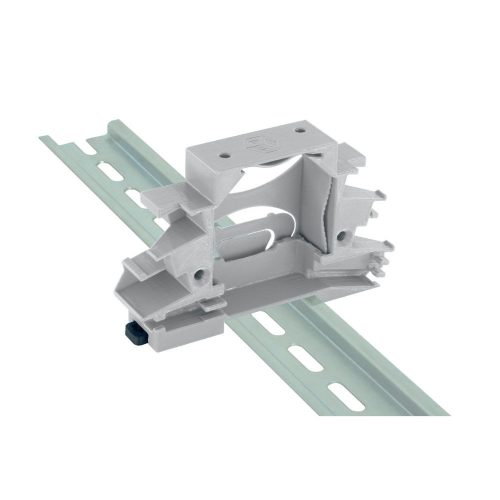

The holder is a perfect solution for mounting on a standard 35 mm DIN rail, but it can also be attached to a wall or any flat surface using the two mounting holes. Made in Germany from flame-retardant PETG material using FDM technology.

Key Product Features

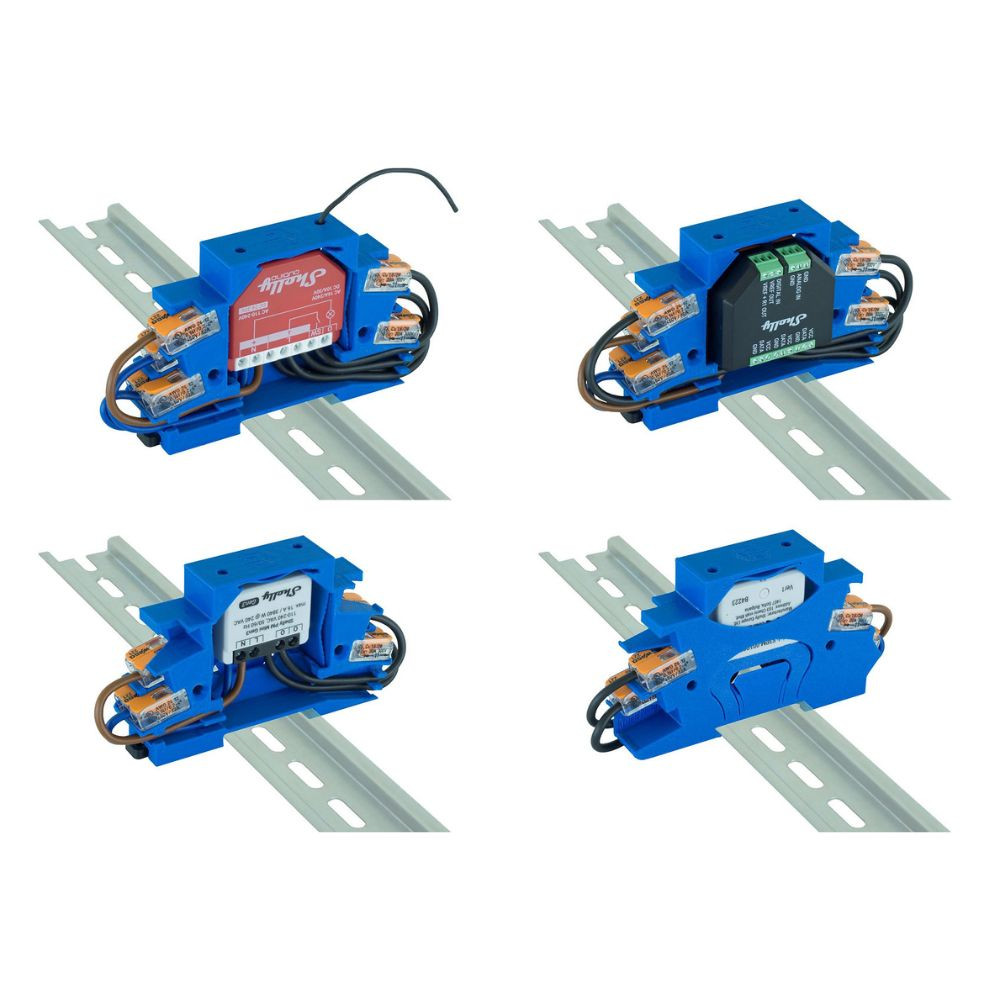

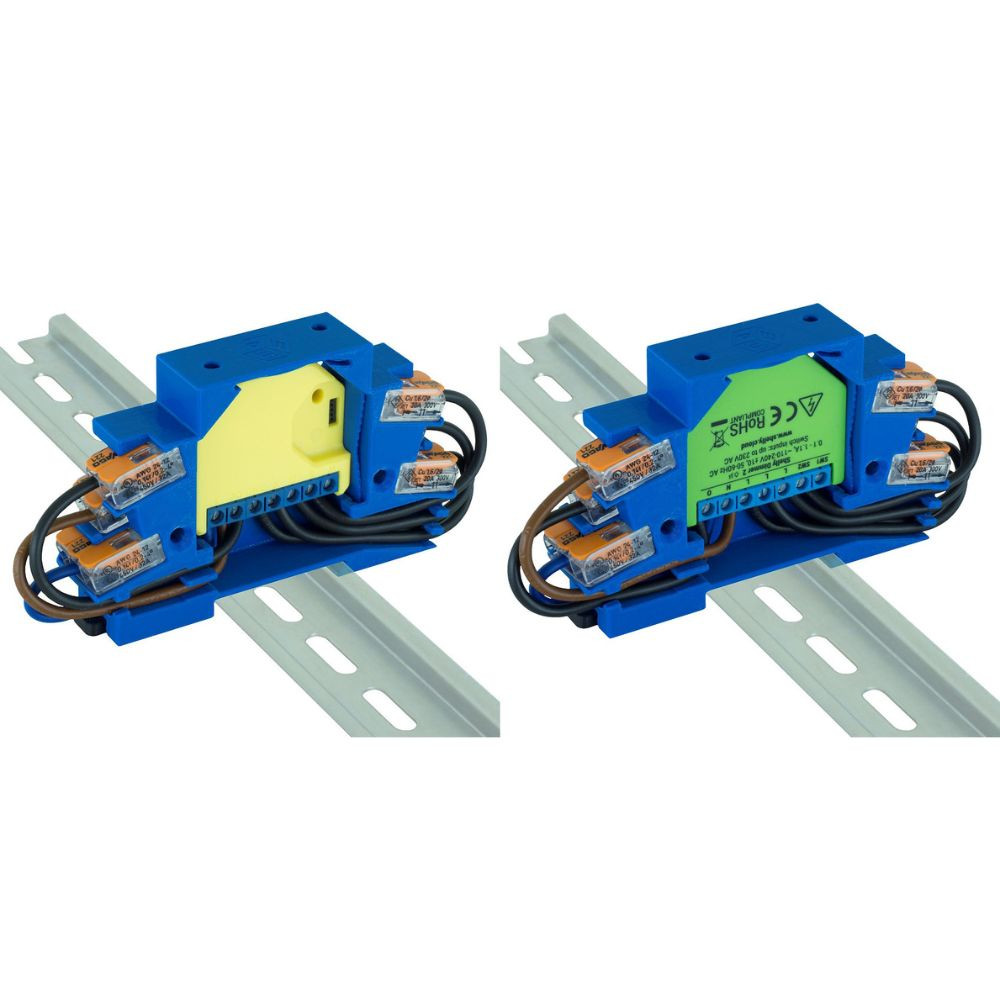

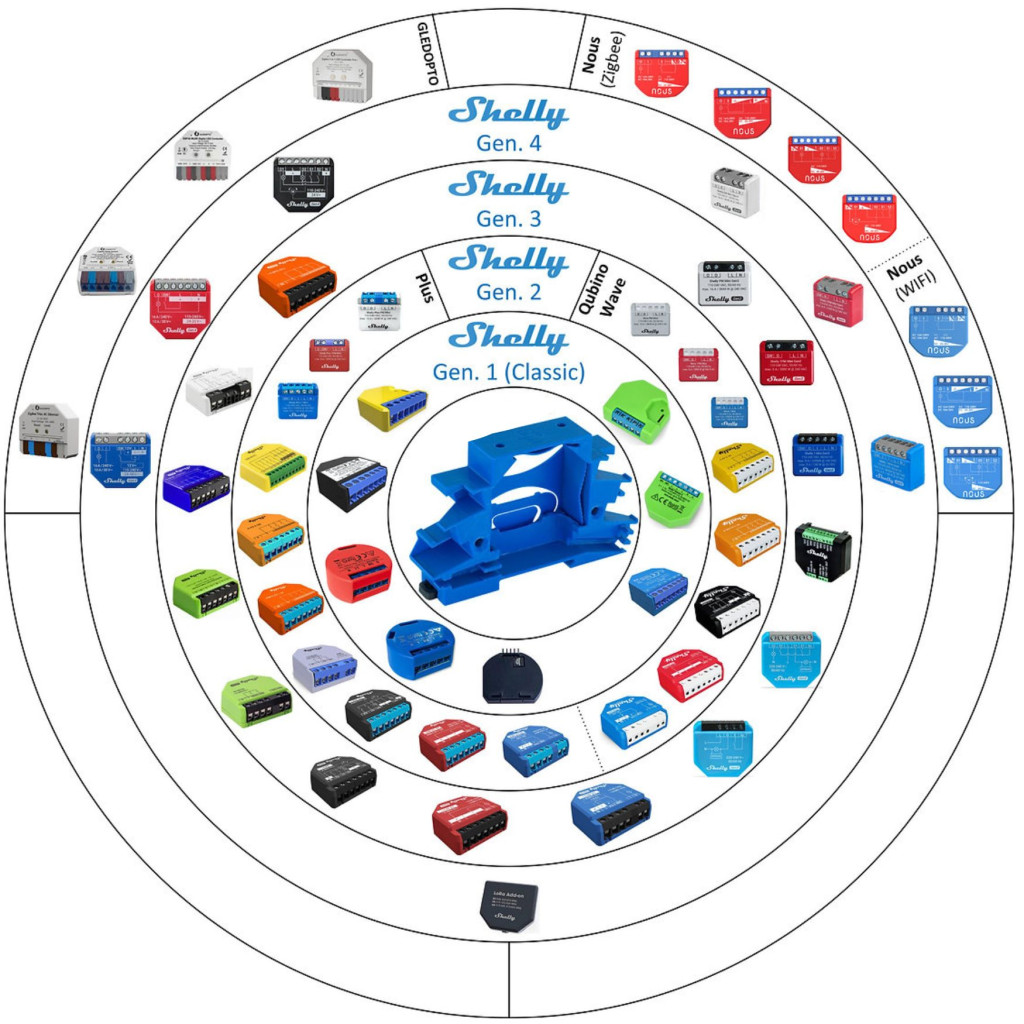

• Universal compatibility: Compatible with all retrofit Shelly modules – including Gen1 (Shelly 1, 2.5, RGBW2, Dimmer) and newer (Gen2 - Plus, Gen3, Wave, Gen4 and Mini) models. Also compatible with GLEDOPTO relays – e.g. GL-C-309WL, GL-C-310WL – and Nous Wi-Fi and Zigbee retrofit relays: e.g. B1T, B2T, B3T, B1Z, B2Z, B3Z, B4Z.
• One-piece design: No separate adapter needed, making installation easier and cleaner.
• DIN rail and wall mountable: Mountable on standard 35 mm DIN rail or flat surfaces using two screws.
• Made in Germany: Manufactured from PETG material using FDM technology with DASFILAMENT base material.
• Flame retardant: rated B1.
• Label-friendly: The front surface is designed for applying labels or identifiers.
• Patented design: Registered patent protection by the German Patent and Trademark Office (DPMA).
• Extra space for wiring and terminal blocks: Ample room for any type of connection, even with ferrule-tipped wires, ensuring wires won’t bend or break.
• Integrated cutouts and fixing tabs: Secure and optimal placement of connection wires.
• Side-mounted Wago terminal block slots: Supports up to 7 pcs of 221-412, or 6 pcs of 221-412 + 1 pc of 221-413 Wago connectors.
• Compact size: Only slightly wider than a single DIN module (approx. 19.6 mm).
• Accessible connection points: The external terminal blocks remain openable even after mounting on the DIN rail.
• Note: Wago terminal blocks are not included in the package.

Additional Features

• Easy installation and simple handling thanks to the one-piece design.
• Improved visual organization: available in labelable and color-coded versions.
• Mountable on DIN rails or flat surfaces with ease.
• Ideal choice for both professional and home smart home installations.
