Aqara Smoke Zigbee 3.0 smart wireless smoke sensor (SD-S01D)

Product Description

The Aqara Smoke Detector can function independently (with sound and light signals), but for full functionality, a gateway with Zigbee 3.0 communication is required. This product operates as a photoelectric smoke detector, detecting the formation of fire by sensing smoke at an early stage. When the smoke concentration reaches the preset threshold, the device triggers a sound and light alarm. It also sends a notification to the Aqara app via the gateway. To use the device, a Aqara Zigbee 3.0 hub is required. For Apple HomeKit integration, a compatible Aqara hub is needed.

Main Features

• Zigbee 3.0 communication
• Battery life of up to 10 years
• Sensor grouping: If any sensor in the group detects smoke, all smoke detectors in the group will alarm.
• Sound alarm: Powerful alert in case of smoke detection.
• Indicator lights:
  Normal operation: Green light blinks every 56 seconds
  Alarm: Red light flashes every second, accompanied by a sound alarm.
  Error: Yellow light blinks three times every 48 seconds with three beeps.
  Low battery: Yellow light blinks once every 48 seconds with one beep.

Test and Silence

• Press the button quickly three times to reset to factory settings.
• Press the button once to silence the alarm.
• Press and hold the button for 3 seconds to initiate self-test.

Quick Setup in Aqara Environment

1. Download the Aqara Home app and connect the Aqara Zigbee 3.0 hub.
2. Insert the supplied battery into the detector.
3. In the app, select the “Smoke Detector” option, then quickly press the device button three times. After successful pairing, you can configure the device.
4. If pairing fails, move the detector closer to the hub and try again.

Installation Instructions

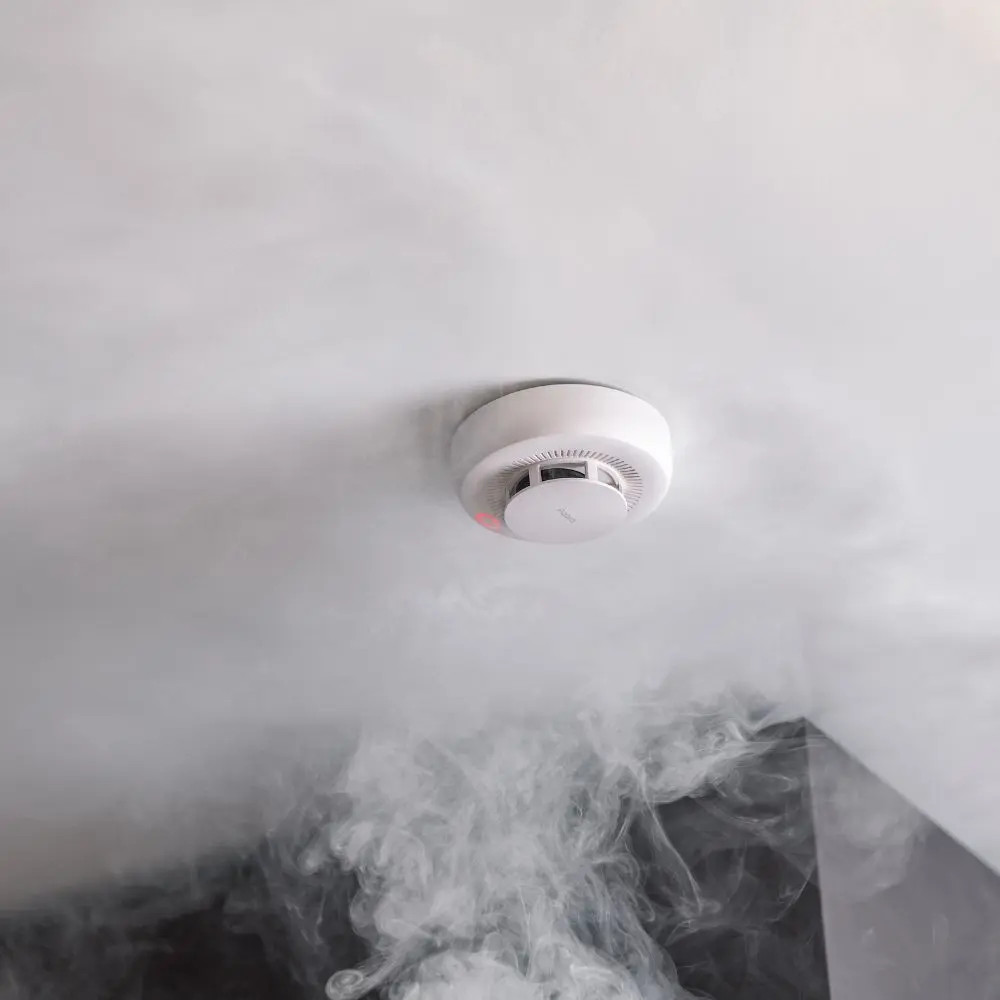

• Install the smoke detector on the ceiling of each independent room, at least 0.5 meters away from walls or corners.
• Do not place the detector in the kitchen, bathroom, dusty, or humid areas, or near air conditioners.
• For new buildings, install the detector after renovation work is completed.
• If ceiling installation is not possible, install it on the longer side of the wall, at least 0.5 meters from the ceiling.

Device Status Indicators

• Normal operation: Green light blinks every 56 seconds.
• Alarm: Red light flashes every second, accompanied by a sound alarm.
• Error: Yellow light blinks three times every 48 seconds with three beeps.
• Low battery: Yellow light blinks once every 48 seconds with one beep.

Product Specifications

• Model: SD-S01E/SD-S01D
• Battery: CR17450 (3V)
• Wireless protocol: Zigbee (2405–2480 MHz)
• Operating temperature: 0°C ~ 40°C
• Operating humidity: 0–95% relative humidity, non-condensing
• Certifications: EN 14604:2005/AC:2008

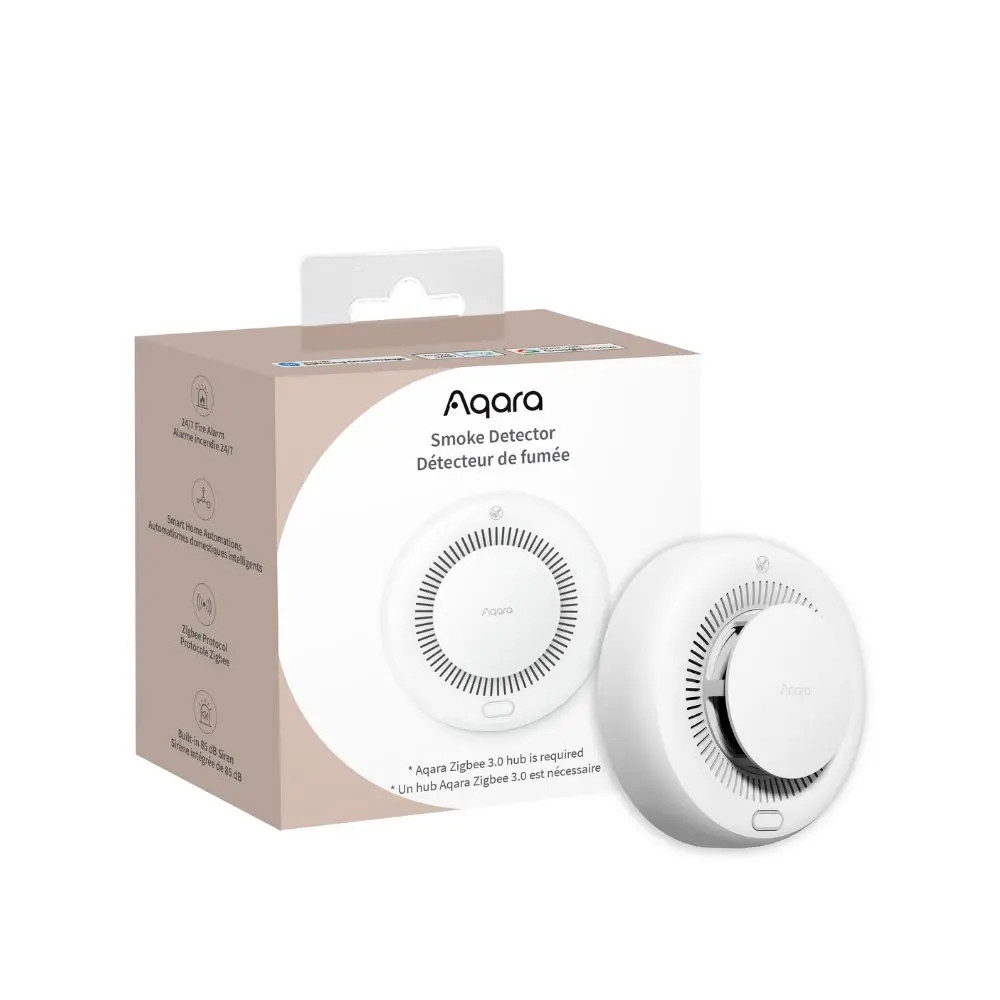

Package Contents

• Smoke Detector × 1
• Mounting Plate × 1
• Battery × 1
• Accessories × 1

Maintenance and Warnings

• Clean dust and debris from the device monthly with a dry cloth.
• Perform a self-test on the device monthly.
• Do not insert a different type of battery into the device, as it may cause an explosion hazard.

The Aqara Smoke Detector provides reliable protection for detecting early-stage fires in your home and is compatible with smart home systems, such as Apple HomeKit and the Aqara Home app.
