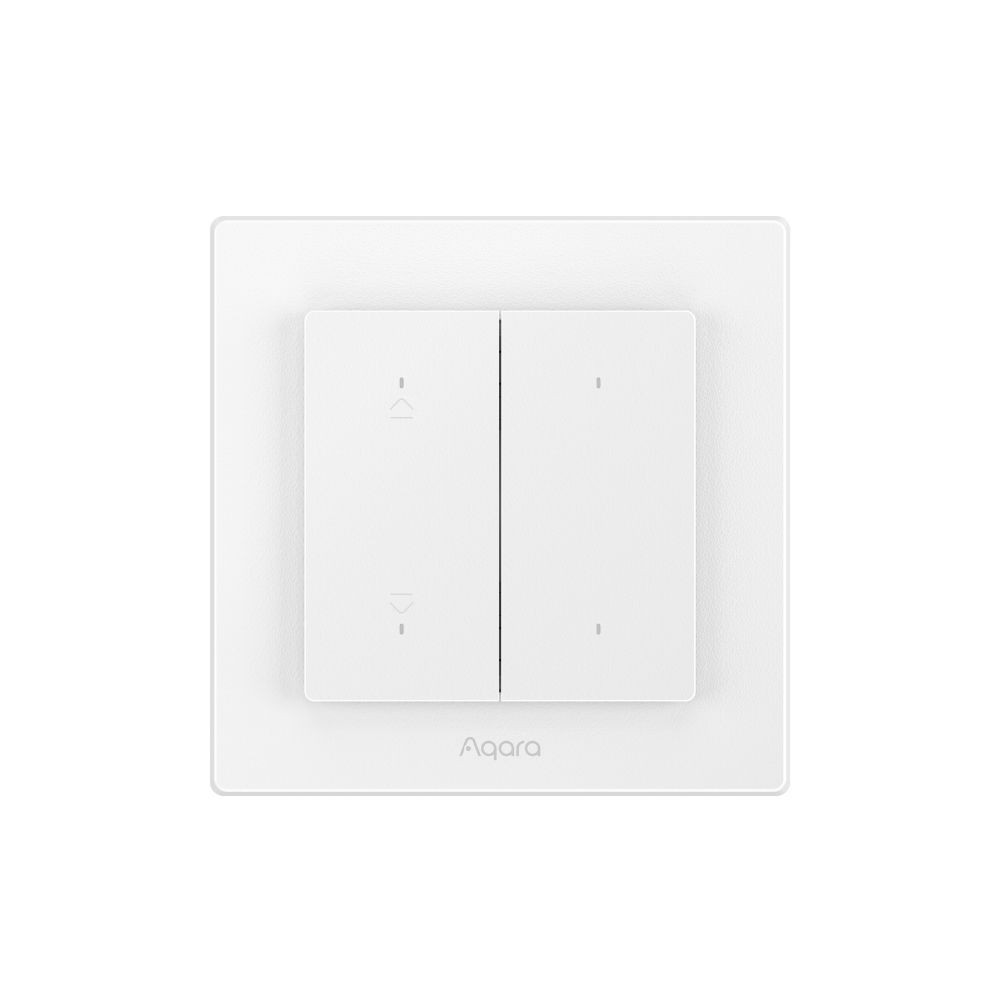

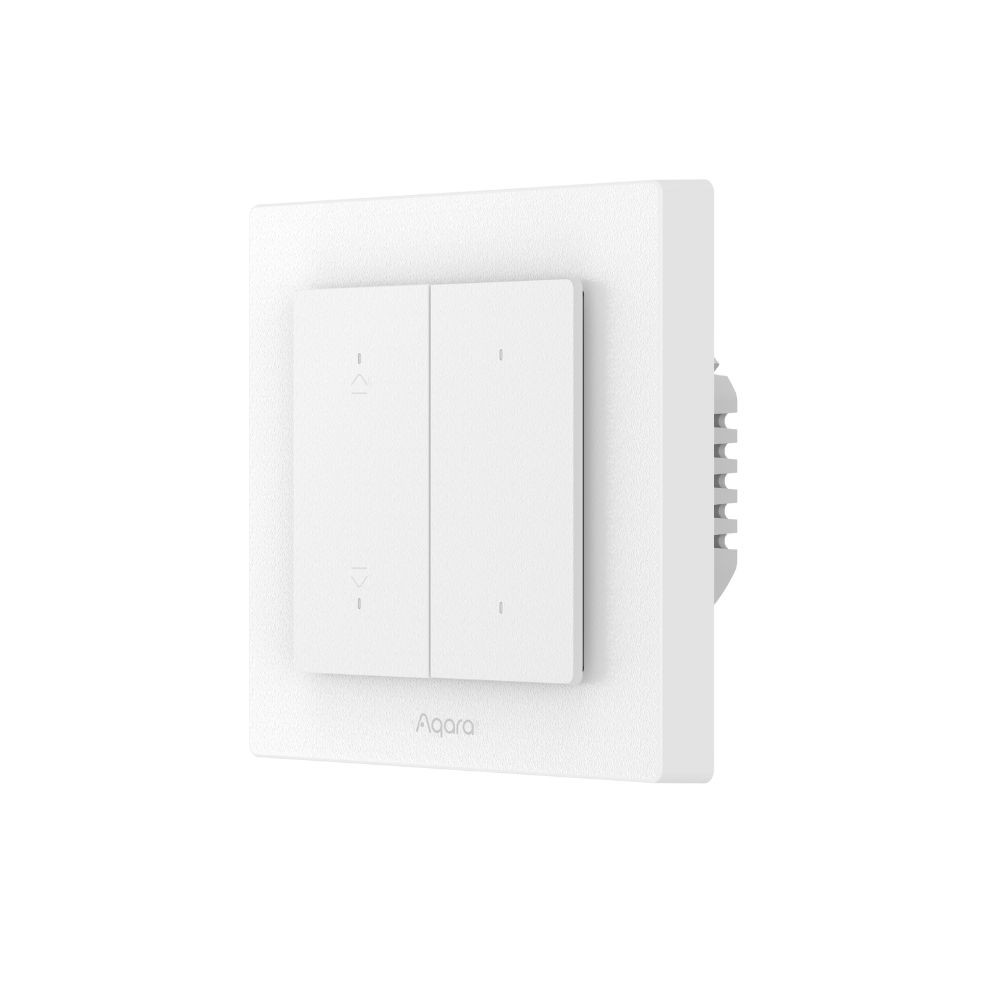

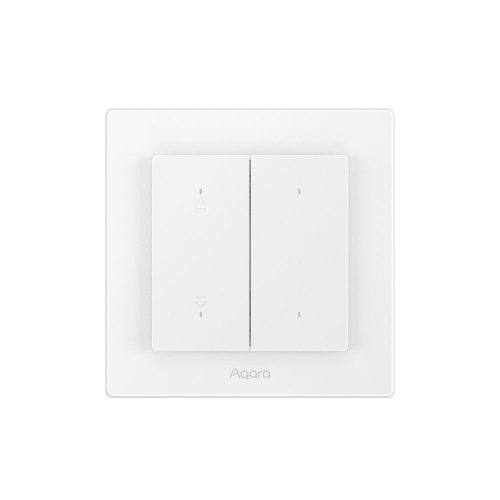

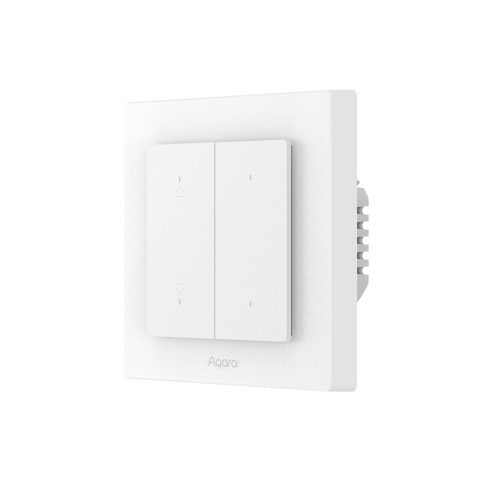

Aqara H2 Shutter Switch EU, Zigbee + Thread roller shutter wall switch, white/grey (DS-K02D)

Aqara Shutter Switch H2 EU (DS-K02D)

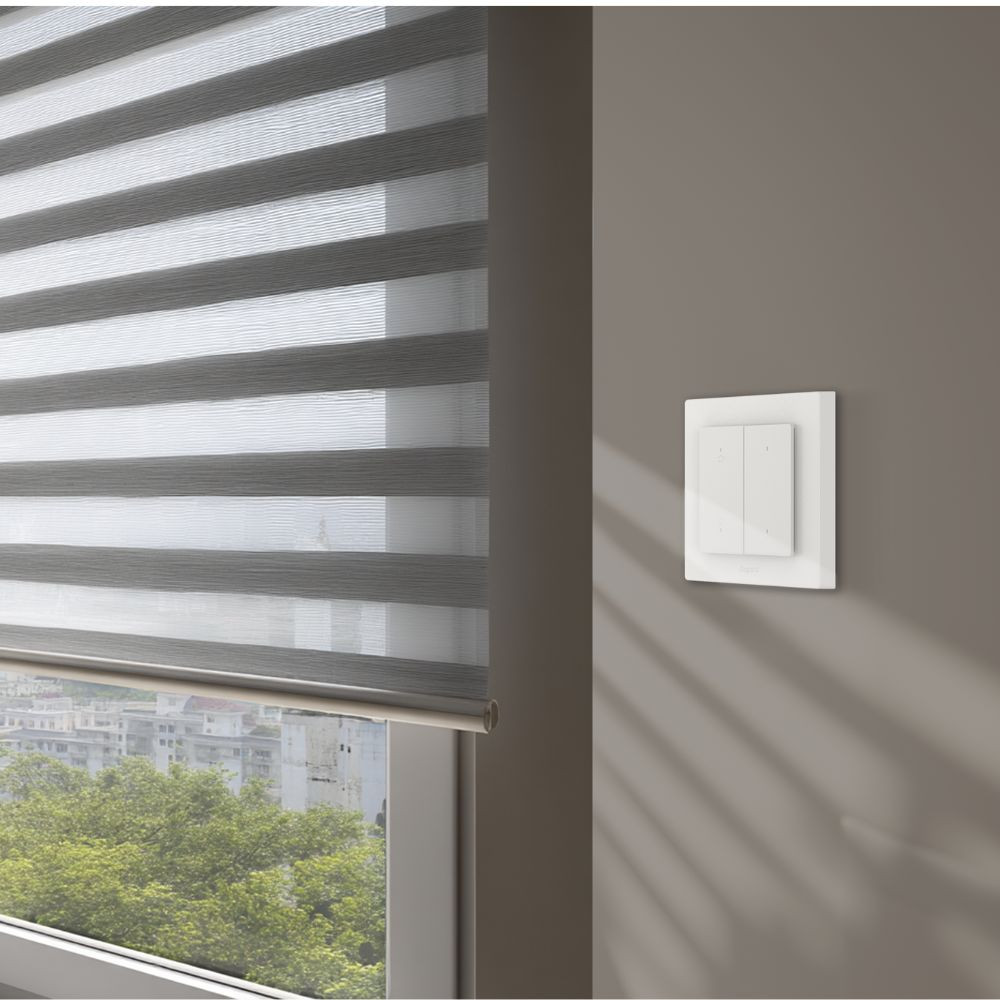

The Aqara Shutter Switch H2 EU (DS-K02D) is a smart wall switch specifically designed for controlling roller blinds, shutters, venetian blinds, and similar devices. Supporting both Thread and zigbee protocols, it integrates seamlessly with various smart home platforms. The intuitive buttons on the left side allow for opening, closing, or stopping the blind, while the customizable wireless buttons on the right side provide expanded automation capabilities.

One of its key features is dual support for Thread and zigbee: in Thread mode, it can connect to Matter ecosystems without a hub, while in zigbee mode, it offers exclusive Aqara functionalities and backward compatibility with existing Aqara zigbee hubs. With precise 1–100% control, users can customize the level of sunlight entering their space. Smart and custom calibration modes ensure accurate and long-term stable movement. A discreet LED indicator lights up only during operation, ensuring it doesn't disturb sleep at night. Thanks to support for 55 mm mounting boxes (e.g., Gira System 55 or Merten M), it can be universally installed across the EU.

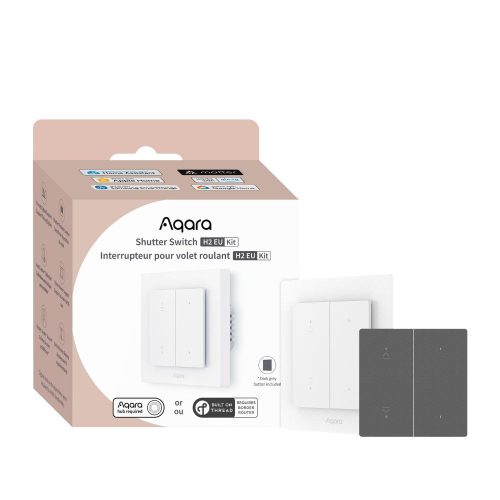

The switch comes with white frame, and both white and grey buttons to choose from.

About Aqara

Aqara is a well-known brand in the smart home world, offering sensors, switches, controllers, and hubs. Its products are compatible with Apple HomeKit, Google Home, Amazon Alexa, SmartThings, and other platforms. Thanks to support for Thread and zigbee, they can be integrated into various automated systems.

Main Product Features

• Thread/zigbee support – Dual protocol: connect to Matter platforms without a hub in Thread mode, or access exclusive Aqara features in zigbee mode.
• 1–100% precise position control – Control the exact position of blinds via app, physical button, voice, or schedule.
• Smart and Custom Calibration – Refine blind movement with intelligent or manual settings; long-term precision with Route Recalibration.
• Wireless buttons – Right-side buttons can be customized for scenes or automations.
• Discreet LED indicator – Lights up only during operation, does not disturb at night.
• 55 mm frame compatibility – Fits standard EU switch frames (e.g., Gira System 55, Merten M).

Smart Home Protocols & Platform Compatibility

• Protocols: Thread, zigbee
• Local remote control: Wireless buttons on the right side support scene launching and remote control.
• Native platforms: Apple Home, Google Home, Amazon Alexa, SmartThings (Matter over Thread, zigbee)
• Matter compatibility: Yes; works with Matter ecosystems via Thread (e.g., Apple HomeKit, Google Home)
• Cloud integration: Aqara Home app and voice assistant support
• Other platforms: Home Assistant, etc., via Thread or zigbee
• Integration options: Extra features like calibration and route recalibration available via zigbee hub
• Voice control: Alexa, Google Assistant, Siri (via Matter)

Smart Features

• Remote blind control (open/close/stop) via app, switch, voice, or schedule
• Custom position setting from 1 to 100%
• Calibration modes: Smart and manual runtime adjustment
• Automations triggered by right-side buttons (e.g., open in the morning, custom routines)
• LED feedback only during operation with low brightness
• Create automations like partial opening at sunrise, closing based on heat or brightness levels, etc.

Electrical Specifications

• Power supply: 100–250 VAC, 50/60 Hz, max. 8 A
• Circuit: 1-gang control
• Power monitoring: Not specified (motor control, not lighting)
• Switch input: Mechanical push buttons for blind control

Additional Features

• Offers both entry-level and advanced features: precision control, calibration, dual-protocol flexibility

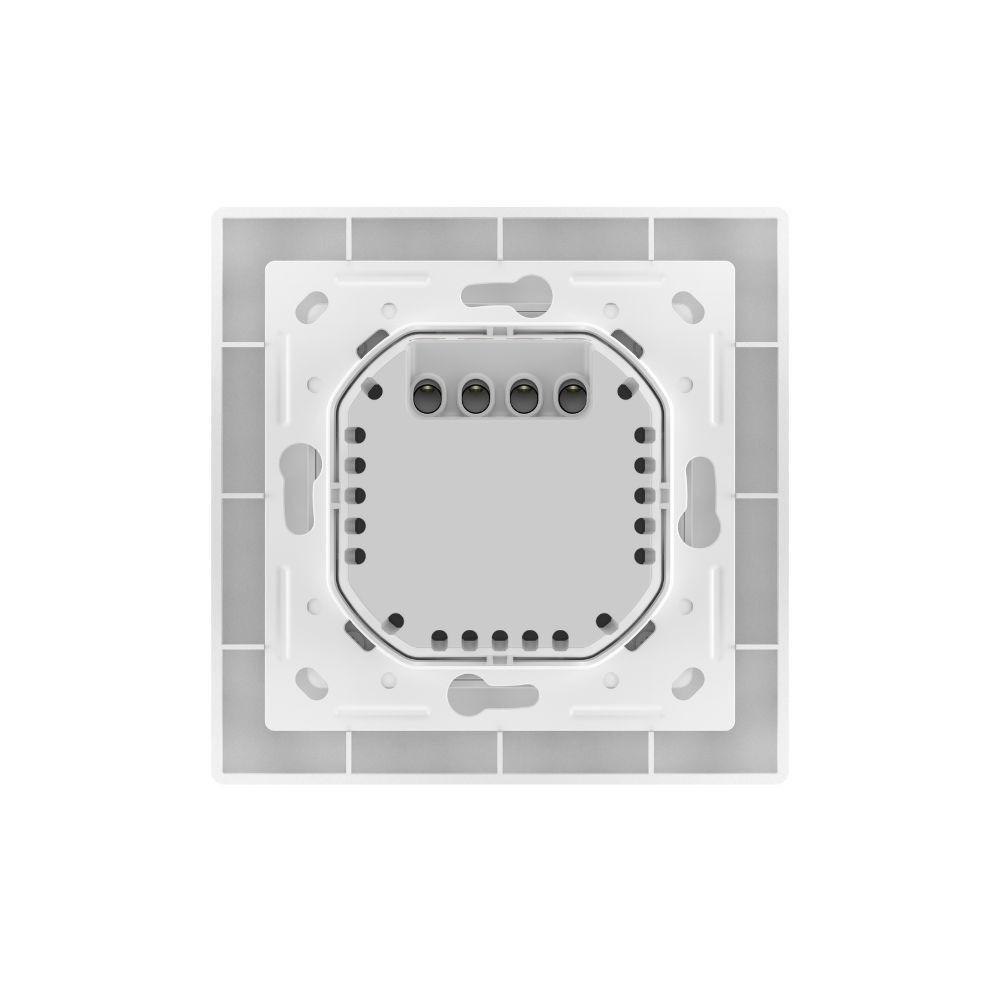

• Dimensions: 86 × 86 × 45 mm – fits standard wall boxes
• Plug & Play solution: Easy installation with standard wiring, quick setup
