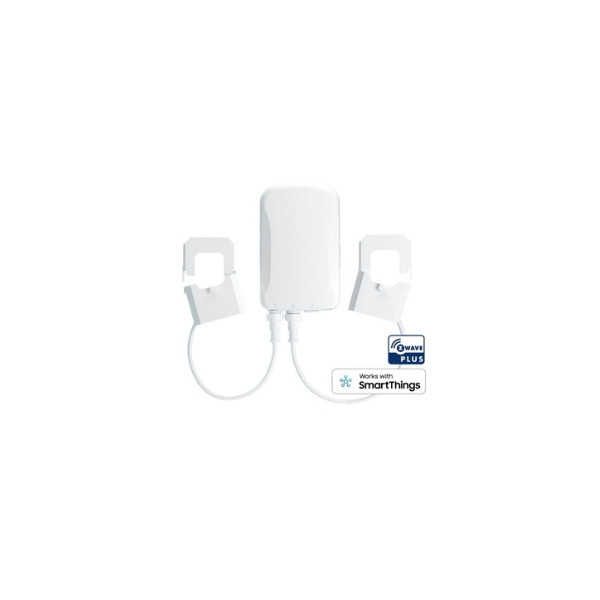

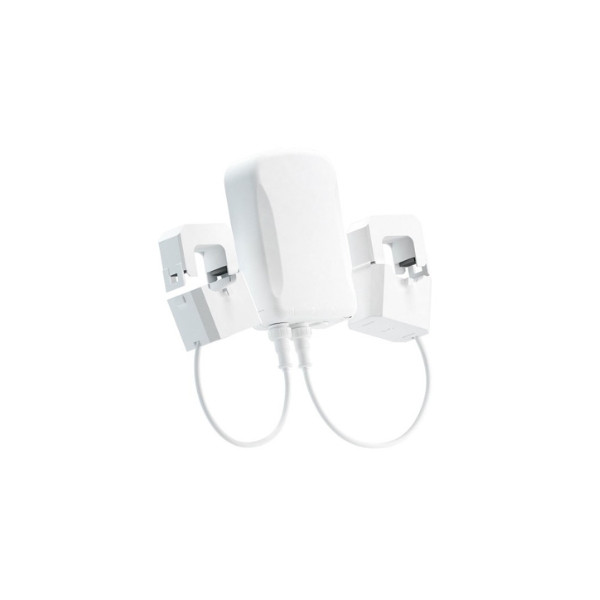

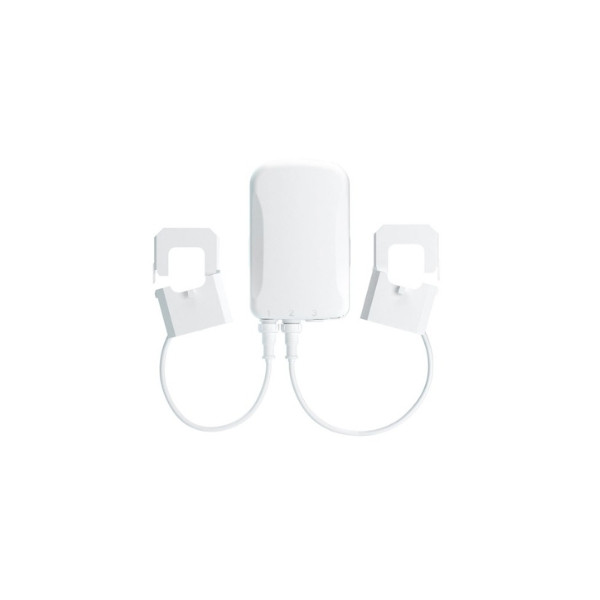

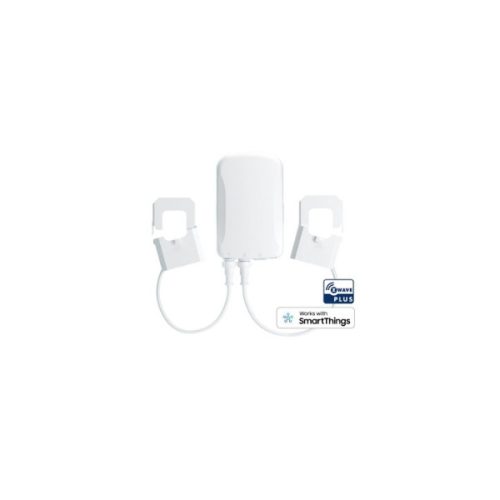

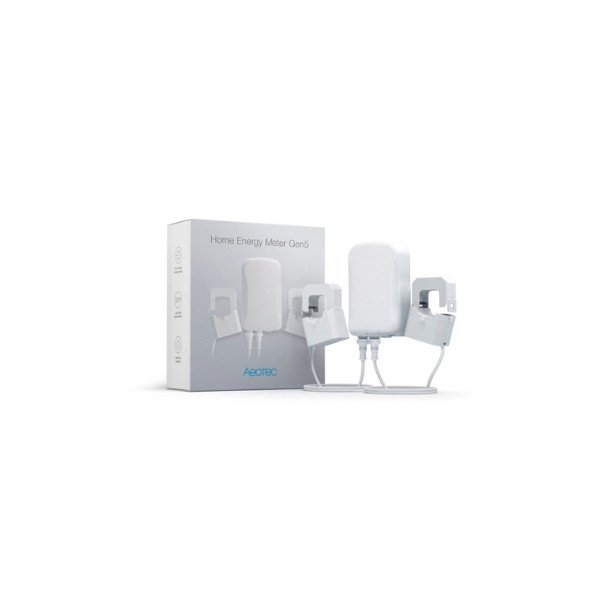

Aeotec Home Energy Meter, GEN5, three phase / three clamp, 3 x 60A,with Z-Wave protocol (ZW095C3A60)

• Details
• Data

Details

These days you hear a lot about saving energy. Everybody knows that if we reduce the amount of energy we use we are not only able to save money but we also protect the environment. However, saving money by using less electricity is only possible if we understand when and how we use it. The Aeotec's Z-Wave Home Energy Meter provides you the possibility to understand that.

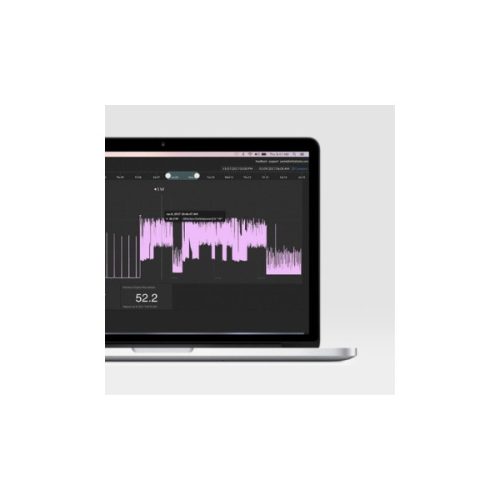

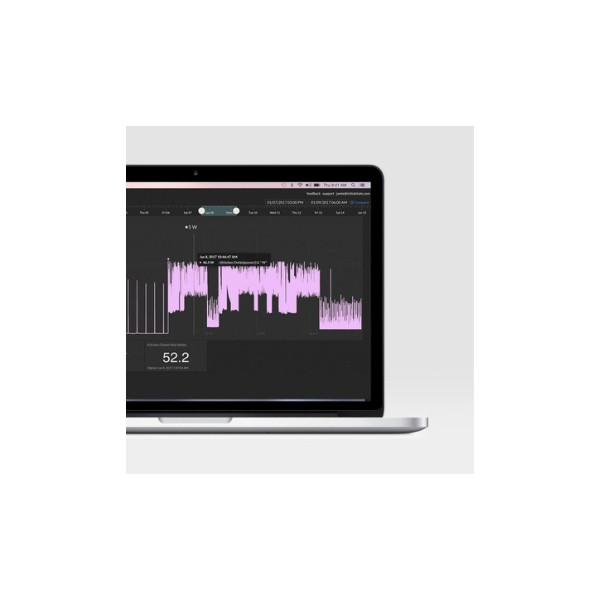

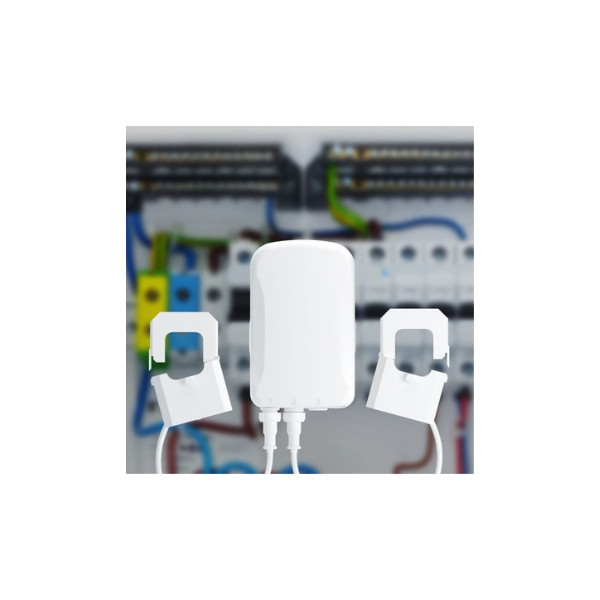

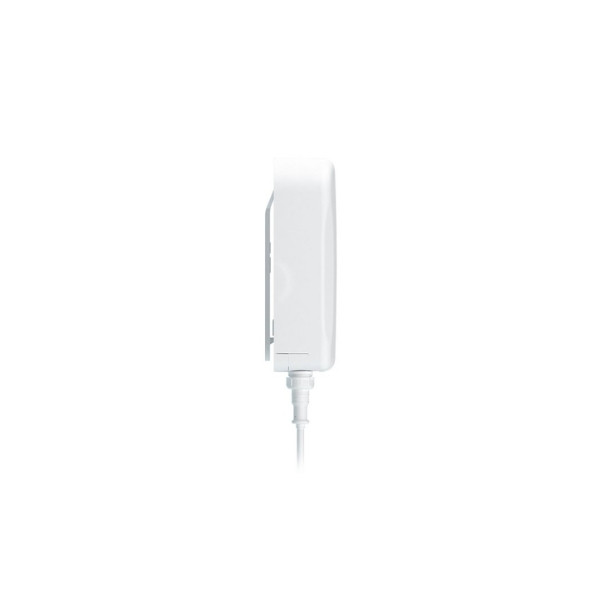

Installed in an electricity box, the energy meter will monitor the total consumption of electricity used by an entire building. Its intelligent clamps will report this energy use in watts or kilowatt-hours to your Z-Wave gateway or controller, in watts or kilowatt-hours. Almost in real time you can see how much electricity you really use and when you use it. The main body is anchored using a back mount. The device has three clamps and reports W and kWH (up to 60 Ampere).

Features:

Clamp meter for electricity box
3 phase meter for max. 60 A
Report in watts, kilowatt-hours and real time
Power: 90...260 VAC, 50/60 Hz
Measuring range of voltage: 220V~...260V~
Measuring range of current: 0...60A
Operating Temperature: 0°C...40°C
Protection Class: IP43 weatherporoof
Wireless Technology: Z-Wave Plus
Dimensions: 96 x 70 x 230 mm

At the link below, you can access our sales support materials for individual products.
Available documents are organized by manufacturer in folders on Google Drive.

PRODUCT IMAGES

USER MANUALS

CERTIFICATES

BULB ENERGY CLASSES

COPYRIGHT

The content of this website (texts, images, animations, videos) is the property of the website operator and is protected by copyright law.
No content from the website may be used without the owner’s prior consent.

This content is only available to logged in users.

Data

Weight:

690 g/pcs
